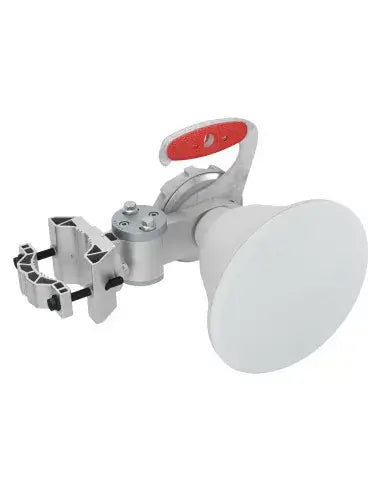

RF Elements 30° Wideband Symmetrical Horn Antenna

The RF Elements 30° Wideband Symmetrical Horn Antenna is engineered for exceptional performance in high-density environments. With advanced noise rejection capabilities and a robust design, it ensures reliable wireless connectivity for WISPs and other applications.

Features

• Wideband Performance: Covers both 5 GHz and 6 GHz unlicensed spectrum bands, enabling versatile applications.
• Symmetrical Beam Pattern: Provides a symmetrical beam with depressed sidelobes for excellent noise rejection.
• TwistPort™ Waveguide Connector: Facilitates direct connection to waveguide ported radios or adapts to common coaxial connectors for flexibility.
• Durable Construction: Made from UV resistant ABS plastic and aluminum, ensuring resilience against harsh outdoor conditions.
• Compact and Lightweight: Designed for low wind loading and minimal tower load, enhancing structural integrity.
• Easy Installation: Features an integrated handle and ergonomic design for straightforward deployment.
• High Gain: Offers a nominal gain of 18 dBi, enhancing signal strength and coverage.
• Environmental Protection: Rated IP65 for dust and water resistance, suitable for various environmental conditions.

Specifications

• Frequency Range: 4900 - 7125 MHz
• Gain: 18 dBi
• Azimuth Beam Width: -3 dB/-6 dB H 20°, V 20° / H 30°, V 30°
• Elevation Beam Width: -3 dB/-6 dB H 20°, V 20° / H 30°, V 30°
• Front-to-Back Ratio: 30 dB
• VSWR: Check online SpecCheck for detailed performance
• Polarization: Dual Linear H + V
• Impedance: 50 Ohm
• Wind Survival: 160 km/h
• Temperature Range: -35°C to +60°C
• Weight: 2.3 kg
• Dimensions: 373 x 236 x 258 mm
