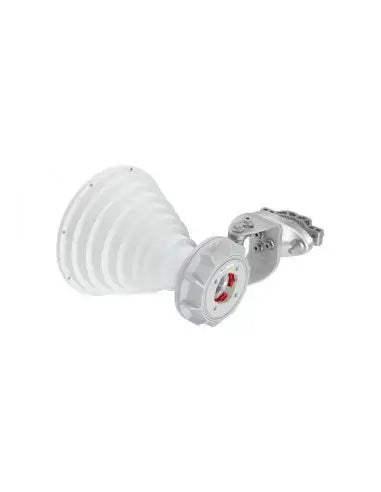

RF Elements 30° Symmetrical Horn Antenna - GEN2

The RF Elements 30° Symmetrical Horn Antenna - GEN2 is designed to provide exceptional performance in wireless networking. Featuring a unique symmetrical beam pattern and the innovative TwistPort™ connector, this antenna ensures high efficiency and scalability for wireless internet service providers (WISPs). With its noise-rejecting capabilities and robust construction, it is a reliable choice for enhancing network performance.

Features

• Symmetrical Beam Pattern: Delivers a uniform radiation pattern, ensuring consistent performance across the coverage area.
• TwistPort™ Connector: A patent-pending quick-locking waveguide port that offers a virtually lossless connection, simplifying installation.
• Noise Rejection: Significantly reduces interference by focusing energy into a single main signal beam, enhancing spectrum efficiency.
• Wide Frequency Range: Operates within 5180 - 6400 MHz, making it suitable for various wireless applications.
• High Gain: Offers an impressive gain of 18.4 dBi, boosting signal strength and coverage.
• Robust Design: Constructed from durable materials, ensuring longevity and weather resistance.
• Easy Installation: Comes pre-assembled and requires minimal tools for setup.

Specifications

• Frequency Range: 5180 - 6400 MHz
• Gain: 18.4 dBi
• Azimuth Beam Width: -3 dB: H 21° / V 21°
• Elevation Beam Width: -3 dB: H 21° / V 21°
• Front-to-Back Ratio: 37 dB
• Mechanical Tilt: ± 25°
• Environmental Rating: IP55
• Temperature Range: -30°C to +55°C
• Wind Survival: 160 km/hour
• Pole Mounting Diameter: 30-90 mm
