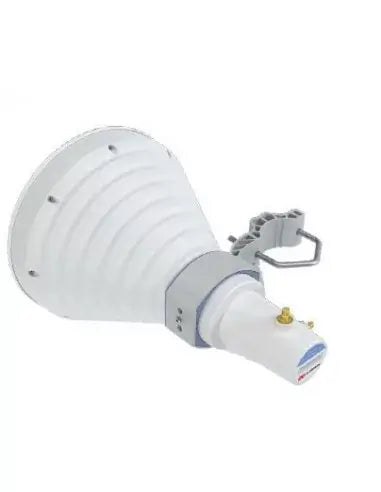

RF Elements 30° StarterHorn™ Antenna - SMA

The RF Elements 30° StarterHorn™ Antenna is designed for high-density wireless networks, providing a symmetrical beam pattern with no side lobes for excellent performance and noise rejection. Ideal for wireless internet service providers (WISPs) looking to enhance their connectivity and customer satisfaction.

Features

• Symmetrical Beam Pattern: Offers a consistent radiation pattern with no side lobes, ensuring efficient use of the spectrum.
• Excellent Noise Rejection: Designed to minimize interference in high-density access point clusters, enhancing overall network performance.
• RP-SMA Connector: Compatible with a wide range of radios, allowing for easy integration with existing equipment.
• Waveguide Connector Compatibility: Supports Ubiquiti radios, enabling flexible connectivity options.
• High Beam Efficiency: Achieves a Beam Efficiency (BE) of 92%, significantly reducing side lobe interference compared to traditional antennas.
• Durable Construction: Made from lightweight aluminum, ensuring longevity and ease of installation.
• Easy Assembly: Simplifies the installation process for technicians, making it suitable for various deployment scenarios.

Specifications

• Dimensions: 261 x 214 x 301 mm
• Weight: 1.3 kg
• Beam Width: 30° at -6dB in both azimuth and elevation
• Connector Type: RP-SMA female
• Frequency Range: 5150 - 5950 MHz
• Gain: 18 dBi
• Environmental: IP55
• Temperature: -30°C to +55°C (-22°F to +131°F)
• Wind Survival: 160 km/hour
• Wind Loading: 23 N at 160km/hour
