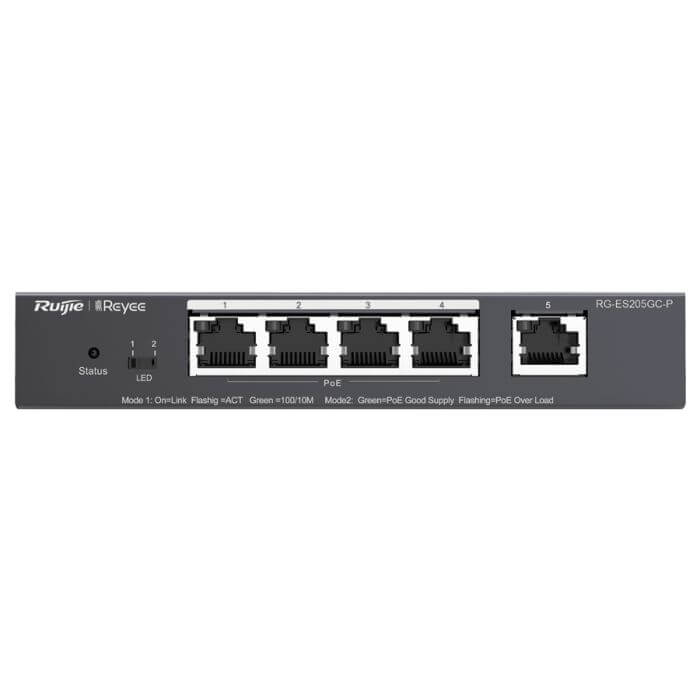

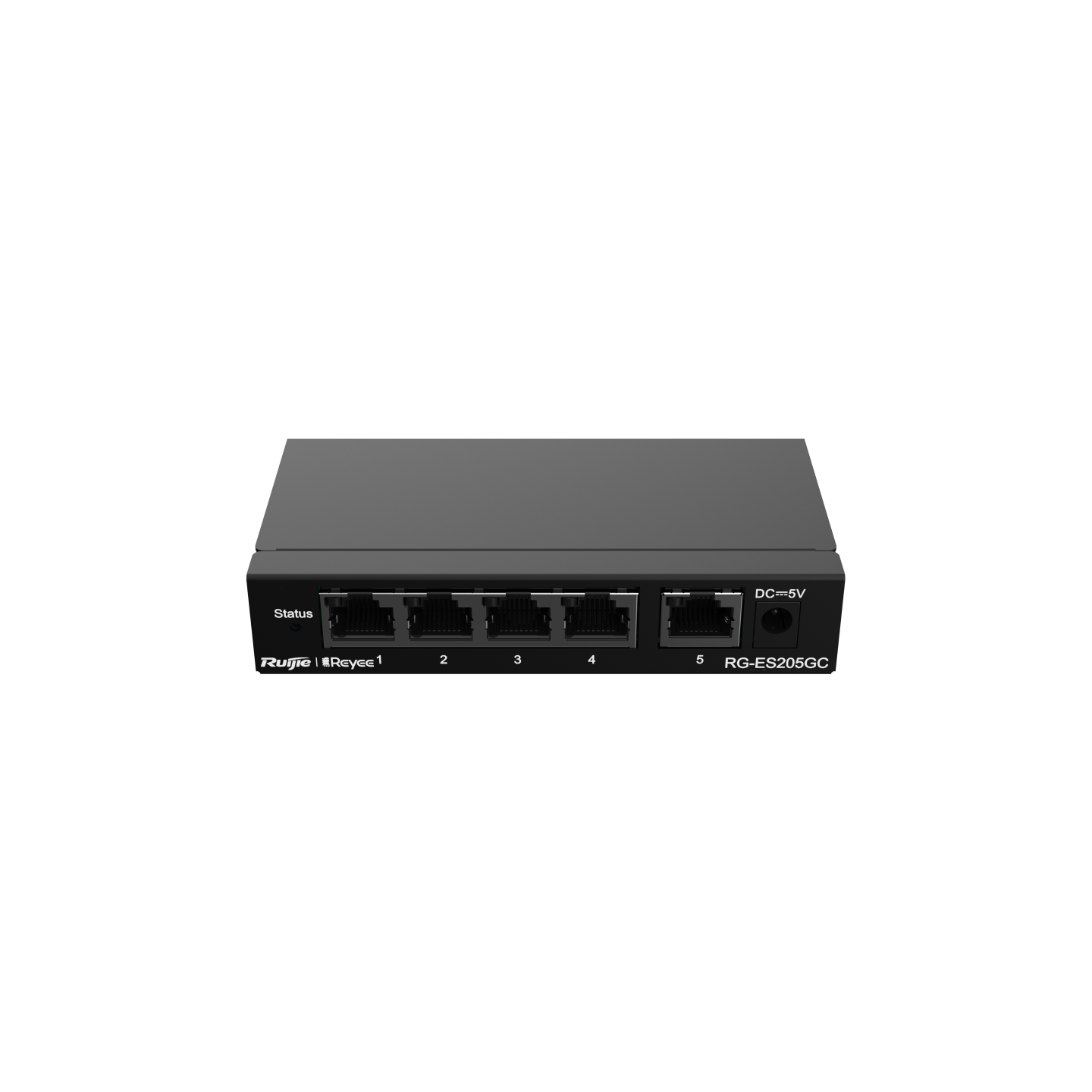

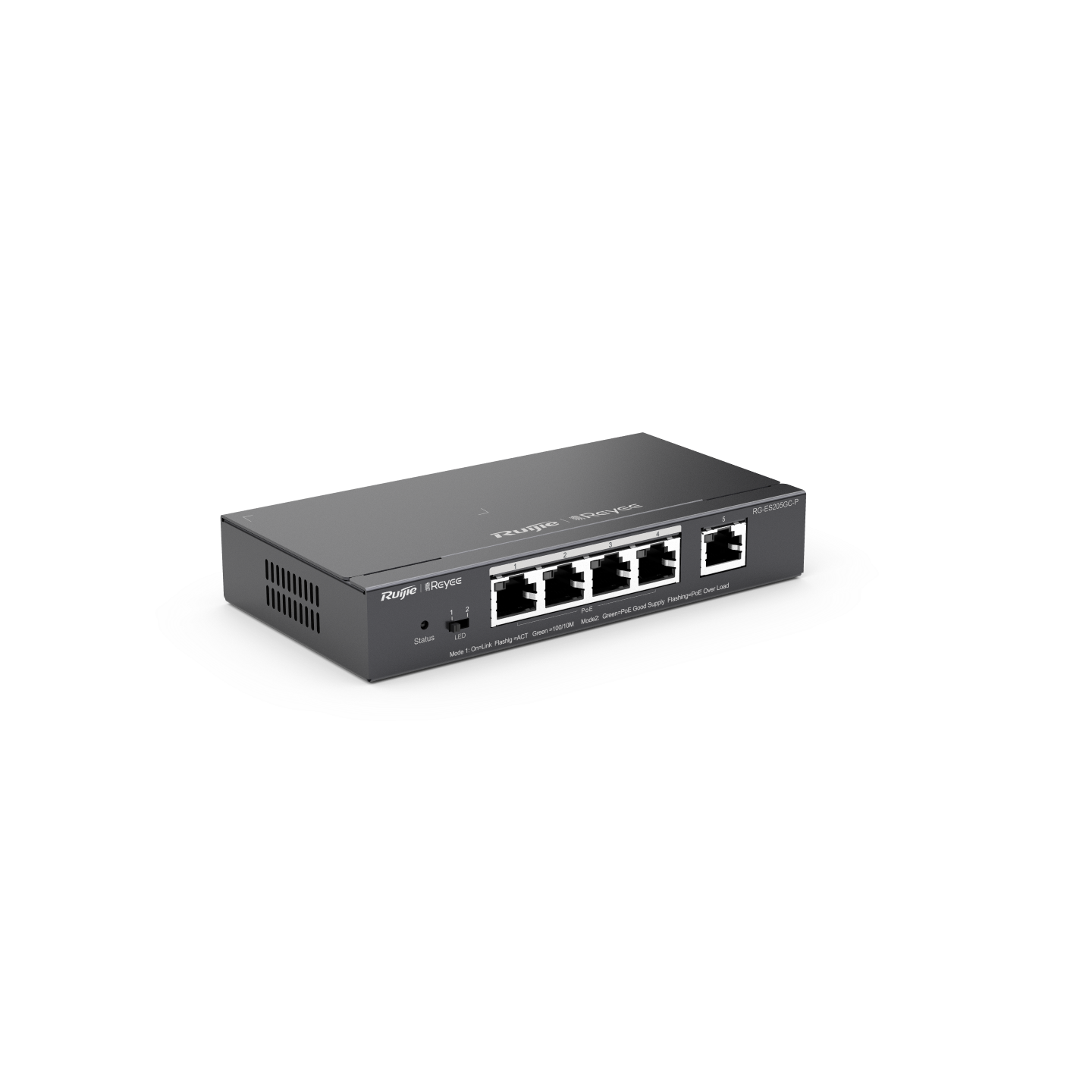

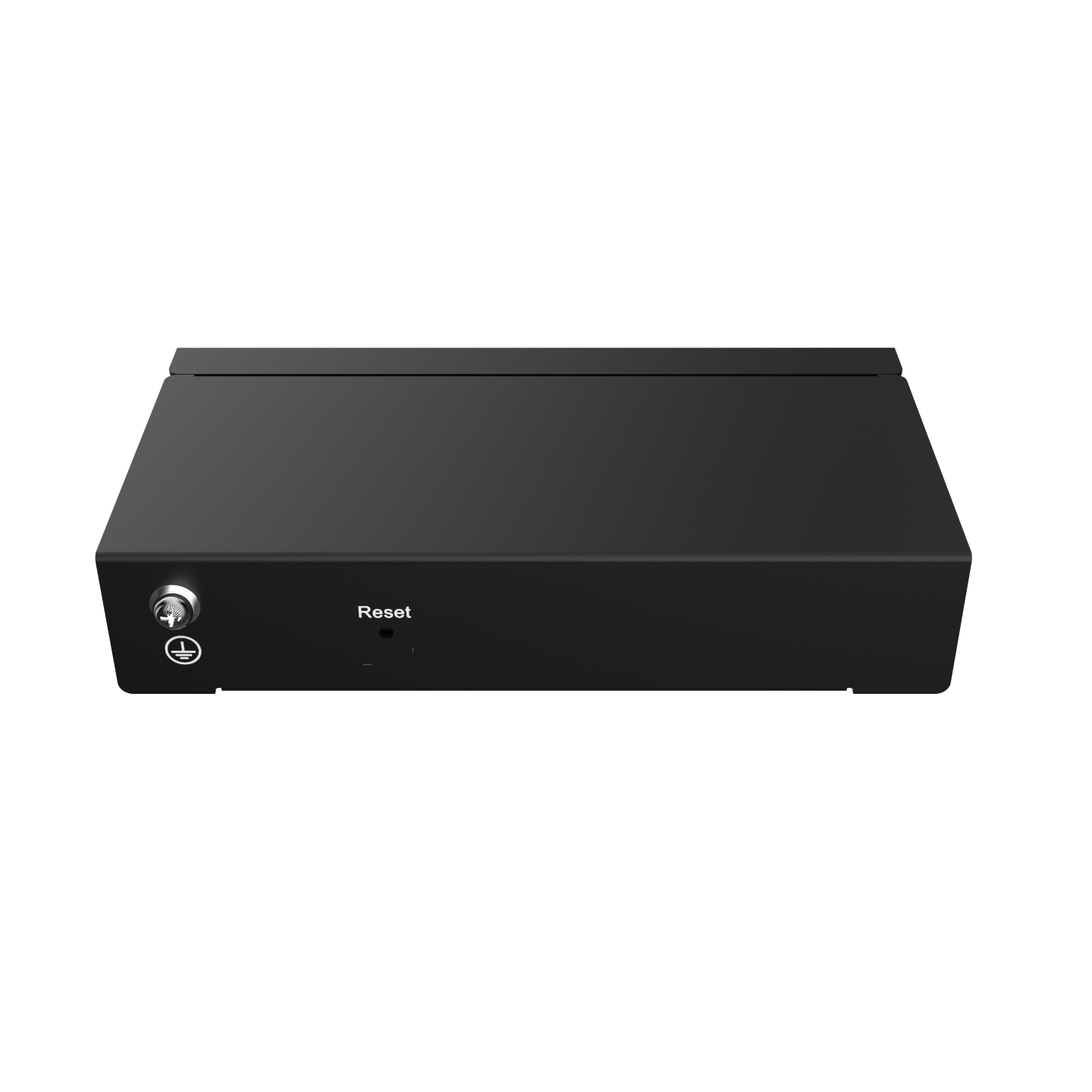

Reyee 5-Port Gigabit PoE Smart Managed Switch - 54W

The Reyee RG-ES205GC-P is a 5-port Gigabit smart managed switch designed for efficient networking and power delivery, featuring 4 PoE+ ports with a total power budget of 54W. Ideal for small-scale CCTV installations, it supports IP camera recognition and automatic loop prevention for uninterrupted service.

Features

• 5 Gigabit Ports: Provides high-speed connectivity for network devices.
• 4 PoE+ Ports: Delivers power over Ethernet, simplifying installation and reducing cable clutter.
• 54W Power Budget: Ensures sufficient power for connected devices.
• Automatic Loop Prevention: Protects the network from broadcast storms and ensures continuous service.
• IP Camera Recognition: Optimized for CCTV installations, allowing for seamless integration.
• Cloud Management: Supports remote management via Ruijie Cloud, enabling easy monitoring and maintenance.
• Fanless Design: Operates quietly, making it suitable for office and home environments.

Specifications

• Ports: 5 x 10/100/1000Base-T
• PoE/PoE+ Ports: 4
• Max. PoE Budget: 54W
• Layer Type: Layer 2
• Switching Capacity: 10 Gbps
• Forwarding Rate: 7.44 Mpps
• MAC Address Table: 2000
• Maximum VLAN Support: 16
• Dimensions (W x D x H): 148 mm x 78 mm x 26 mm
• Weight: 0.9 kg
• MTBF: > 200,000 hours
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH
• Storage Humidity: 5% to 95% RH
• Port Surge Protection: 4 kV
