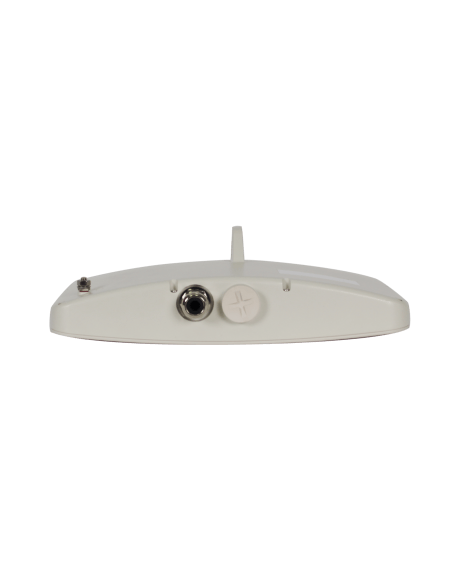

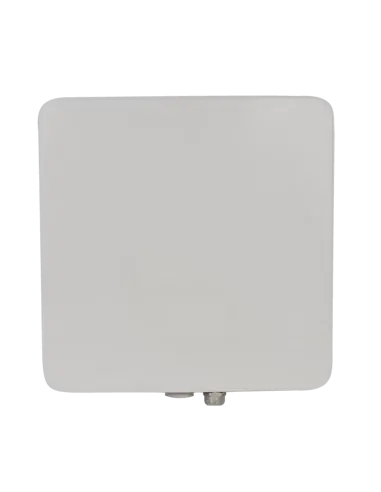

Radwin JET AIR DUO Base Station - 5GHz, 1500Mbps

The Radwin JET AIR DUO is a cutting-edge base station designed for high-performance wireless connectivity. Operating in the 5GHz band, it delivers speeds of up to 1500Mbps, making it an ideal solution for Internet Service Providers (ISPs) and Wireless Internet Service Providers (WISPs) seeking to provide reliable, fibre-like connectivity in challenging environments.

Features

• Dual Carrier Technology: Encapsulates dual 5GHz radio carriers into a single unit to deliver 1.5Gbps over a 90° sector.
• Second Generation Beamforming: Utilizes advanced beamforming technology with a 15-degree azimuth beamwidth, allowing for precise steering over a 90-degree sector.
• Built-in GPS: Features integrated GPS for accurate synchronization and improved network performance.
• Flexible Frequency Range: Operates across a frequency range of 4.9 GHz to 6 GHz, accommodating various deployment scenarios.
• Ethernet and SFP Ports: Equipped with both Ethernet and SFP interfaces for versatile connectivity options.
• Carrier-Grade Reliability: Offers 99.999% uptime SLAs, ensuring high availability for business-critical applications.
• Smart Bandwidth Management: Guarantees user bandwidth per subscription agreement, enhancing customer satisfaction.

Specifications

• Dimension: W325 x H325 x D90 mm
• Weight: 3.6 kg
• Gain: 18 dBi
• Maximum Throughput: 1500Mbps
• Operating Frequency: 4.9 GHz - 6 GHz
• Beamforming: 4th Generation Beamforming
• Azimuth Beamwidth: 15 degrees (Steered over 90 degrees)
• Ports: Ethernet and SFP
• GPS: Built-in GPS for synchronization
• Range: Up to 40 km
• Bandwidth: Configurable: 10, 20, 40, 80 MHz
• Max TX Power: 24 dBm per chain
• Operating temperature: -40°C to 60°C
• Humidity: 100% condensing
• Enclosure protection: IP67
