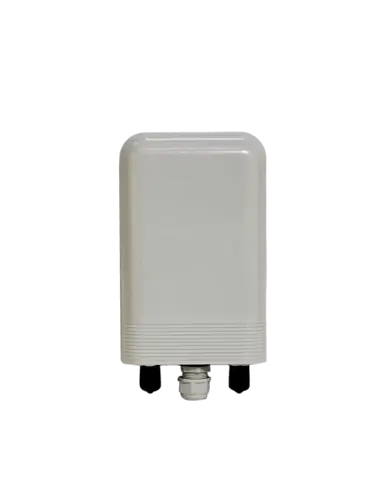

Radwin 5000L Connectorised Base Station - 250Mbps CIR/BE

The Radwin 5000L Connectorised Base Station is a powerful solution designed for fixed wireless broadband networks, providing up to 250Mbps throughput for up to 16 end-users. This base station excels in low-density areas, ensuring reliable connectivity with minimal visual impact, making it ideal for various applications including video surveillance and IoT connectivity.

Features

• High Throughput: Supports net aggregated throughput of up to 250Mbps.
• User Capacity: Can connect up to 16 end-users efficiently.
• Flexible Service Levels: Offers Committed Information Rate (CIR) or Best Effort service levels.
• Built-in GPS: Facilitates TDD synchronization for improved performance.
• Extended Range: Operates effectively over distances of up to 40 km (25 miles).
• Durable Design: IP67 rated for robust and reliable operation in various environmental conditions.
• Low Visual Impact: Compact design minimizes visual footprint in public areas.
• Frequency Range: Operates within the 4.9 to 6 GHz band.

Specifications

• Dimensions: 325 x 325 x 64 mm
• Weight: 2 kg
• Power Consumption: <13W
• Max TX Power: 26 dBm
• Modulation: MIMO - OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)
• Channel Bandwidth: Configurable: 10, 20, 40 MHz
• Encryption: AES128
• Operating Temperature: -35°C to 60°C
• Humidity: 100% condensing
• VLAN Support: 802.1Q, QinQ, 4094 VLANs
