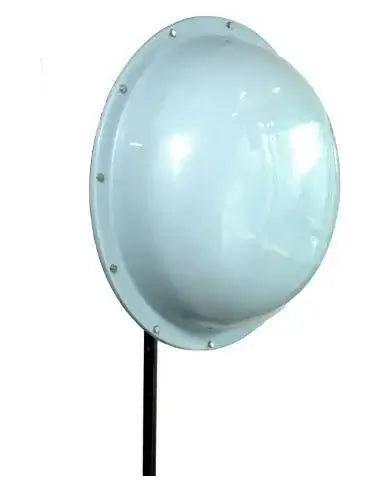

Radwin 32dBi Dual Polarized Dish Antenna - N(F) Connectors

The RADWIN RW-ANT5832-DISH-DP is a high-performance dual polarization directional antenna designed for reliable fixed wireless broadband connectivity. With a gain of 32dBi and a frequency range of 4.9 to 5.875 GHz, this antenna provides exceptional performance for Internet service providers and wireless network operators.

Features

• High Gain: Achieves a gain of 32dBi for superior signal strength and range.
• Dual Polarization: Supports both vertical and horizontal polarization for enhanced signal quality.
• Rugged Design: Lightweight yet durable construction ensures longevity even in harsh environments.
• Easy Installation: Designed for straightforward setup, minimizing installation time and effort.
• Broad Frequency Range: Operates effectively across 4.9 - 5.875 GHz, making it suitable for various applications.

Specifications

• Frequency Range: 4.9 - 5.875 GHz
• Gain: 32 dBi
• VSWR: 1.8:1 (max)
• 3dB Beamwidth (Azimuth): 4°
• 3dB Beamwidth (Elevation): 4°
• Side Lobes Level: -16 dB
• Cross Polarization: -13 dB
• F/B Ratio: 40 dB (max)
• Connector Type: N(F) Connectors
• Dimensions: Diameter = 900mm
• Weight: 10.5 kg
• Temperature Range: -40°C to +70°C
• Wind Speed Survival: 216 km/h; Operation: 180 km/h
