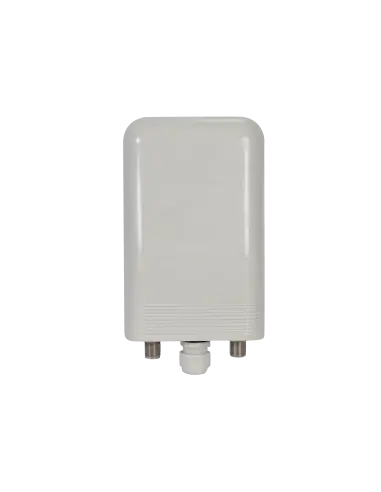

Radwin 2000 Alpha 5GHz ODU - 500Mbps, Dual N Type

The Radwin 2000 Alpha 5GHz ODU is a carrier-class outdoor unit designed for high-speed wireless connectivity. This robust solution delivers up to 500 Mbps aggregate throughput, making it ideal for enterprise access and backhaul applications, including video surveillance. With advanced technologies like MIMO and OFDM, it ensures reliable performance in challenging environments.

Features

• High-Speed Connectivity: Delivers up to 500 Mbps net aggregated throughput.
• Durable Design: IP67 rated, ensuring operation in harsh environmental conditions.
• Long Range: Capable of operating over distances up to 80 km (50 miles).
• Advanced Technology: Utilizes MIMO-OFDM for superior performance in dense radio environments.
• Flexible Configuration: Supports both integrated and connectorized options with dual N-type connectors.
• Dynamic Channel Bandwidth: Configurable channel bandwidth of 10, 20, 40, and 80 MHz.
• Built-in GPS: Facilitates co-location of multiple radios and supports TDD synchronization.
• AES Encryption: Ensures secure communication with AES 128 encryption.

Specifications

• Dimensions: W195 x H125 x D40 mm
• Weight: 0.5 kg
• Frequency Range: 4900 GHz – 6090 GHz
• Capacity: 500 Mbps
• Max Tx Power: 26 dBm
• Operating Temperature: -35°C to 60°C
• Humidity: 100% condensing
• Power Consumption: <13W
• Durability: IP67
