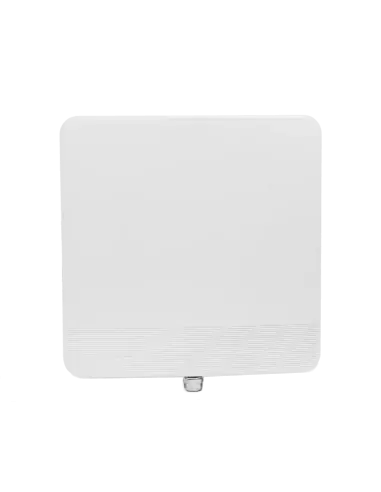

Radwin 2000 Alpha 5GHz ODU - 500Mbps, 22dBi Antenna

The RADWIN 2000 Alpha 5GHz ODU is a high-performance outdoor unit designed for reliable point-to-point communication. With a capacity of up to 500 Mbps and a robust 22dBi integrated antenna, it ensures exceptional connectivity for various applications including enterprise access and video surveillance backhaul.

Features

• High-Speed Connectivity: Delivers aggregate speeds of up to 500 Mbps.
• Long Range: Operates effectively over distances of up to 40 km.
• Integrated Antenna: Features a powerful 22dBi integrated antenna for enhanced signal strength.
• Robust Performance: Designed to function in congested environments with minimal interference.
• Versatile Applications: Ideal for wireless enterprise access, video surveillance backhaul, and building-to-building connectivity.

Specifications

• Dimensions: W325 x H325 x D64 mm
• Weight: 2 kg
• Frequency Band: 4.9-6.0 GHz
• Channel Bandwidth: Configurable 10, 20, 40, 80 MHz
• Max Tx Power: 26dBm
• Duplex Technology: TDD
• IP Rating: 100% condensing, IP67
• Operating Temperature: -35°C to 60°C
• Power Consumption: <13W
