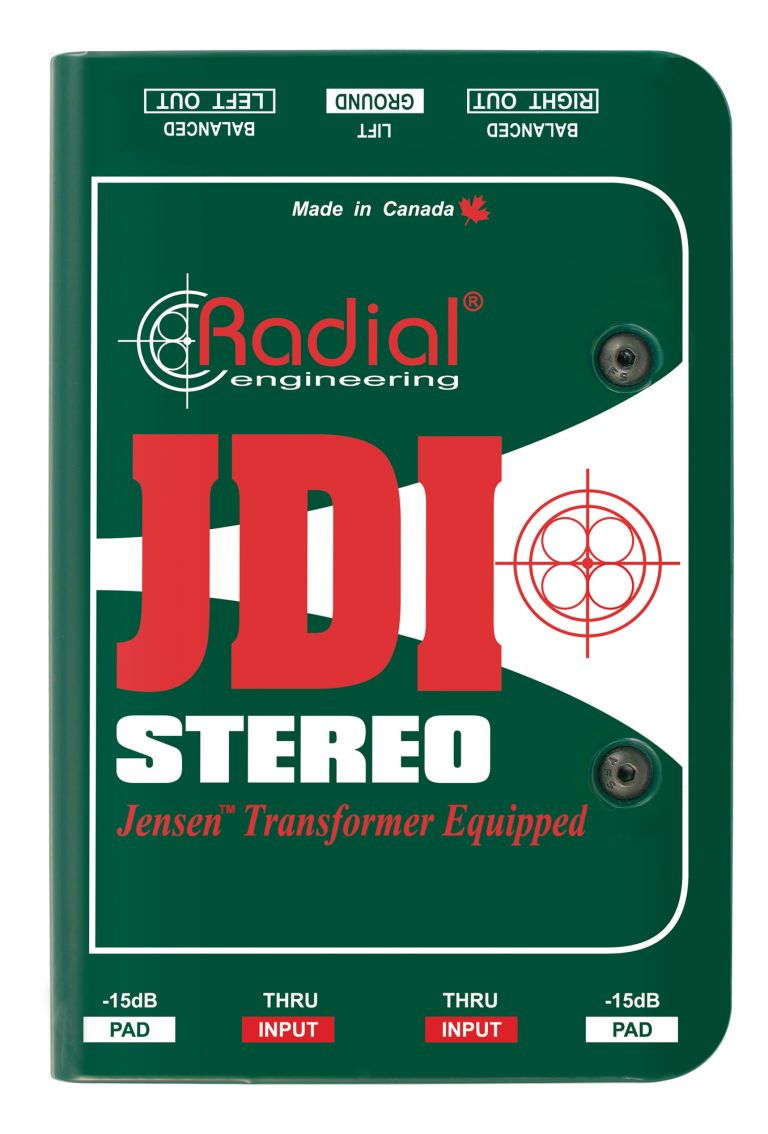

• Top view of the Radial JDI Stereo Passive Direct Box for professional stereo applications.

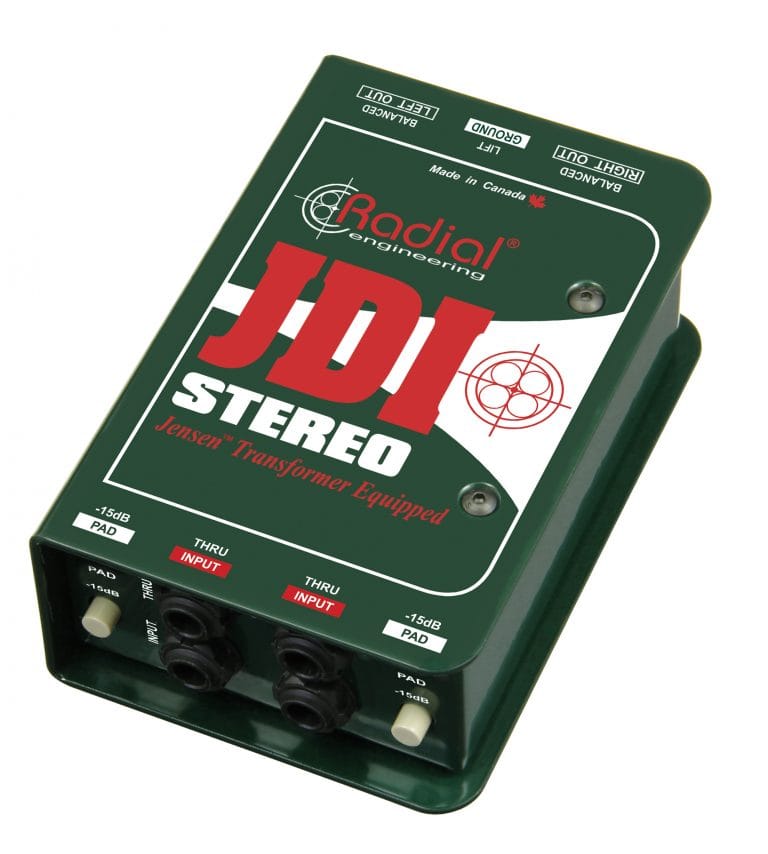

  • 45 degree angle view of the Radial JDI Stereo Passive Direct Box for professional stereo applications.

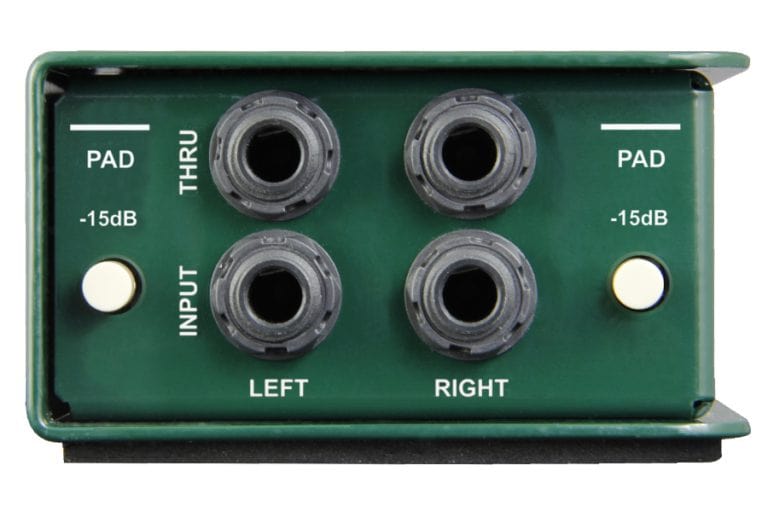

  • Right side view of the Radial JDI Stereo Passive Direct Box for professional stereo applications.

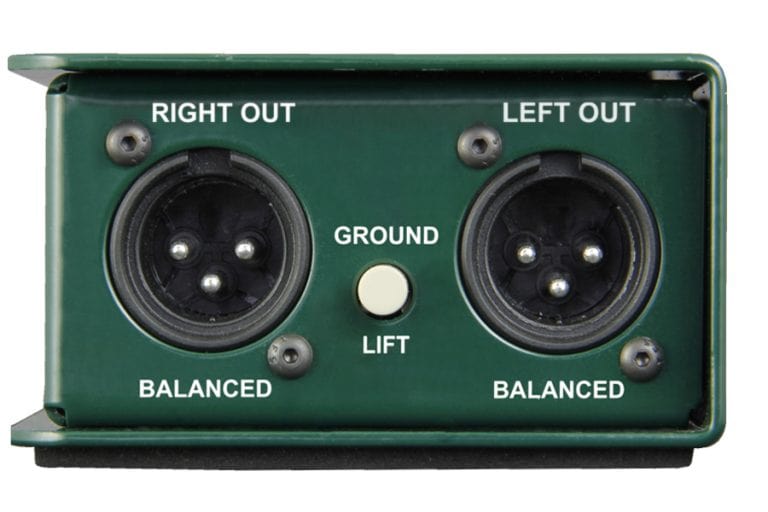

  • Left side view of the Radial JDI Stereo Passive Direct Box for professional stereo applications.

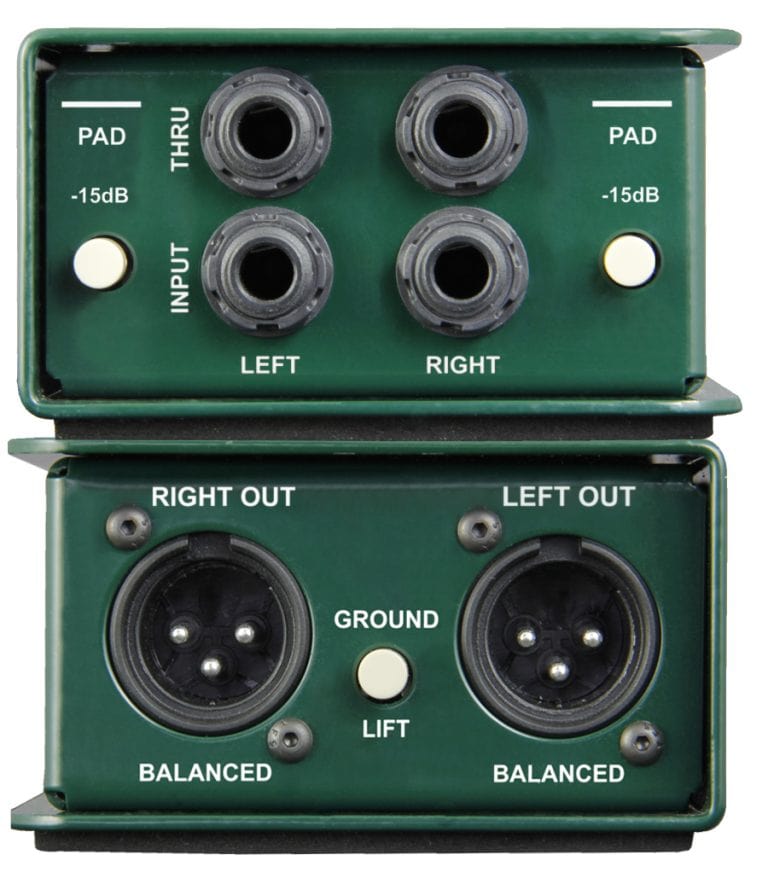

  • Right and Left side view of the Radial JDI Stereo Passive Direct Box for professional stereo applications.

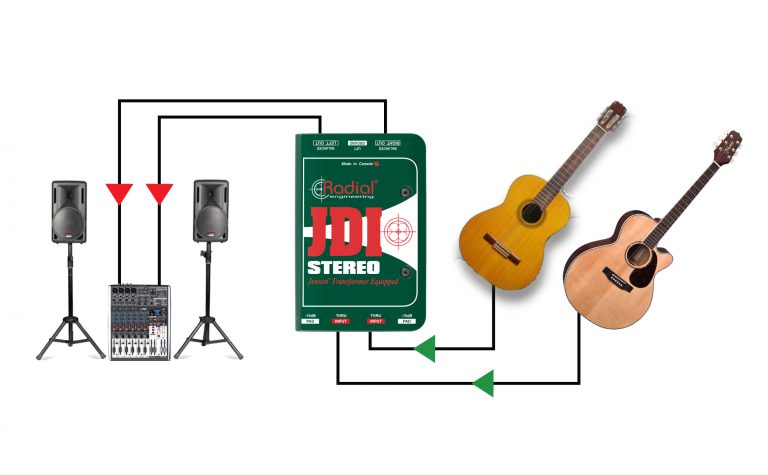

  • First application view of the Radial JDI Stereo Passive Direct Box for professional stereo applications.

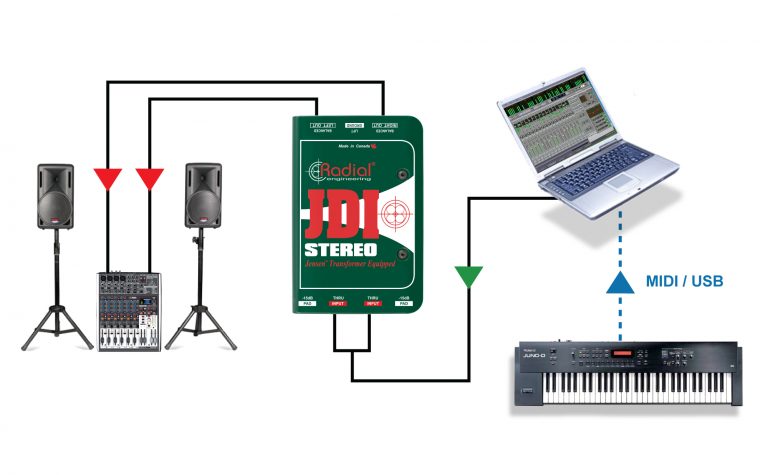

  • Second application view of the Radial JDI Stereo Passive Direct Box for professional stereo applications.
  • Third application view of the Radial JDI Stereo Passive Direct Box for professional stereo applications.

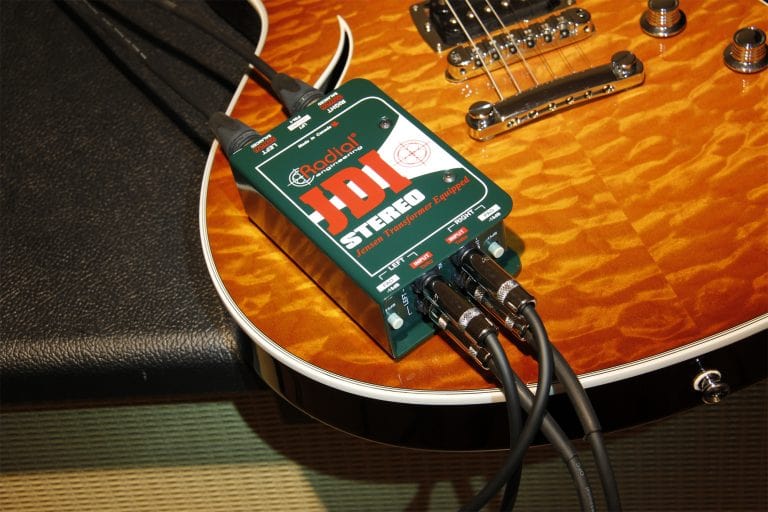

  • Lifestyle image view of the Radial JDI Stereo Passive Direct Box for professional stereo applications.
NaN -Infinity

Radial

Radial Stereo Passive DI for Acoustic Guitar, Bass, and Keyboards

Radial Stereo Passive DI for Acoustic Guitar, Bass, and Keyboards

RAD-R800101200

Low stock: 5 left

R 9,720.00
R 9,720.00
Sale Sold out
Shipping calculated at checkout.
Pay R 3,240.00 now with
PayFast & MoreTyme
and the rest in 2 interest-free payments. Learn More

Achieve superior sound quality with the Radial JDI Stereo Passive Direct Box, the ultimate choice for passive stereo direct boxes. Featuring two Jensen audio transformers, the JDI Stereo balances signals and lowers impedance for long cable runs without noise. These transformers are designed with a unique nickel core stack, proprietary winding techniques, dual Faraday shields, and MuMETAL® protection, ensuring exceptionally low distortion and the ability to handle extreme transients across all frequencies. Built with a heavy-duty steel shell and internal I-beam construction, the JDI Stereo is engineered for reliability in even the most demanding touring environments.

Features

  • Dual Jensen Transformers: Two channels equipped with Jensen JT-DBE transformers for balanced signals and low impedance.
  • Nickel Core Stack and MuMETAL® Shielding: Provides superior noise elimination and protection against external fields.
  • Passive Operation: No power required, simplifying setup and use.
  • High Dynamic Range: 135dB dynamic range with low total harmonic distortion (0.05% from 20Hz to 20kHz @ -10dB).
  • Heavy-Duty Construction: Built with a 14-gauge steel chassis and internal I-beam for durability.
  • Additional Features: Input pad and ground lift switch for flexibility in various environments.

Specifications

  • Audio Circuit Type: Passive, transformer-based
  • Transformer: Jensen JT-DBE
  • Number of Channels: Two channels (dual mono)
  • Frequency Response: 20Hz ~ 20kHz (± 0.2dB)
  • Dynamic Range: 135dB
  • Total Harmonic Distortion: 0.05% from 20Hz ~ 20kHz @-10dB
  • Phase Deviation: 0.3° @ 100Hz; 3° @ 20Hz
  • Input Impedance: 140k Ohms, unbalanced
  • Output Impedance: 150 Ohms, balanced
  • Maximum Input: +21dB @ 20Hz ~ 20kHz
  • Input Connectors: Unbalanced 1/4"
  • Output Connectors: XLR out, 1/4" thru
  • Construction: 14 gauge steel chassis & outer shell
  • Size: 127mm x 84.1mm x 45.5mm (L x W x D)
  • Weight: 703g
  • Shipping Size: 165mm x 102mm x 76mm (L x W x D)
  • Shipping Weight: 870.9g
  • Power: Passive, no power required
  • Operating Conditions: For use in dry locations only between 5°C and 40°C
  • Warranty: Radial 3-year, transferable
  • Part Number: R800 1012 00
