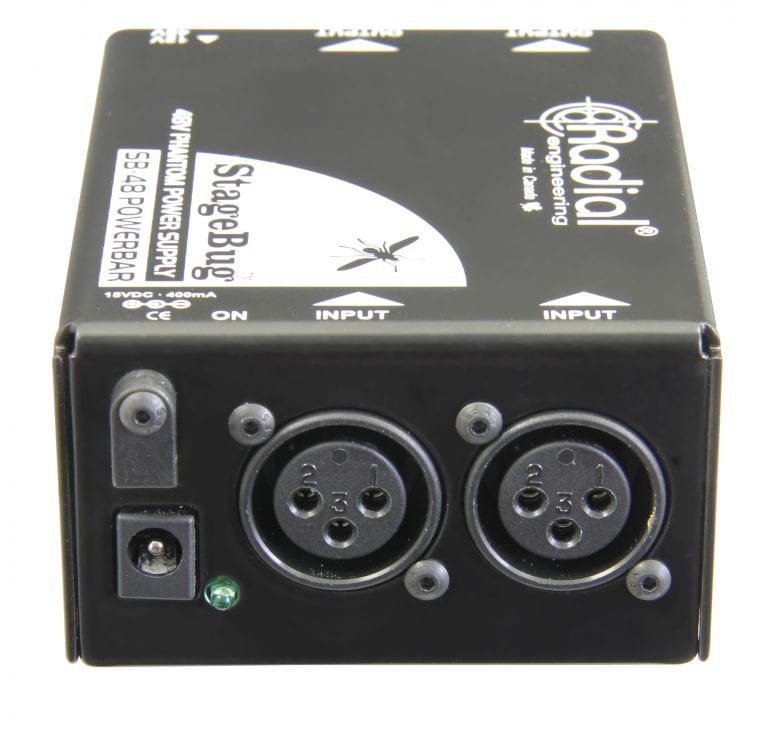

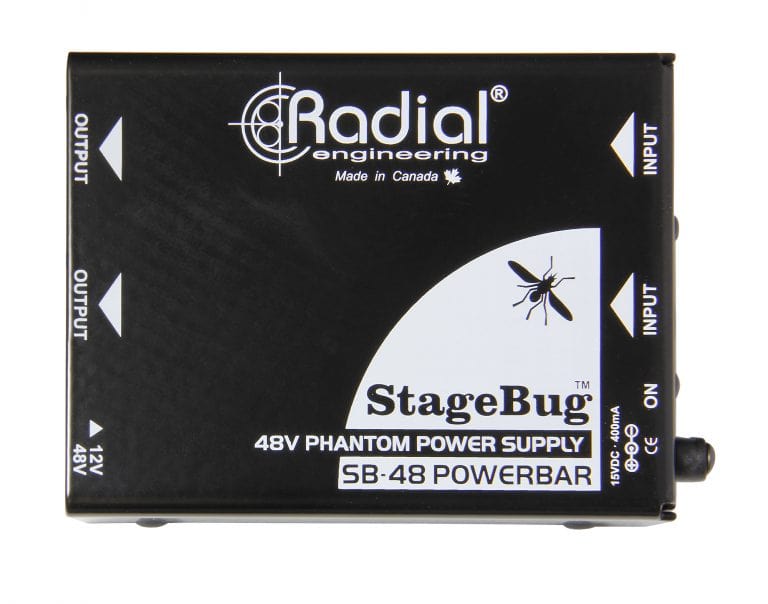

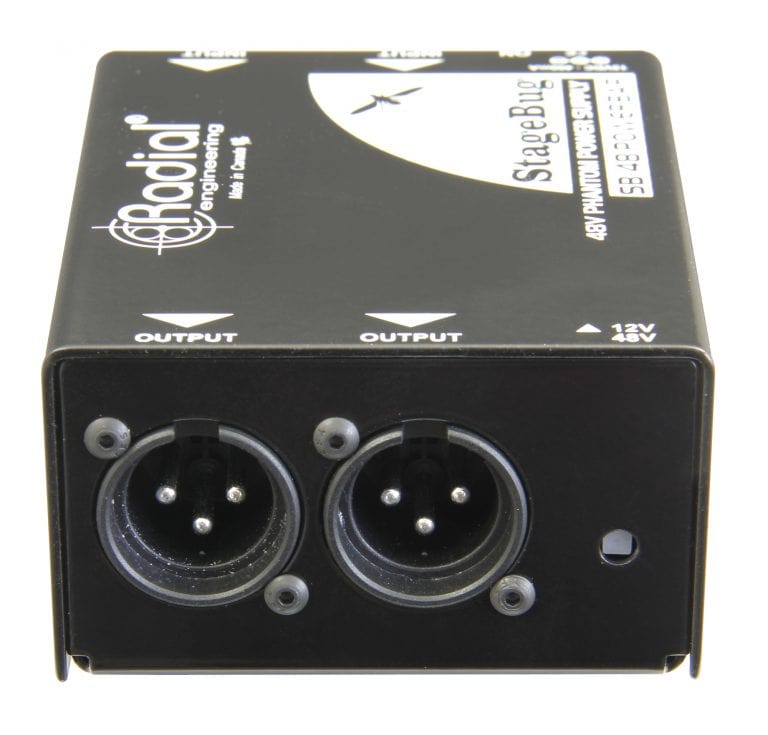

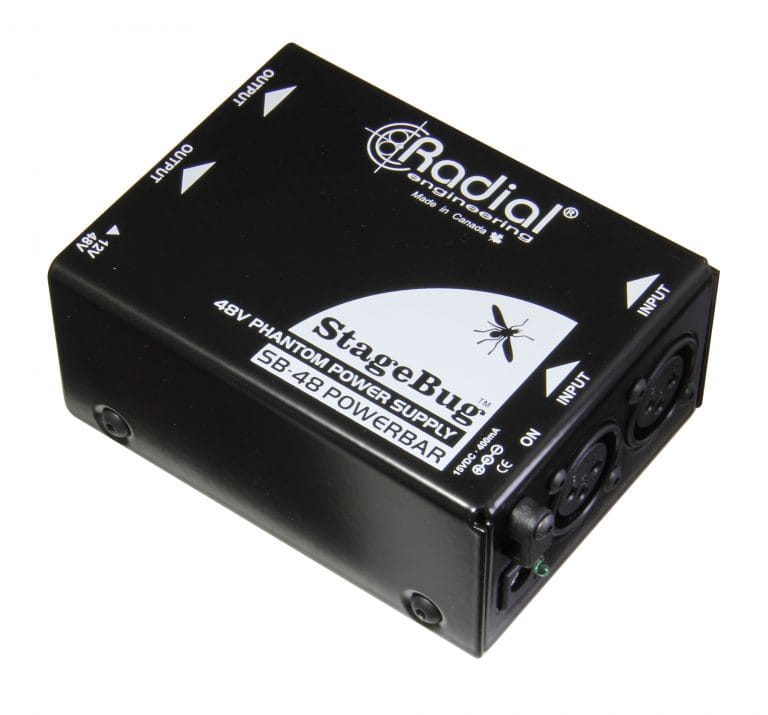

Radial StageBug SB-48 Phantom Power Bar

The Radial StageBug SB-48 is a reliable phantom power supply designed to provide stable 48V or 12V power to condenser microphones and active DI boxes. It features dual XLR inputs and outputs, making it ideal for feeding the inputs of a console or recording interface. The SB-48 is powered by an external 15V power supply, ensuring consistent and ripple-free performance.

Features

• Dual Phantom Power Supply: Provides stable 48V or 12V phantom power for two condenser microphones or active DI boxes.
• Non-Radiating Charge Pump Circuit: Ensures a stable, ripple-free 48V supply.
• Dual XLR Inputs and Outputs: Easy connection to microphones or DI boxes and subsequent connection to preamps or PA systems.
• External Power Supply: Powered by a 15VDC 400mA supply (included), eliminating the need for unreliable venue phantom power.

Specifications

• Part Number: R800 0148 00
• Input Connectors: Dual XLR inputs
• Output Connectors: Dual XLR outputs
• Power Supply: 15VDC 400mA (included)
• Phantom Power: 48V or 12V
• Construction: Durable and compact design
