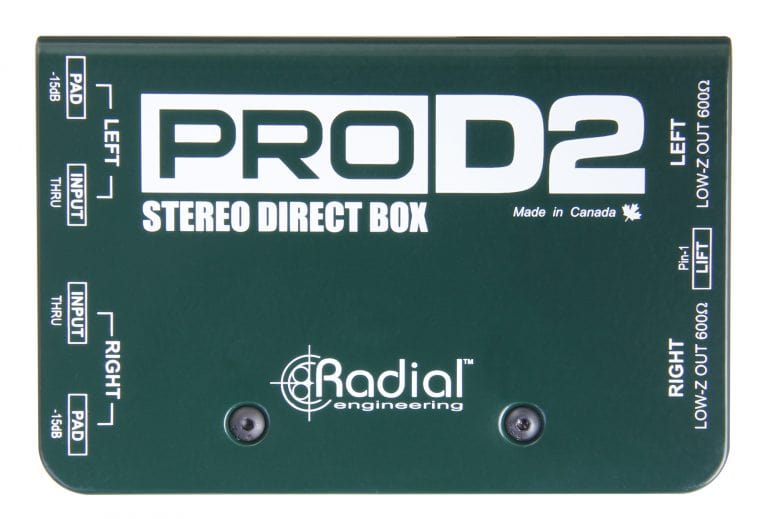

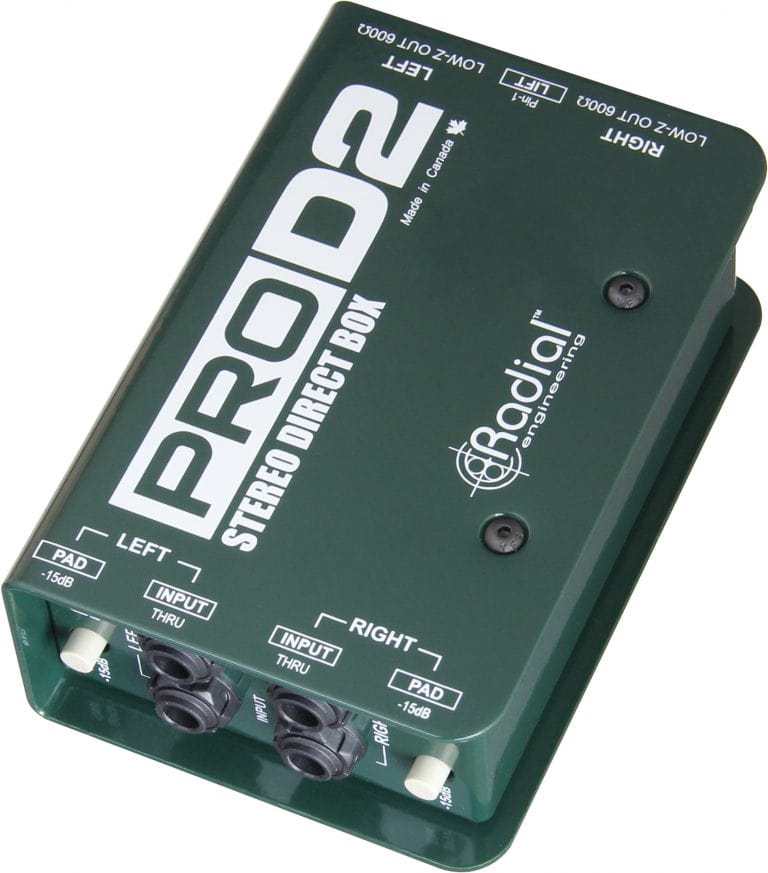

Radial ProD2 Pro Stereo Passive DI Box

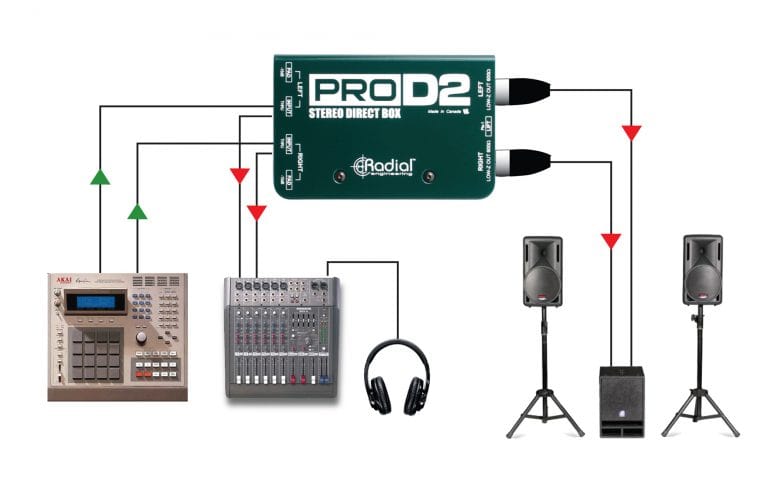

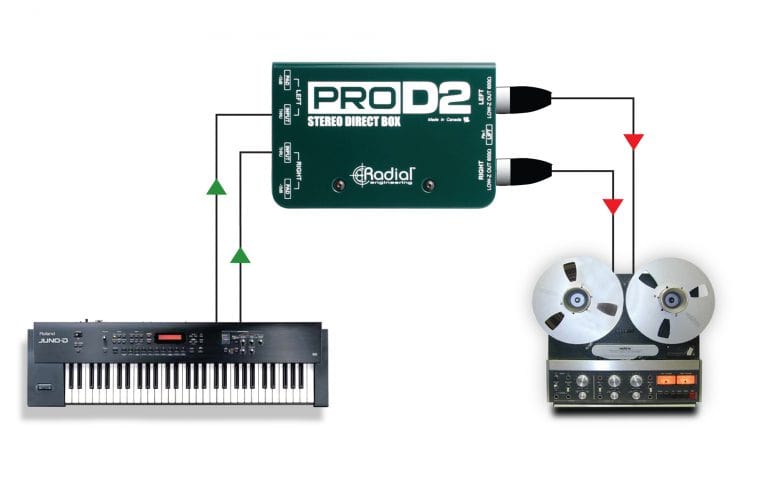

The Radial ProD2 Stereo Passive Direct Box is a high-quality, ultra-compact DI solution ideal for stereo keyboards, DJ equipment, and consumer hi-fi systems. Combining two ProDIs in a single enclosure, the ProD2 features custom-made Radial transformers for exceptional audio performance. Its rugged construction and user-friendly features make it a perfect choice for both live and studio environments.

Features

• Stereo Passive DI: Combines two ProDIs in one compact enclosure, perfect for stereo applications.
• Custom Radial Transformers: Ensures linear frequency response from 20Hz to 18kHz and handles high signal levels without saturation.

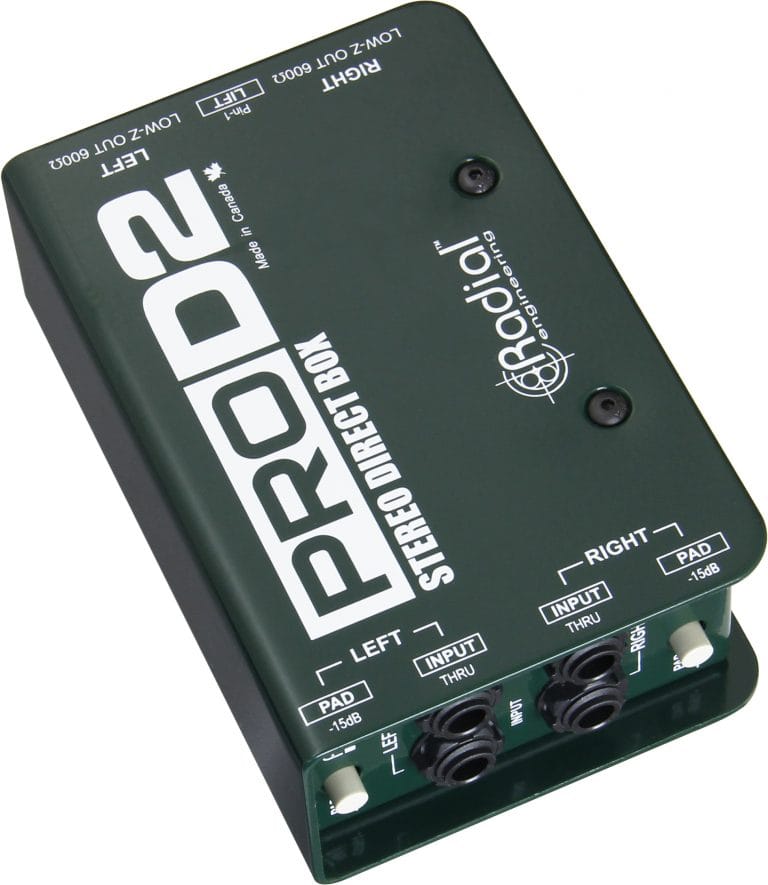

• Robust Construction: 14-gauge steel chassis with a book-end design to protect switches and connectors.

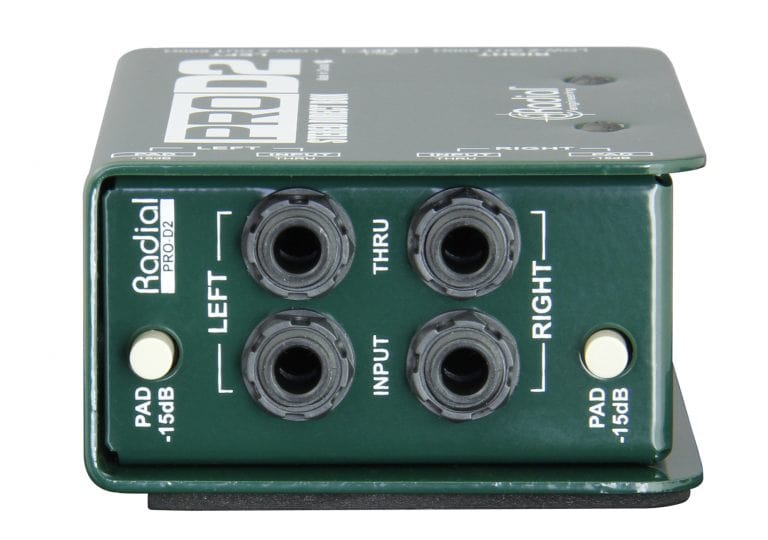

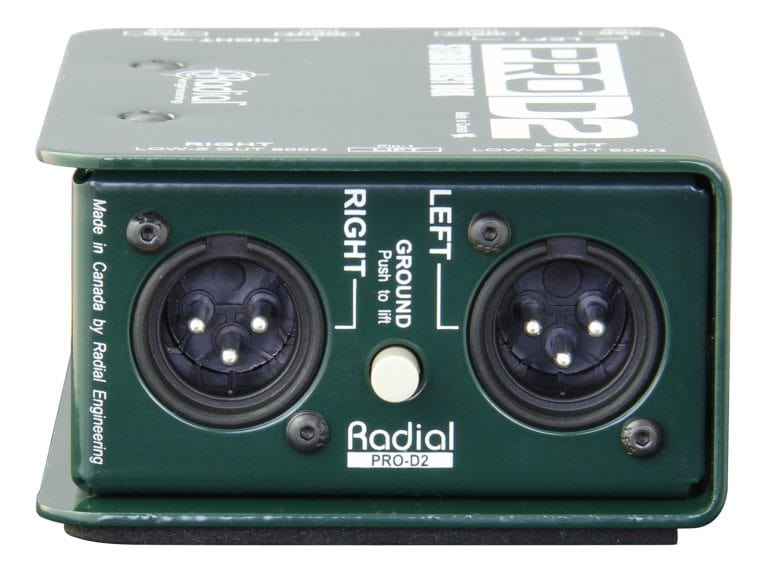

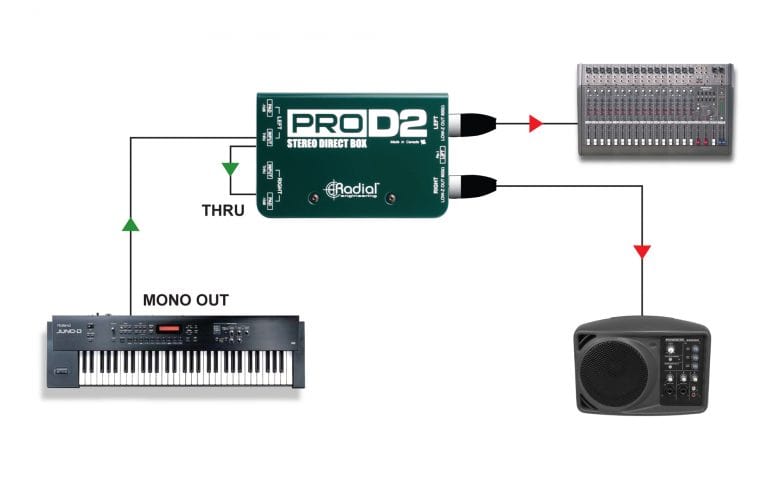

• Versatile Connectivity: Features 1/4" inputs, XLR outputs, and 1/4" thru connectors.
• User-Friendly Features: Includes a -15dB pad for high output sources, 180° polarity reverse, and a ground lift switch to eliminate noise from ground loops.

Specifications

• Audio Circuit Type: Passive, transformer-based
• Transformer: Eclipse ET-DB2, 12:1 ratio
• Number of Channels: 2
• Frequency Response: 20Hz ~ 18.5kHz (± 0.2dB)
• Dynamic Range: 128dB
• Total Harmonic Distortion: 0.01% from 20Hz ~ 20kHz @ -10dB
• Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
• Input Impedance: 140k Ohms, unbalanced
• Output Impedance: 150 Ohms, balanced
• Maximum Input: +18dB @ 20Hz
• Features: Input pad, 180° polarity reverse, ground lift
• Input Connectors: 1/4"
• Output Connectors: XLR, 1/4" thru
