Radial Mic Splitter - Passive with 2 Direct Outs and Eclipse Isolated Output

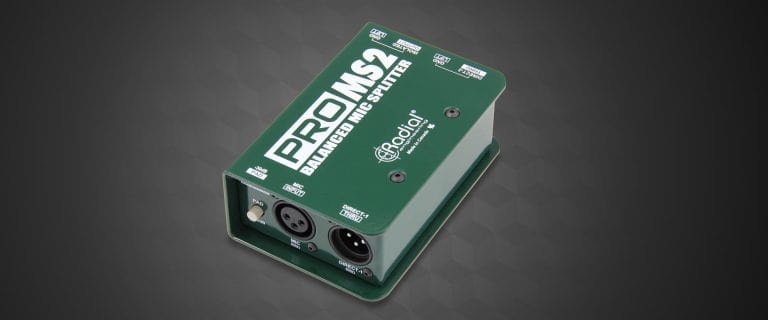

The Radial ProMS2 is a high-performance passive microphone splitter designed for professional audio applications. Featuring an Eclipse ET-MS10 transformer, the ProMS2 delivers exceptional audio quality with minimal distortion and phase deviation. Its robust construction ensures durability and reliability in both live and studio environments.

Features

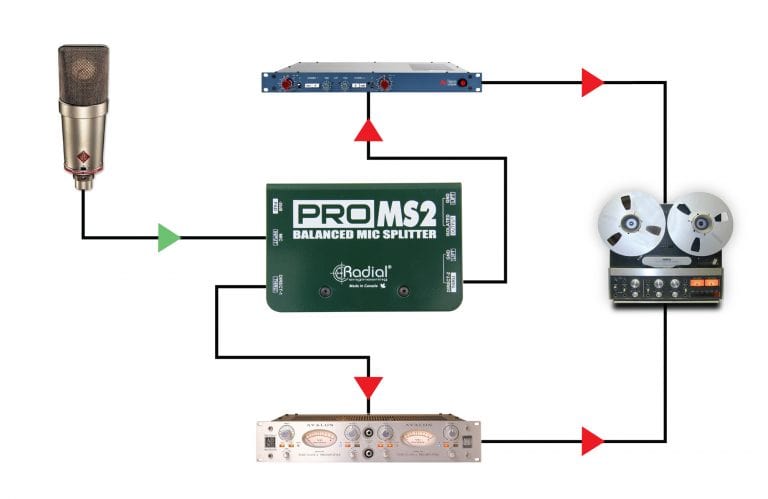

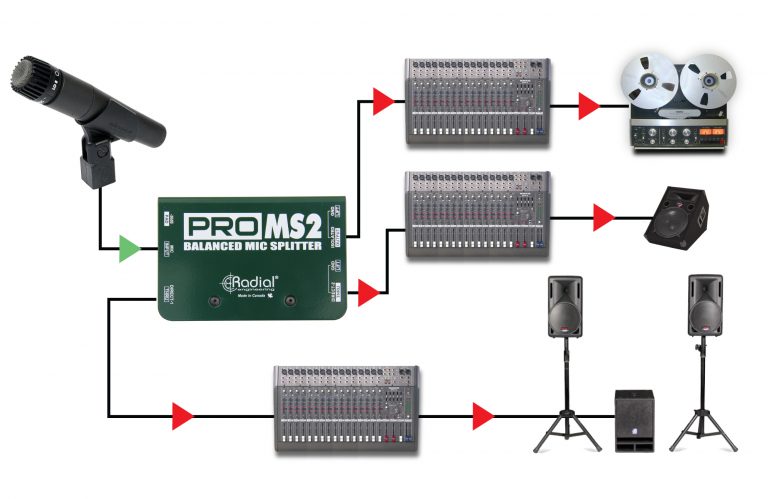

• Passive Microphone Splitter: Ideal for splitting a microphone signal to multiple destinations.
• Eclipse Transformer: Equipped with an Eclipse ET-MS10 transformer for superior audio performance.
• Wide Frequency Response: 20Hz to 20kHz (+0dB -1dB) for accurate sound reproduction.
• High Dynamic Range: Greater than 140dB ensures clear and detailed audio.
• Low Distortion: Total harmonic distortion of 0.001% and intermodulation distortion of 0.003%.
• Minimal Phase Deviation: 1° phase deviation at 20Hz.
• Common Mode Rejection Ratio: -115dB at 60Hz to eliminate noise.
• Rugged Construction: Built with a 14-gauge steel chassis and outer shell for durability.

Specifications

• Audio Circuit Type: Passive
• Transformer: Eclipse ET-MS10
• Frequency Response: 20Hz ~ 20kHz (+0dB -1dB)
• Dynamic Range: >140dB
• Gain: -0.5dB
• Total Harmonic Distortion: 0.001%
• Intermodulation Distortion: 0.003%
• Phase Deviation: 1° @ 20Hz
• Input Impedance: Source dependent
• Output Impedance: Source dependent
• Common Mode Rejection Ratio: -115dB at 60Hz
• Noise Floor: -140dB
• Maximum Input: +26dBu
