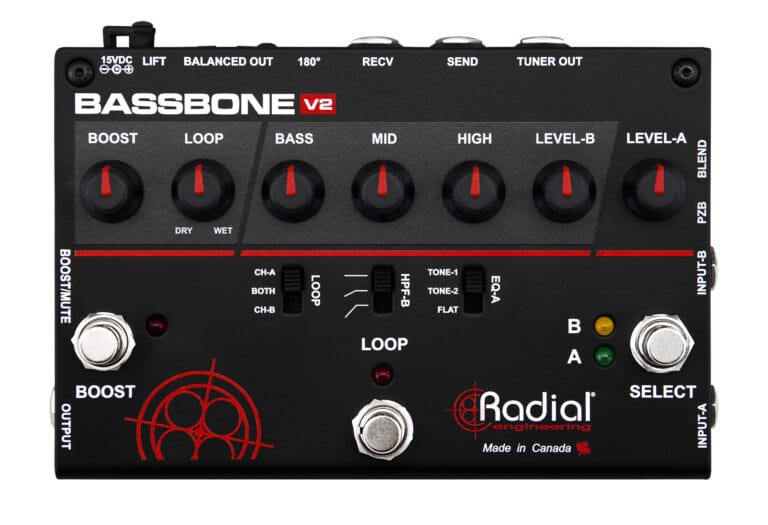

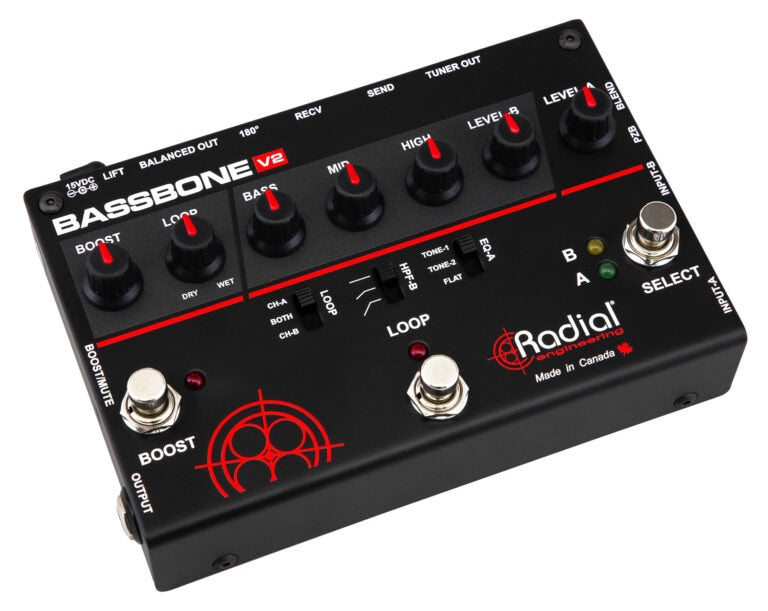

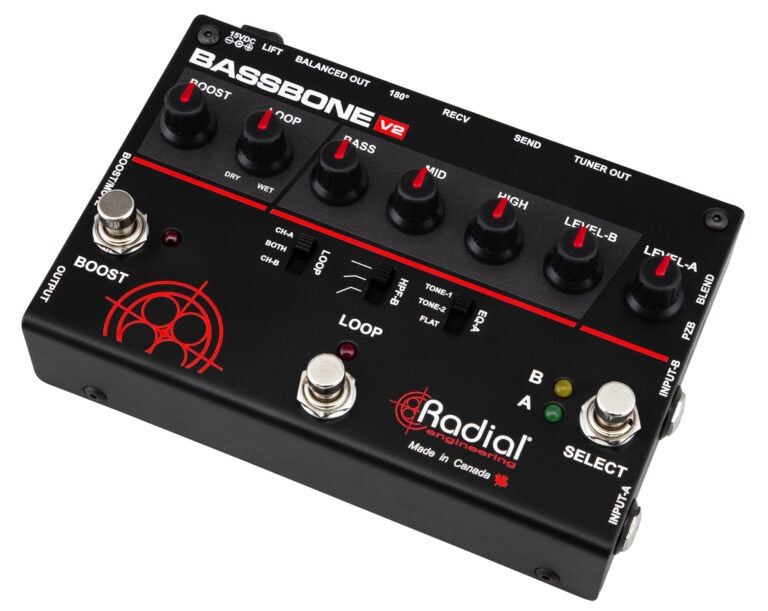

Radial Bass Preamp with Dual Input, EQ, Power Boost, FX Loop, and Built-in DI

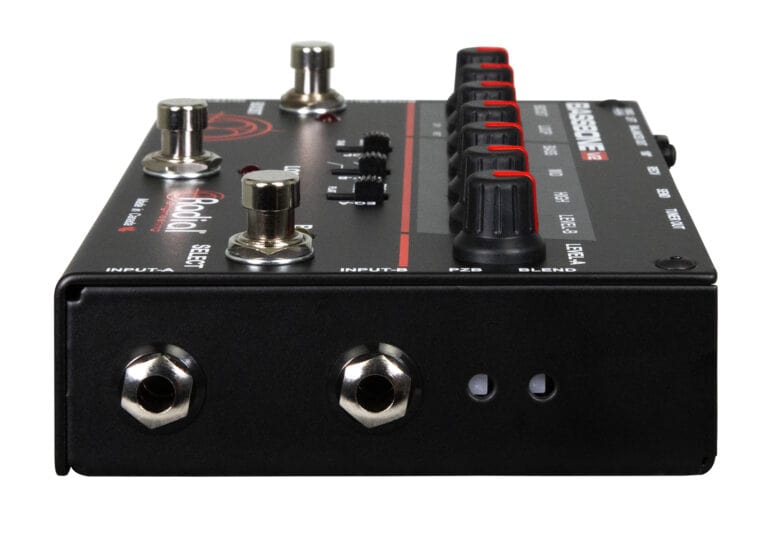

The Radial Bassbone V2 is a powerful and versatile bass preamp designed to meet the demands of professional bass players. Featuring a discrete class-A FET input and low-noise ICs, the Bassbone V2 delivers exceptional audio quality with a wide range of tonal options. It includes multiple features such as 180° polarity reverse, ground lift, high-pass filter (HPF), and a boost function, making it an essential tool for both live performances and studio sessions.

Features

• High-Quality Audio Circuit: Discrete class-A FET input with low-noise ICs ensures superior sound quality.
• Wide Frequency Response: 20Hz to 18kHz for full-range audio reproduction.
• Dynamic Range: 85dB for clear and detailed sound.

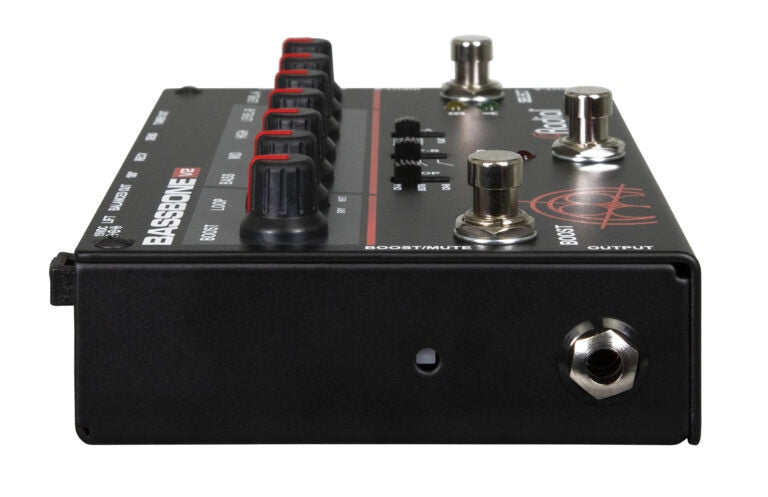

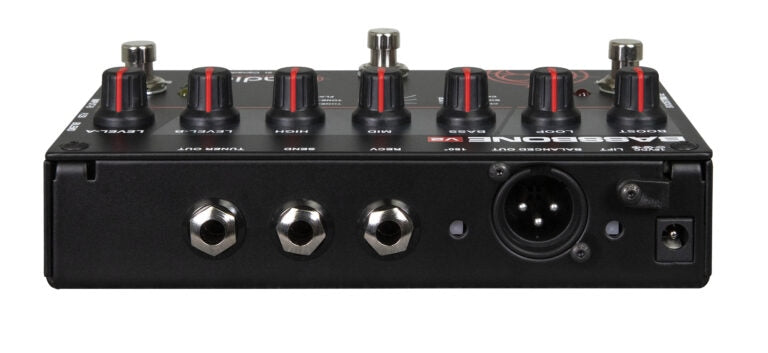

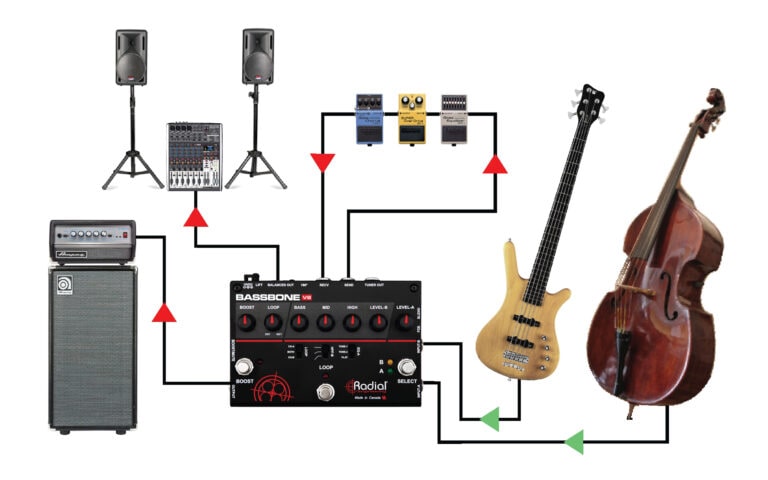

• Versatile Connectivity: Includes 1/4" inputs, 1/4" and XLR outputs.
• User-Friendly Features: 180° polarity reverse, ground lift, high-pass filter (HPF), and boost function for enhanced performance.
• Rugged Construction: Built with a 14-gauge steel chassis for durability.

Specifications

• Audio Circuit Type: Discrete class-A FET input with low noise ICs
• Frequency Response: 20Hz ~ 18kHz
• Dynamic Range: 85dB
• Gain: Unity gain device
• Total Harmonic Distortion: 0.05% @ -15dBu
• Intermodulation Distortion: 0.2% @ -20dBu
• Input Impedance: 220K Ohms input A, 220K/10M Ohms input B
• Output Impedance: 300 Ohms at XLR
• Equivalent Input Noise: -92dBu at XLR
• Noise Floor: -100dB
• Maximum Input: +7dBu
