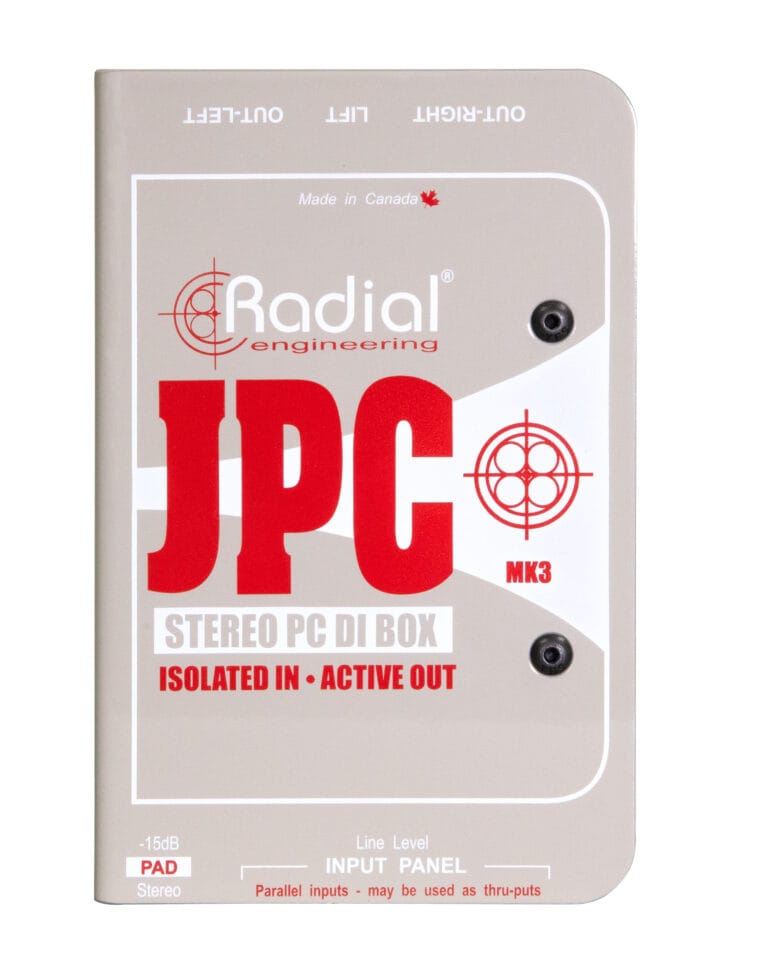

• Top view of the Radial JPC Stereo Consumer to Mic Level Interface for connecting consumer audio devices to professional audio equipment.

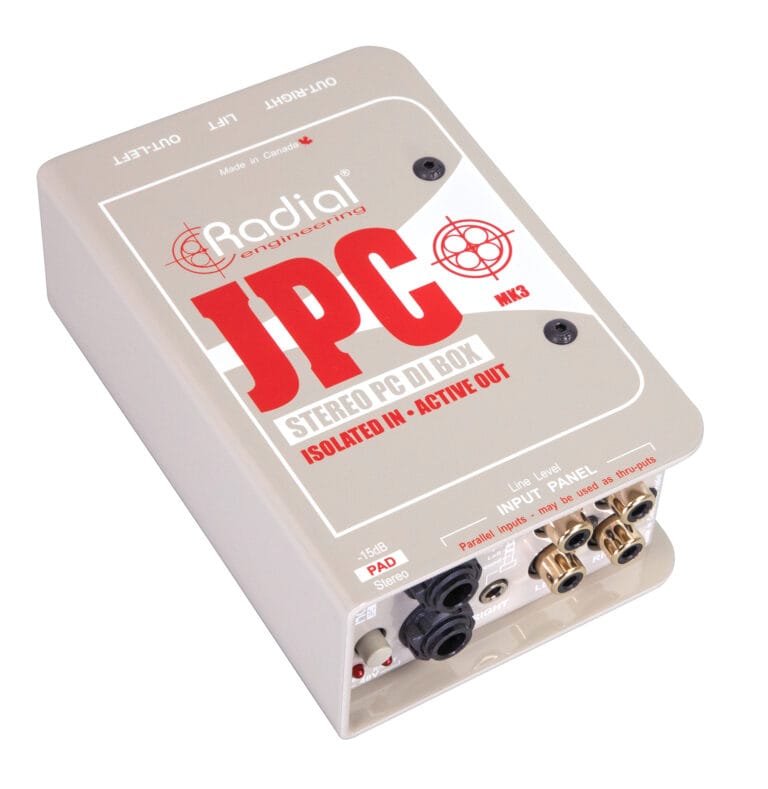

  • Left 45 degree angle view of the Radial JPC Stereo Consumer to Mic Level Interface for connecting consumer audio devices to professional audio equipment.

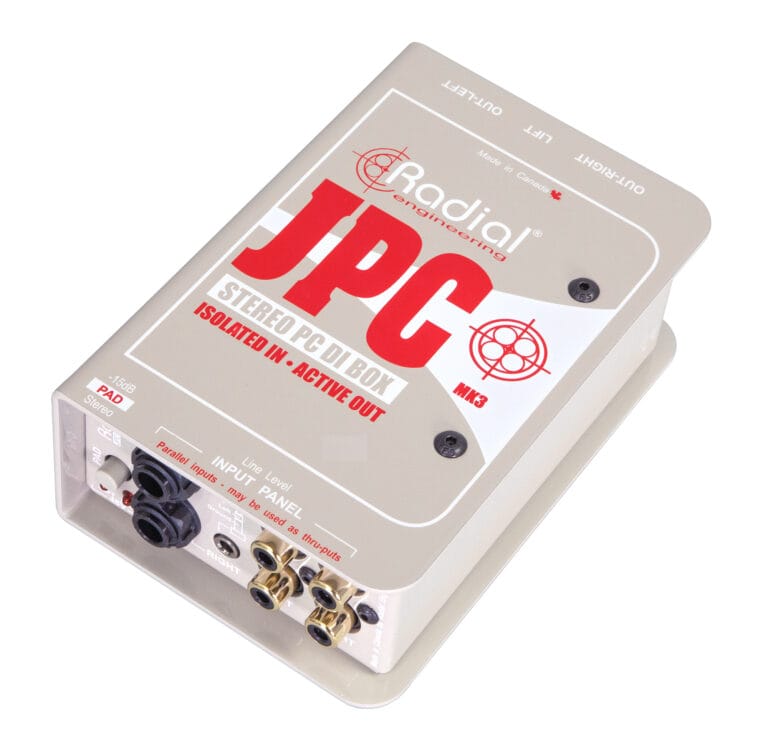

  • Right 45 degree angle view of the Radial JPC Stereo Consumer to Mic Level Interface for connecting consumer audio devices to professional audio equipment.

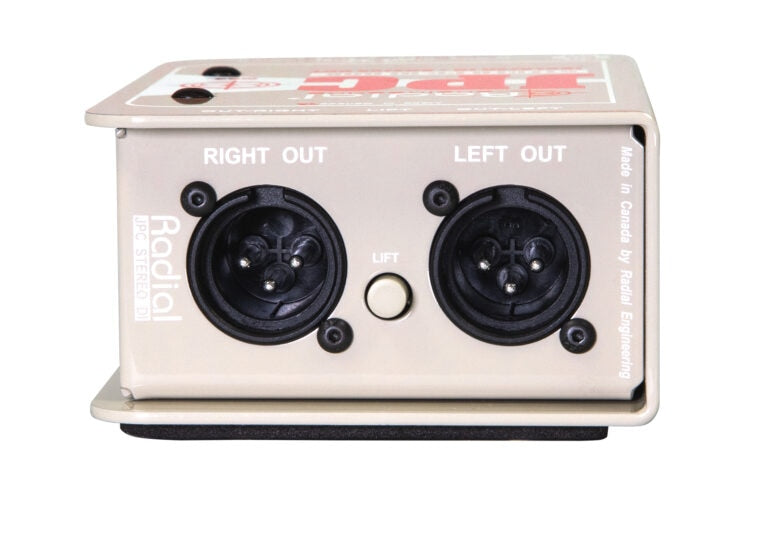

  • Right side view of the Radial JPC Stereo Consumer to Mic Level Interface for connecting consumer audio devices to professional audio equipment.
  • Left side view of the Radial JPC Stereo Consumer to Mic Level Interface for connecting consumer audio devices to professional audio equipment.

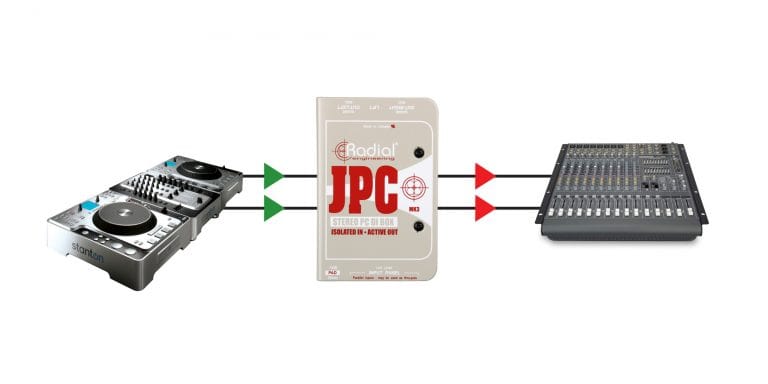

  • First application view of the Radial JPC Stereo Consumer to Mic Level Interface for connecting consumer audio devices to professional audio equipment.

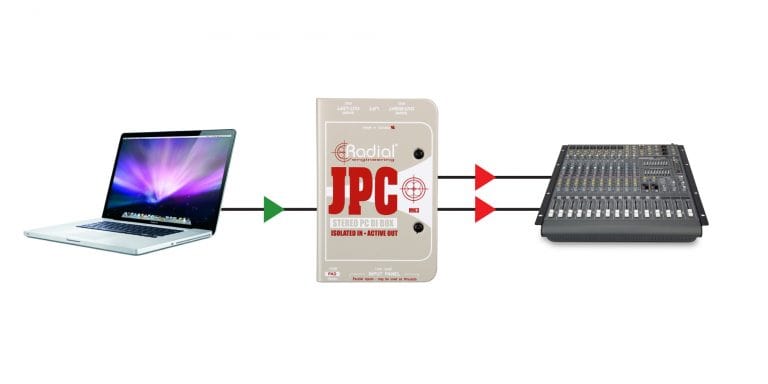

  • Second application view of the Radial JPC Stereo Consumer to Mic Level Interface for connecting consumer audio devices to professional audio equipment.

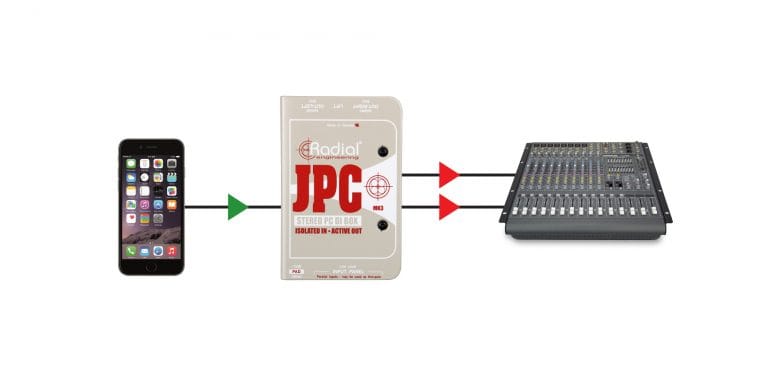

  • Third application view of the Radial JPC Stereo Consumer to Mic Level Interface for connecting consumer audio devices to professional audio equipment.
1 8

Radial

Radial Active DI with Stereo Inputs for Laptops & CD Players, Phantom Powered

Radial Active DI with Stereo Inputs for Laptops & CD Players, Phantom Powered

RAD-R800102600

Low stock: 1 left

R 6,390.00
R 6,390.00
Sale Sold out
Shipping calculated at checkout.

Simplify the connection of your consumer audio devices to professional audio equipment with the Radial JPC Stereo Consumer to Mic Level Interface. Designed with a variety of input connector options, the JPC makes it easy to interface your computer, DVD/CD player, MP3 player, or other consumer audio devices with balanced professional audio gear. Built with the quality construction Radial is known for, the JPC delivers exceptional audio performance while effectively eliminating noise.

Features

  • Versatile Input Options: Connects consumer audio devices to professional audio equipment using 1/4", RCA, and 3.5mm TRS inputs.
  • Exceptional Audio Quality: Unity gain buffers and inverters using low noise, high-end audio grade operational amplifiers ensure superior sound.
  • Dynamic Range: 111dB dynamic range with low total harmonic distortion (0.01% @ -15dBu output).
  • Noise Elimination: Features like input pad, ground lift, and phantom power help eliminate unwanted noise and interference.
  • Durable Construction: Built with a 14-gauge steel chassis and outer shell for reliability and long-lasting performance.

Specifications

  • Audio Circuit Type: Unity gain buffers and inverters using low noise high-end audio grade operational amplifiers
  • Number of Channels: 2
  • Frequency Response: 20Hz ~ 20kHz (± 2dB)
  • Dynamic Range: 111dB
  • Total Harmonic Distortion: 0.01% @ -15dBu Output
  • Intermodulation Distortion: Less than 0.15% at any level below clipping
  • Phase Deviation: +29º at 20Hz, -5º at 1kHz, -80º at 20kHz
  • Input Impedance: 10kΩ
  • Output Impedance: 600Ω
  • Equivalent Input Noise: -94dBu
  • Noise Floor: -97dB below 0dB Out
  • Maximum Input: +17dBu
  • Input Connectors: 1/4", RCA, 3.5mm TRS
  • Output Connectors: XLR
  • Construction: 14 gauge steel chassis and outer shell
  • Size: 84mm x 127mm x 48mm (L x W x D)
  • Weight: 720g
  • Power: 48V Phantom Power (each channel requires 48V phantom)
  • Operating Conditions: For use in dry locations only between 5°C and 40°C
  • Warranty: Radial 3-year, transferable
  • Part Number: R800 1026 00
