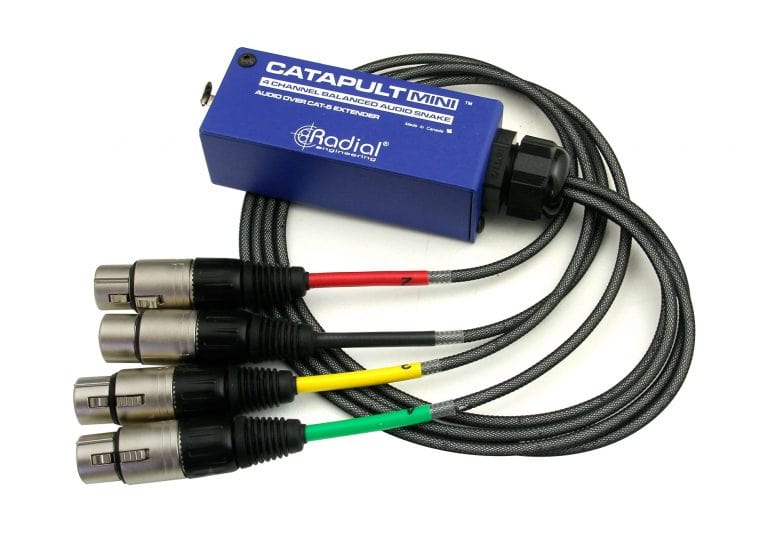

• Top view of the Radial Catapult Mini Audio Snake for 4-channel audio over Ethernet Female.
  • Close Top view of the Radial Catapult Mini Audio Snake for 4-channel audio over Ethernet Female.

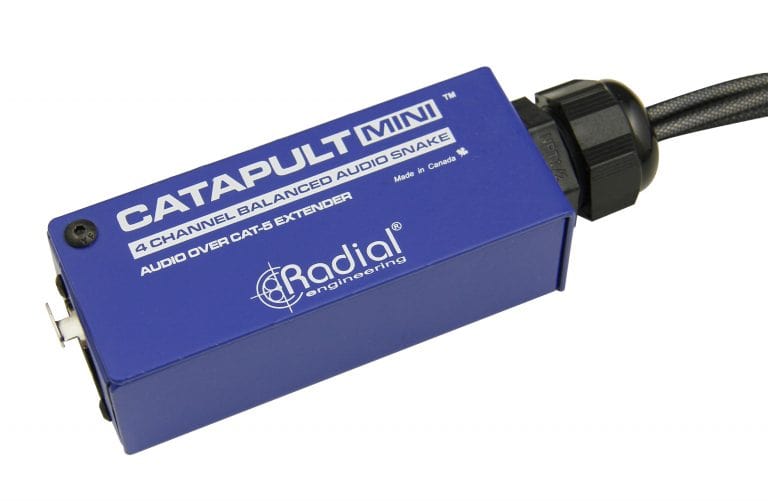

  • Left 45 degree angle view of the Radial Catapult Mini Audio Snake for 4-channel audio over Ethernet Female.

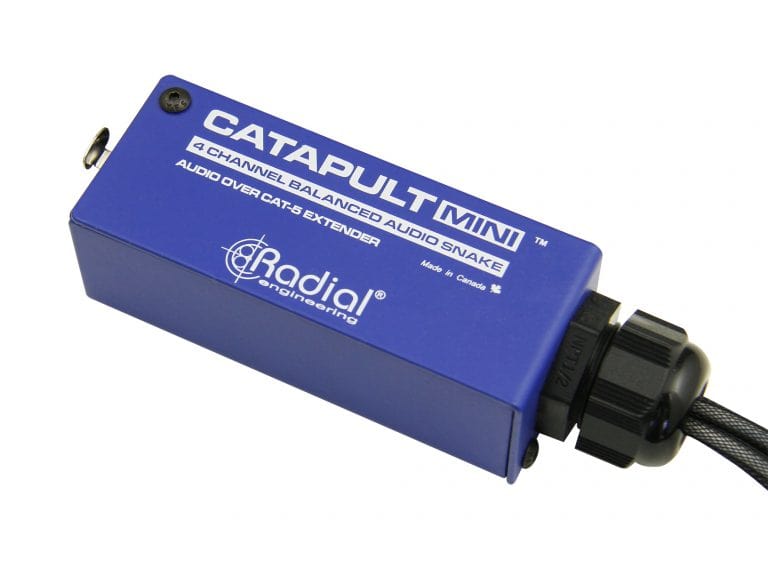

  • Right 45 degree angle view of the Radial Catapult Mini Audio Snake for 4-channel audio over Ethernet Female.

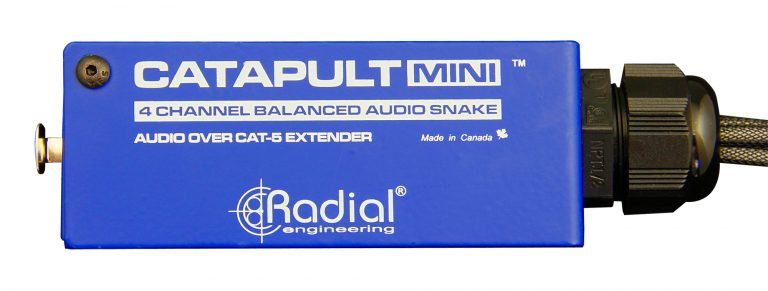

  • Horizontal Side view of the Radial Catapult Mini Audio Snake for 4-channel audio over Ethernet Female.

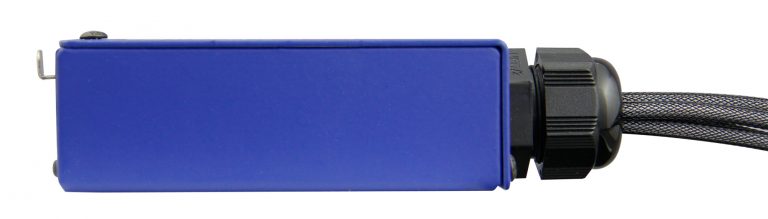

  • Vertical Side view of the Radial Catapult Mini Audio Snake for 4-channel audio over Ethernet Female.

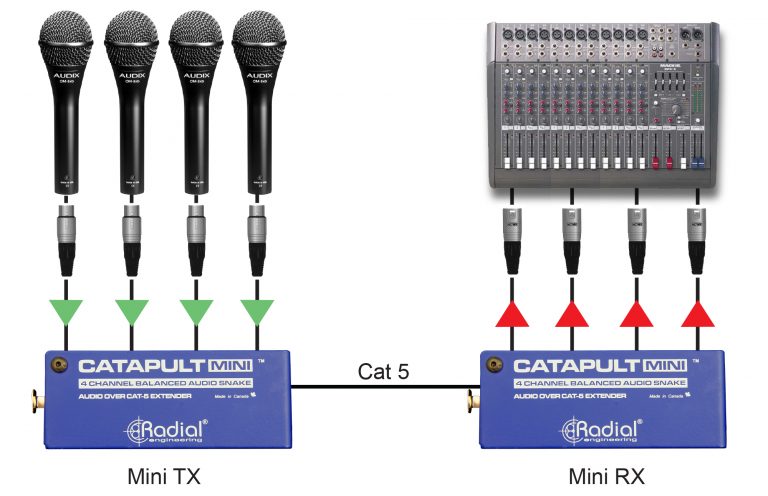

  • Applications view of the Radial Catapult Mini Audio Snake for 4-channel audio over Ethernet Female.
1 7

Radial

Radial 4-Channel Cat-5 Mini Breakout Box to XLR-F Tails, Uses Shielded Cat-5

Radial 4-Channel Cat-5 Mini Breakout Box to XLR-F Tails, Uses Shielded Cat-5

RAD-R800802800

Out of stock

R 3,460.00
R 3,460.00
Sale Sold out
Shipping calculated at checkout.

The Radial Catapult Mini is a compact, passive audio snake designed to transmit four channels of analog audio over standard Cat 5/6 Ethernet cables. Its passive design ensures simplicity and reliability without the need for external power, making it an ideal choice for live sound, broadcast, and studio applications.

Specifications

  • Audio Circuit Type: Passive splitter
  • Frequency Response: 7Hz ~ 20kHz
  • Dynamic Range: 140dB
  • Total Harmonic Distortion: 0.0005% @ 1kHz
  • Common Mode Rejection Ratio: >103dB
  • Maximum Input: +35dBu

Features

  • Ground Lift: Helps eliminate hum and buzz caused by ground loops.
  • Input Connectors: XLR, TRS, RJ45 (model dependent)
  • Output Connectors: XLR, TRS, RJ45 (model dependent)
