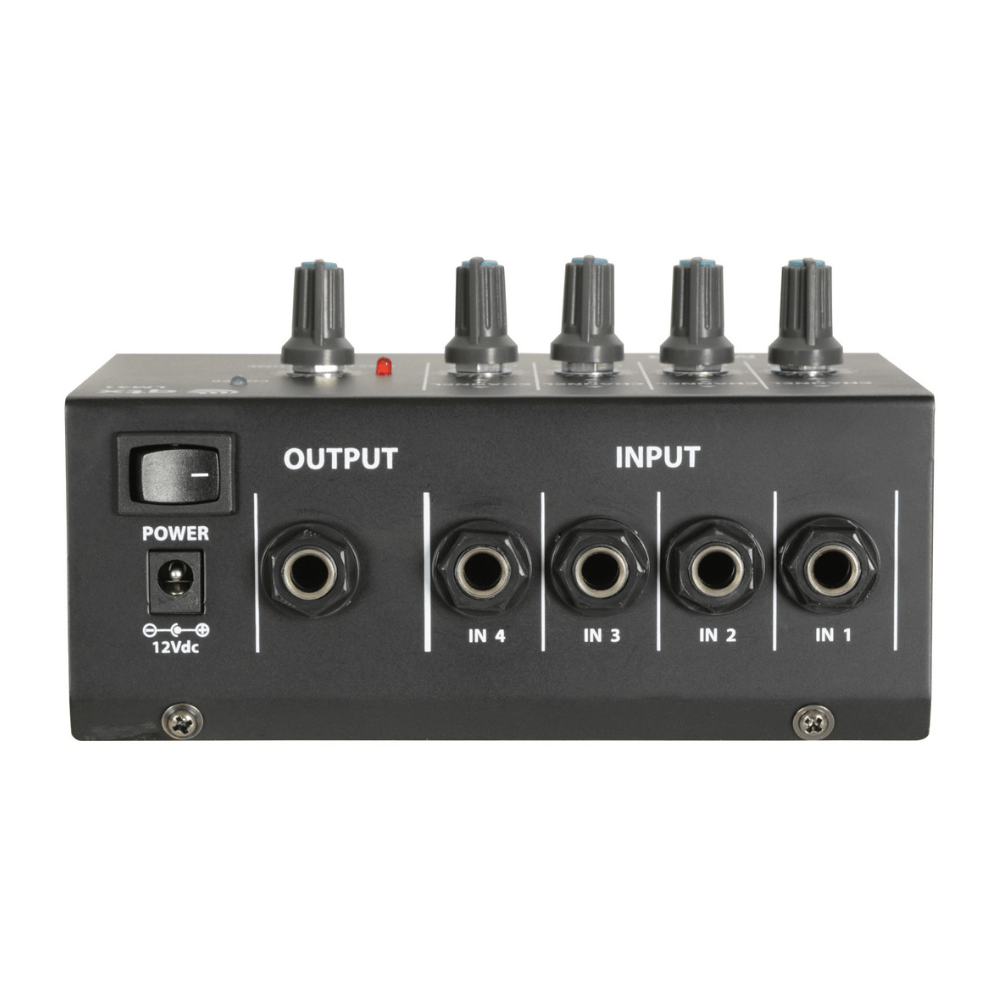

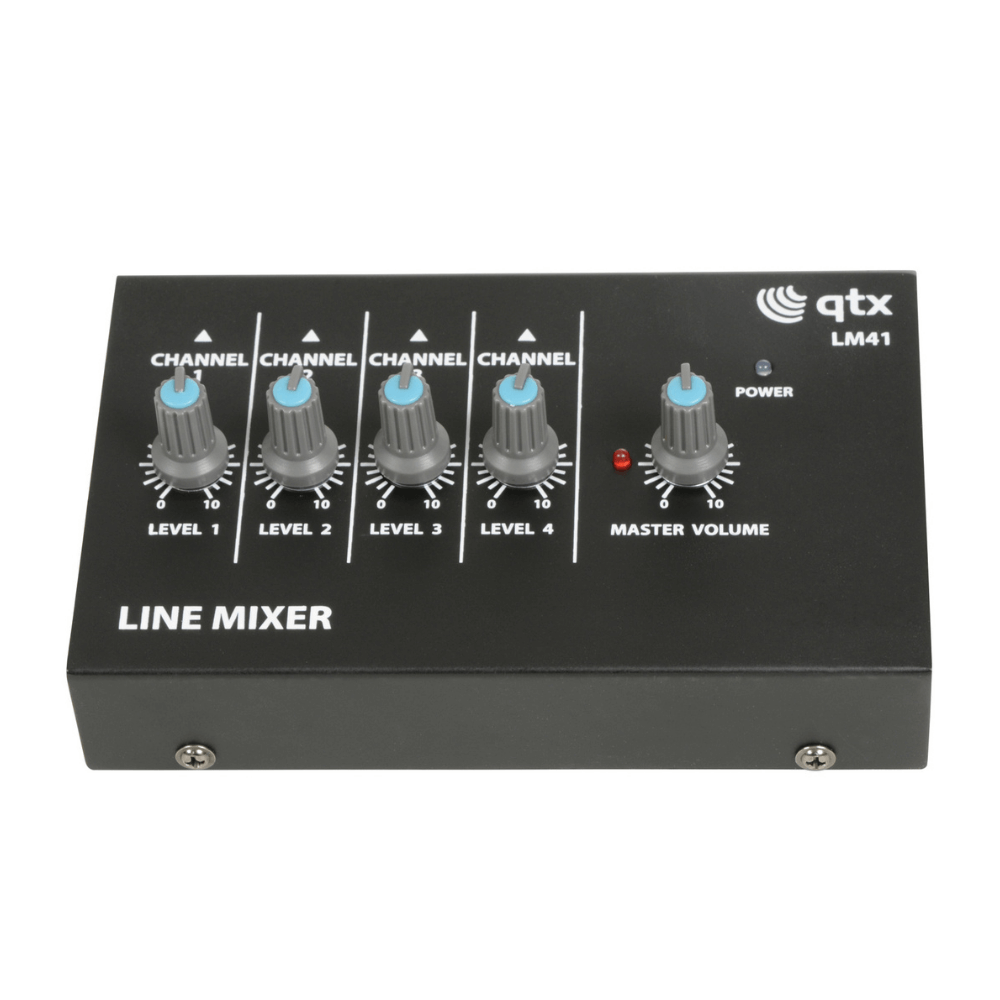

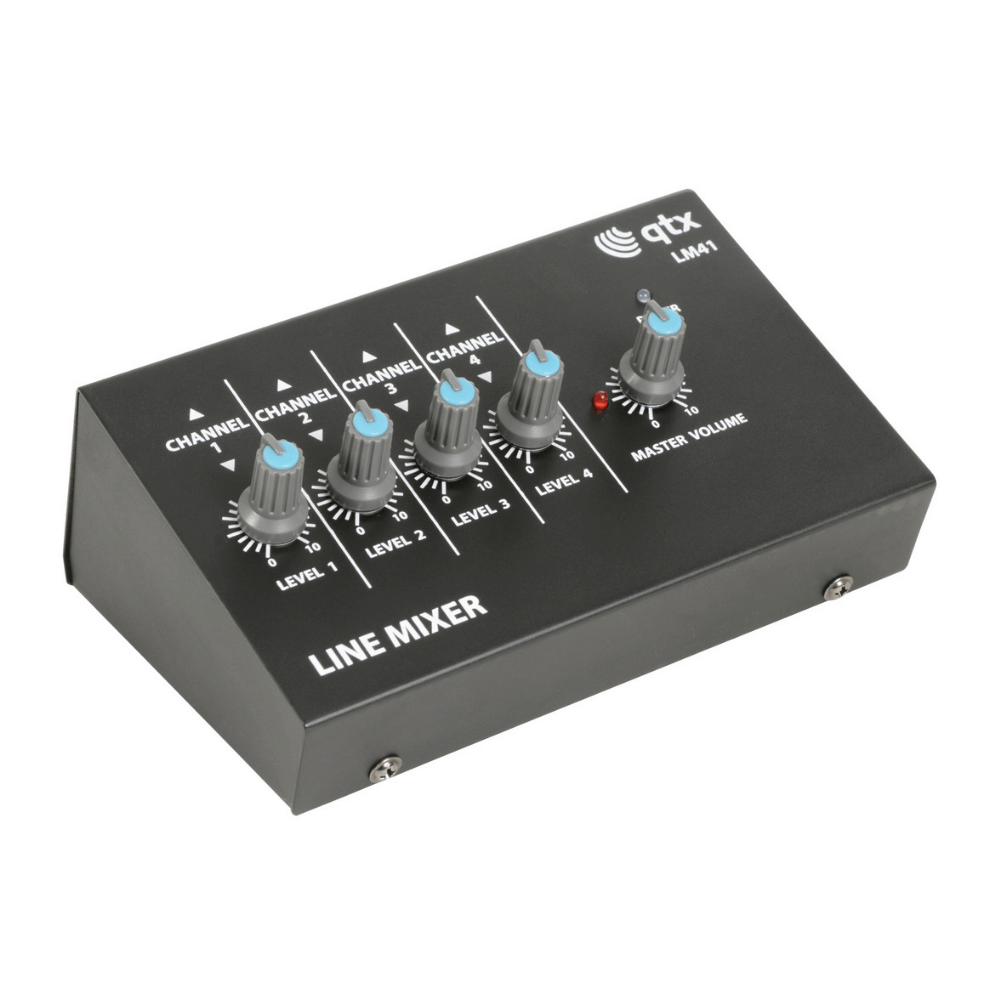

QTX LM41: 4-Channel Mono Mixer with High Impedance Inputs

The QTX LM41 is a compact 4-channel mono mini line level mixer, designed for mixing auxiliary line-level signals or instruments. It features high impedance jack inputs and provides a master jack output. Each of the four channels has separate volume controls, allowing for precise audio mixing. The mixer can be powered by a 9V battery or an optional 12V DC adaptor, making it versatile for various applications.

Features

• Compact Design: Ideal for portable use and easy integration into any setup.
• High Impedance Inputs: Suitable for connecting auxiliary line-level devices or instruments.
• Separate Volume Controls: Individual volume adjustments for each channel and master output.
• Versatile Power Options: Can be powered by a 9V battery or an optional 12V DC adaptor.

Specifications

• Battery: 9V battery (PP3 supplied)
• Power Adaptor: 12V DC, 200mA (optional)
• Output Level: +4dB (+8dB max.)
• Input Impedance: 20k Ohms
• Output Impedance: 600 Ohms
• Dimensions: 150 x 108 x 64 mm
