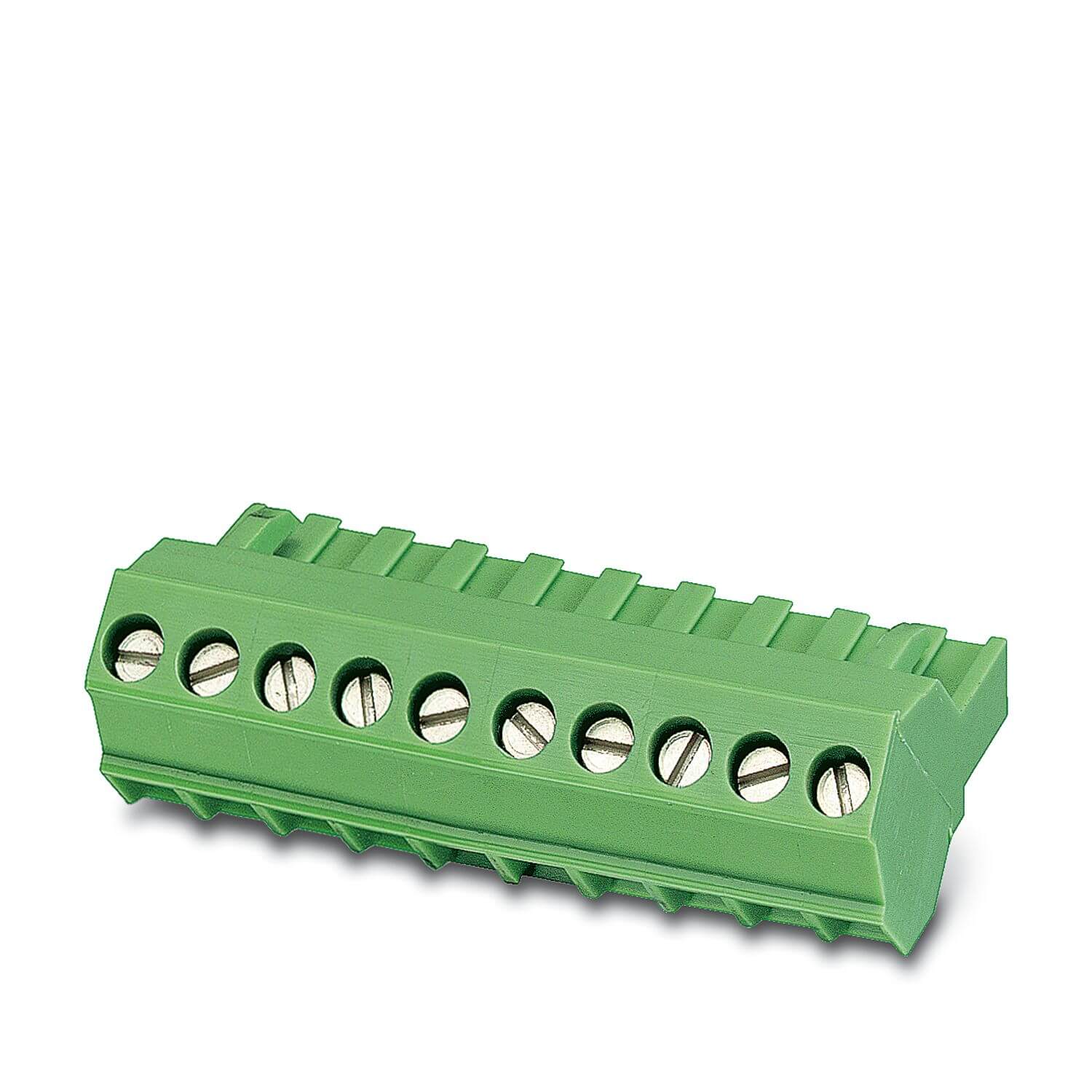

QTX ADAP 2.5 ST Plug - 3.5 ST Socket PCB Connector

The QTX ADAP 2.5 ST Plug - 3.5 ST Socket is a high-performance PCB connector designed for reliable connections in various electronic applications. With a nominal current of 12 A and a rated voltage of 320 V, this connector ensures robust electrical performance while maintaining a compact footprint. Its screw connection with tension sleeve allows for easy installation and secure connections, making it ideal for use in industrial automation and control systems.

Features

• High Current Rating: Supports a nominal current of 12 A for efficient power delivery.
• Versatile Voltage Rating: Rated for 320 V, suitable for a wide range of applications.
• Compact Design: Features a pitch of 5.08 mm, allowing for space-saving installations.
• Easy Installation: Utilizes a screw connection with tension sleeve for secure and reliable connections.
• Durable Construction: Made with high-quality materials to withstand harsh environments.

Specifications

• Nominal Cross Section: 2.5 mm²
• Number of Positions: 5
• Number of Connections: 5
• Number of Rows: 1
• Contact Connection Type: Socket
• Conductor Connection Direction: -45°
• Locking Clip: Included
• Insulating Material: PA
• Flammability Rating: UL 94 V0
• Ambient Temperature Range: -40 °C to 100 °C
