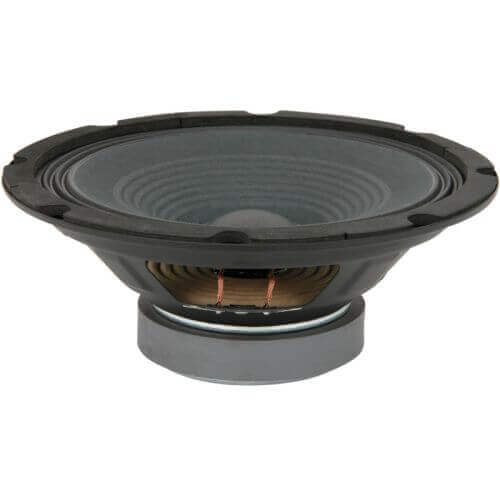

QTX 902.528UK 8" Driver for QR Speakers - 75W RMS,

The QTX 902.528UK Replacement Driver is specifically designed for the QR8A speaker box, delivering exceptional audio performance with a power rating of 75W RMS and a peak power of 150W. This 8-inch driver features a 4-ohm impedance, making it ideal for replacing the main driver in QTX Sound QR series active cabinets. With a frequency response of 55Hz to 8kHz and a sensitivity of 93dB at 1W/1m, it ensures clear and powerful sound reproduction.

Features

• High Power Handling: Rated at 75W RMS and a peak power of 150W for robust sound performance.
• Optimized for QR8A: Specifically engineered to replace the main driver in QTX QR series active cabinets.
• Vented Magnets: Designed with vented magnets for improved heat dissipation and efficiency.
• Easy Installation: Features spade terminals for quick and hassle-free connectivity.
• Wide Frequency Response: Delivers sound across a broad frequency range from 55Hz to 8kHz.

Specifications

• Impedance: 4 Ohms
• Power RMS: 75W
• Power Max: 150W
• Magnet Weight: 567g (20oz)
• Magnet Size: 18 x 100mm Ø
• Driver Diameter: 20cm (8 inches)
• Voice Coil Diameter: 35mm (1.35 inches)
• Frequency Response: 55Hz - 8kHz
• Sensitivity (SPL @ 1W/1m): 93dB
• Dimensions: 87 x 210mm Ø
• Weight: 1.35kg
