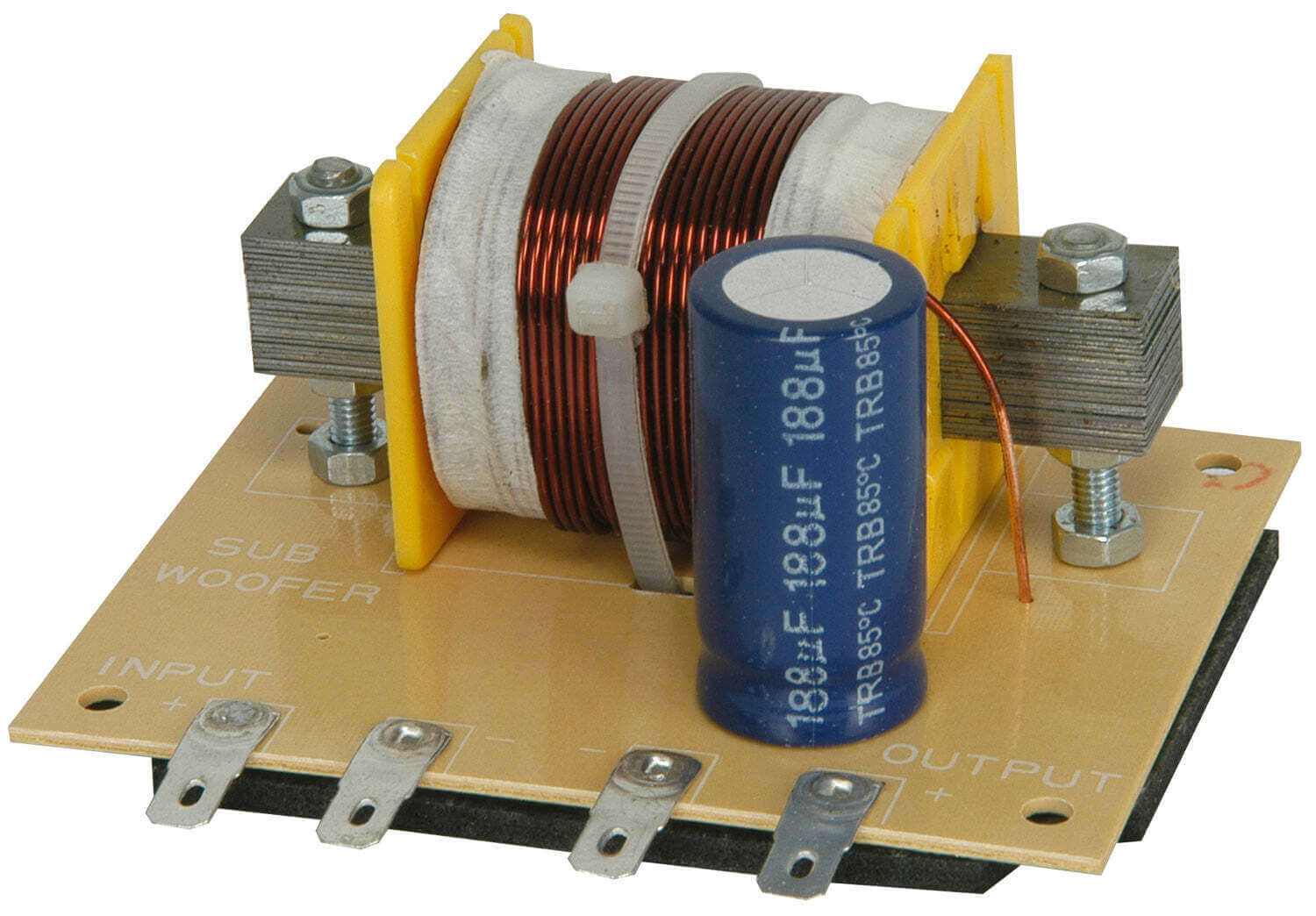

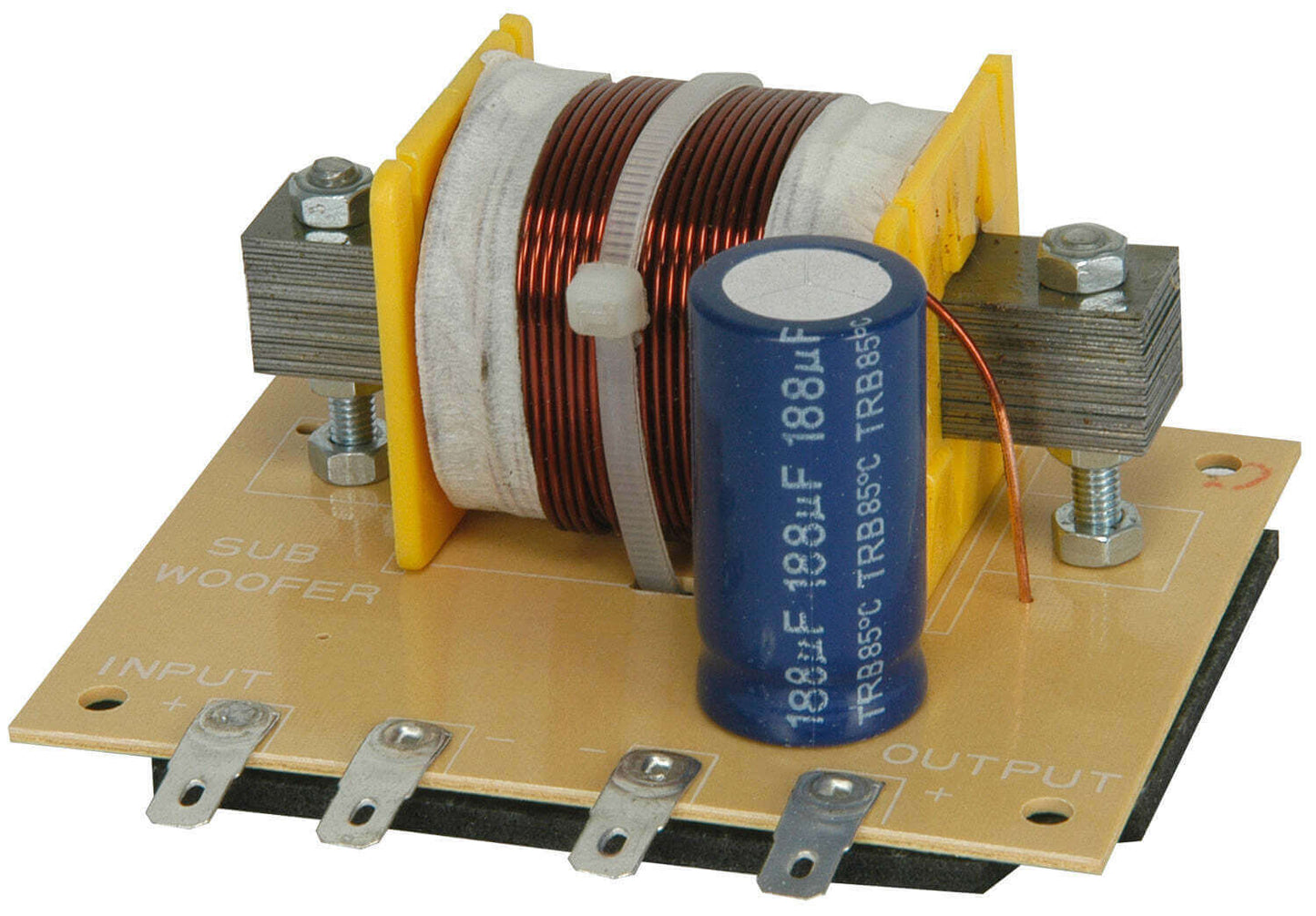

QTX 900.582 Passive Subwoofer Filter: 400W, 4 Ohms,

The QTX 900.582 is a high-performance passive subwoofer filter designed for use in Hi-Fi and PA loudspeaker systems. With a crossover frequency of 120Hz and a damping factor of 12dB/octave, this filter ensures optimal sound quality and reliability. It operates at a power peak of 400W and a continuous RMS power of 160W, making it suitable for various audio applications.

Features

• Passive Design: Ideal for Hi-Fi and PA loudspeaker systems, ensuring high-quality sound.
• Crossover Frequency: 120Hz for precise sound management.
• Damping Factor: 12dB/octave for enhanced audio clarity.
• Power Handling: Peak power of 400W and RMS power of 160W to handle demanding audio tasks.
• Impedance: 4 Ohms for compatibility with a wide range of amplifiers.
• Connections: Easy to install with solder terminal connections.

Specifications

• Model: 900.582
• Type: Passive Subwoofer Filter
• Power Peak: 400W
• RMS Power: 160W
• Impedance: 4 Ohms
• Crossover Frequency: 120Hz
• Damping Factor: 12dB/octave
