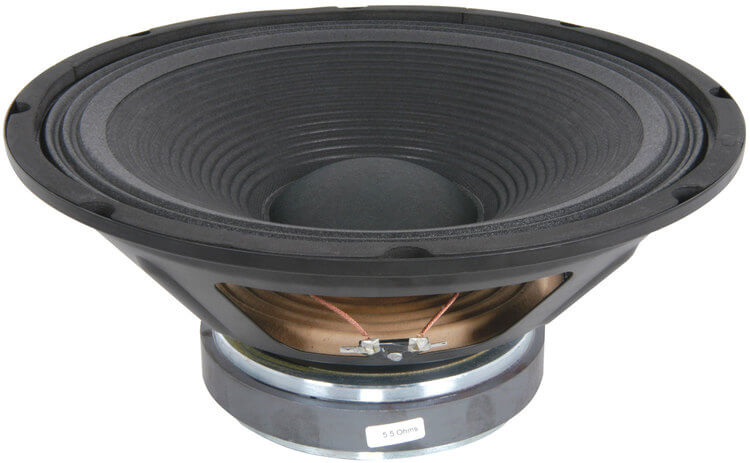

QTX 12" Replacement Driver for QS12 & QS12A Speakers

The QTX Replacement Driver for QS Series Speakers is a high-performance 12-inch speaker driver designed specifically for the QTX QS12 and QS12A models. This driver ensures exceptional sound clarity and reliability, making it an ideal choice for both professional and home audio applications.

Features

• High Power Handling: RMS power of 250W and maximum power of 500W for robust performance.
• Wide Frequency Response: Delivers sound frequencies from 45Hz to 6kHz, ensuring deep bass and clear highs.
• High Sensitivity: SPL rating of 98dB @ 1W/1m for efficient sound output.
• Durable Design: Constructed with a 52mm voice coil and a strong 1.4kg magnet for long-lasting performance.
• Compatible Models: Specifically designed for QTX QS12 (178.562UK) and QS12A (178.565UK) speaker systems.

Specifications

• Diameter: 12 inches (30 cm)
• Impedance: 8 Ohms
• Weight: 4.02 kg
• Magnet Size: 156 x 20 mm
• Voice Coil Diameter: 52 mm (2 inches)
• Dimensions: 129 mm x 307 mm Ø
