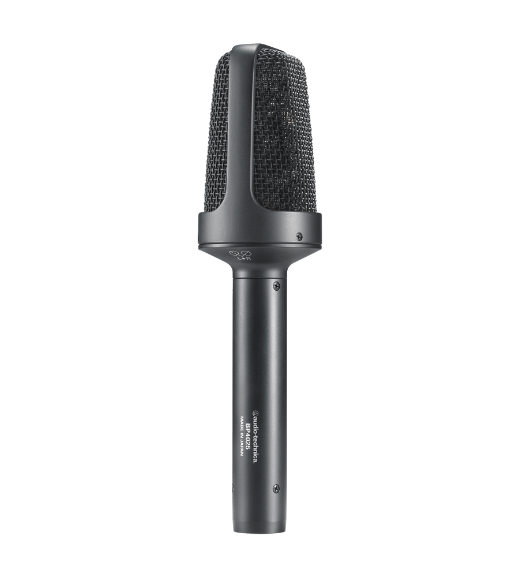

Audio-Technica BP4025 - Stereo X/Y Microphone for Camera Mount

Overview

The Audio-Technica BP4025 is designed for broadcast and professional recording, featuring large - diaphragm capsules in an innovative coincident capsule configuration. This microphone delivers pristine sound quality with exceptionally low noise and an accurate stereo image. Ideal for camera - mount use, it offers excellent channel separation and is lightweight and compact. The BP4025 is RoHS - compliant, ensuring it is free from hazardous substances, and includes a switchable low - frequency roll - off and 10 dB pad for versatile use in various environments.

Features

• Large-Diaphragm Capsules: Offers pristine sound quality with exceptionally low noise.
• Innovative Coincident Capsule Configuration: Produces an accurate stereo image in a smaller housing.
• Compact and Lightweight Design: Ideal for camera-mount use.
• Excellent Channel Separation: Ensures clear and distinct audio channels.
• Phantom Power Operation: Compatible with professional audio equipment.
• Switchable Low-Frequency Roll-Off and 10 dB Pad: Provides flexibility for different recording environments.
• Balanced Cable Included: Comes with a 5.0 m (16.5') stereo cable with 5-pin XLRF-type connector at the microphone end and two 3-pin XLRM-type connectors at the output end.
• RoHS-Compliant: Free from all substances specified in the EU directive on the reduction of hazardous substances.

Specifications

• Element: Fixed-charge back plate permanently polarized condenser
• Polar Pattern: X/Y Stereo
• Frequency Response: 20-17,000 Hz
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -32 dB (25.1 mV) re 1V at 1 Pa
• Channel Balance: <2.5 dB
• Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
• Dynamic Range: 131 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 80 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 7 mA typical (both channels total)
• Switches: Flat, roll-off; 10 dB pad (nominal)
• Weight: 269 g (9.5 oz)
• Cable: 5.0 m (16.5') long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end
• Dimensions: 186.0 mm (7.32") long, 47.6 mm (1.87") head diameter, 21.0 mm (0.83") body diameter
• Output Connector: Integral 5-pin XLRM-type

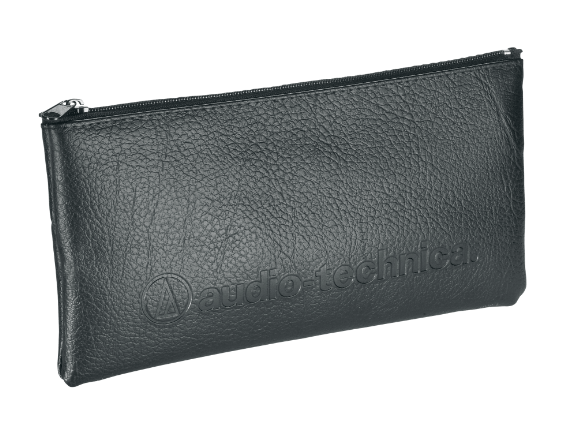

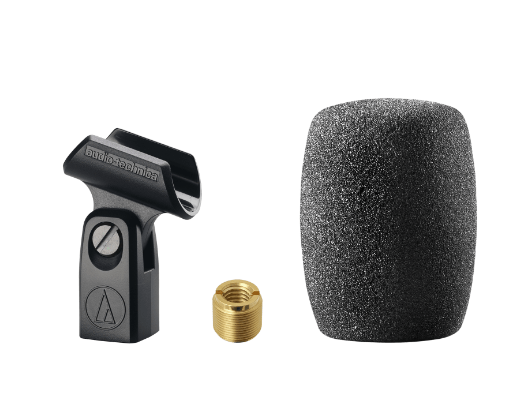

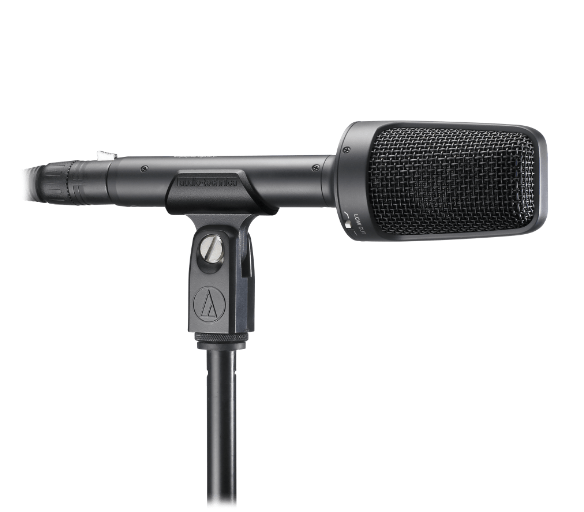

• Accessories Included: AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; soft protective pouch
• Audio-Technica Case Style: S12
