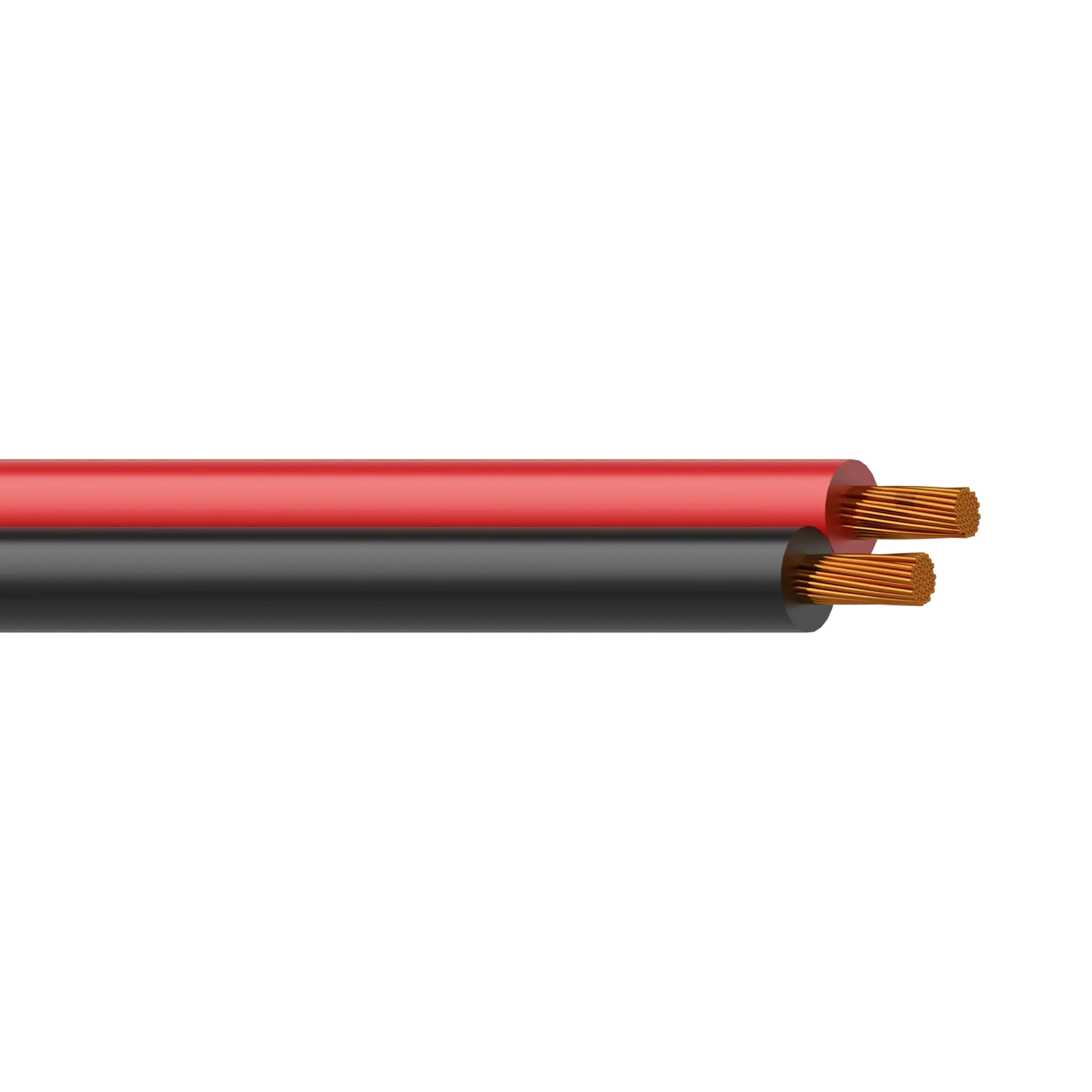

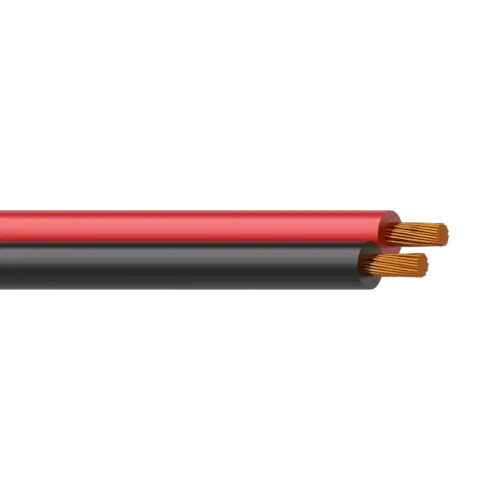

PROCAB Loudspeaker Cable - 2 x 2.5 mm² - 13 AWG - CCA - 100 Meter

The PROCAB ALS25 loudspeaker cable is an excellent choice for fixed installations, featuring a 2 x 2.5 mm² (13 AWG) design made from Copper Clad Aluminum (CCA). This innovative technology combines the benefits of copper and aluminum, resulting in a lightweight, cost-effective cable with superior conductivity. The cable is equipped with a flexible PVC jacket and color-coded polarity identification for easy installation.

Features

• High-Quality CCA Construction: Combines 85% aluminum and 15% copper for optimal conductivity and strength.
• Flexible PVC Jacket: Ensures durability and ease of handling during installation.
• Color-Coded Polarity: Simplifies connections and reduces installation errors.
• Low Lead Resistance: Features a lead resistance of 1.12 Ω per 100 meters for efficient performance.
• Temperature Range: Suitable for fixed installations with a temperature range of -40 °C to +80 °C.

Specifications

• Cable Type: 2-core loudspeaker cable
• Inner Conductor Material: CCA (Copper Clad Aluminum)
• Inner Conductor Section: 2.5 mm²
• American Wire Gauge: 13 AWG
• Outer Jacket Material: Flexible PVC
• Outer Jacket Dimensions: 3.6 x 7.4 mm (Ø)
• Max Operating Voltage: 300 V
• Bending Radius (Fixed Installation): 8 x outer diameter
• Bending Radius (Flexible Installation): 10 x outer diameter
