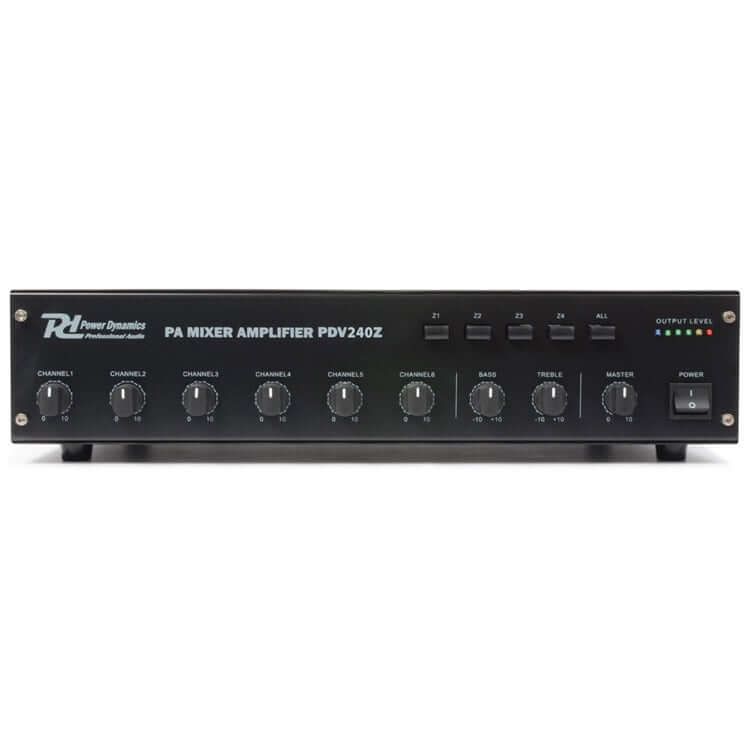

Power Dynamics PDV240Z 4-Zone 100V Amplifier - 240W RMS PA System

The Power Dynamics PDV240Z is a versatile 4-zone PA amplifier designed for a variety of applications including paging, announcements, intercommunications, and background music. With a powerful 240W RMS output, this amplifier supports multiple speaker configurations, making it ideal for installations in venues such as restaurants, bars, and industrial settings. Each of the four zones can be individually controlled, allowing for tailored audio experiences in different areas.

Features

• Four-Zone Control: Manage audio distribution across four different areas.
• Powerful 240W RMS Output: Ensures clear and loud audio for any setting.
• Adjustable Gain Controls: Customize the audio levels for each channel.
• Multiple Speaker Outputs: Compatible with 4 Ohm, 8 Ohm, 70V, and 100V setups.
• Built-in Protections: Overload, overheat, and overvoltage protections enhance reliability.
• Three Microphone Inputs: Connect multiple microphones for announcements.
• Selectable Line/Mic Inputs: Flexibility to use different audio sources.
• AUX Input and Output: Connect external devices easily.
• Record Output: Capture audio for recording purposes.
• Bass and Treble Controls: Fine-tune the audio output to your liking.
• 19-Inch Rack Mountable: Suitable for professional installations.
• Emergency Operation: Can function with a 24V DC power supply for emergency situations.

Specifications

• Power RMS: 240W
• Frequency Response: 50Hz - 18kHz
• Signal to Noise Ratio: >75dB
• Input Sensitivity (Line): -16dB
• Input Sensitivity (Mic): -50dB
• Power Supply: 220-240Vac / 50Hz
• Dimensions: 420 x 320 x 88.8 mm
• Weight: 10 kg
