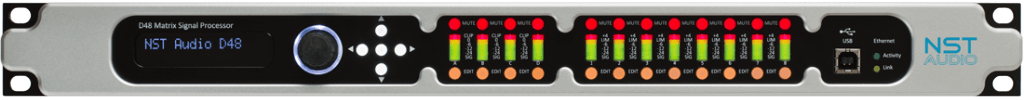

PLUS AUDIO D48: 4-In, 8-Out High-Performance Loudspeaker DSP

The PLUS AUDIO D48 is a cutting-edge loudspeaker processor and digital signal processor (DSP) designed for both live production and installations. With its extensive features and superior audio performance, it allows for unparalleled flexibility in routing and processing audio signals. The D48 supports both analogue and AES/EBU inputs and outputs, providing seamless integration into any audio system.

Features

• Flexible Input/Output: 4 analogue inputs and 2 x 2 channel AES inputs, with 8 analogue outputs and 4 x 2 channel AES outputs, all switchable between formats.
• Comprehensive Audio Processing: Each input channel features compressors, high pass filters, 6 bands of parametric EQ, and up to 1.3 seconds of delay.
• Advanced Routing Options: Capable of mix-matrix mode, free-routing, and multiple pre-configured routing setups, facilitating complex audio configurations.
• High-Quality Performance: Runs at 96kHz with a frequency response of +/-0.4dB from 20Hz to 20kHz and a dynamic range of >115dB.
• User-Friendly Control: Front panel controls allow for instant mute and editing of commonly used parameters, with preset recall functionality.
• Ethernet Control Software: Offers PC control for networked devices, enabling offline configuration and storage of preset memories.

Specifications

• Input Channels: 4 Analogue, 2 x 2 Channel AES
• Output Channels: 8 Analogue, 4 x 2 Channel AES
• Input Impedance: 10kΩ (Analogue), 110Ω (AES)
• Maximum Input Level: >20dBu
• Frequency Response: +/-0.4dB (20Hz to 20kHz)
• Dynamic Range: >115dB unweighted (in to out analogue)
• Total Harmonic Distortion + Noise: 0.0013% (+10dB @ 1kHz)
• Latency: 1.074ms (in to out, analogue, 96kHz)
• Power Requirements: 90-250VAC, 50-60Hz, <40W
• Dimensions: 482mm (W) x 213mm (D) x 44mm (H)
• Weight: 2.8kg (Net)
