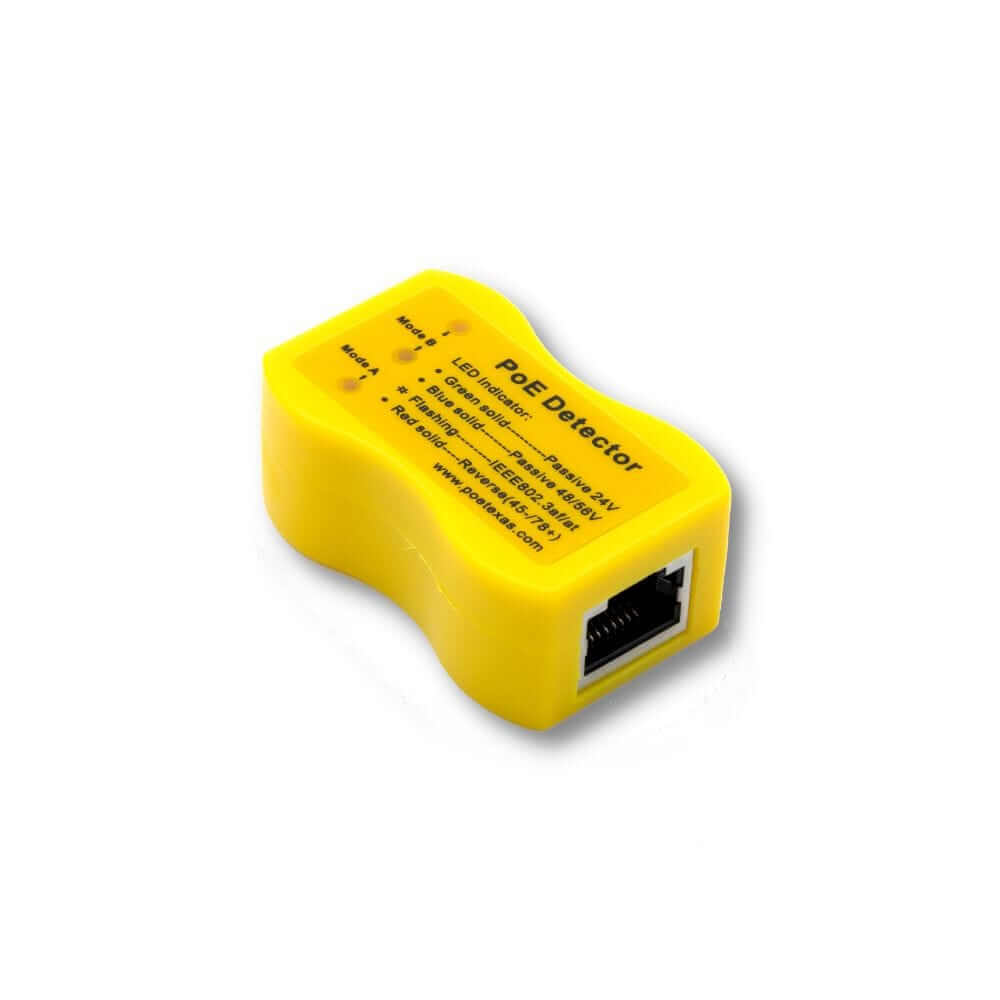

Passive PoE Detector - 802.3af/at Compatible

The Passive PoE Detector is an essential tool for network technicians, designed to efficiently test Power over Ethernet (PoE) on various ethernet cables. Compatible with Passive Injectors, 802.3af, 802.3at, 802.3bt, and both 568A and 568B wiring standards, this detector simplifies the installation and troubleshooting of PoE devices, ensuring optimal performance and reliability.

Features

• Wide Compatibility: Supports Passive PoE, 802.3af, 802.3at, 802.3bt, and both 568A/B standards.
• LED Indicators: Displays power status with clear LED indicators for Mode A/B, Passive 24V, Passive 48/56V, and 802.3af/at.
• Compact Design: Ergonomically designed for easy handling, making it convenient for use in tight spaces or while on a ladder.
• Self-Powered: Operates directly from the network line, eliminating the need for external power sources.
• Versatile Usage: Ideal for testing PoE cameras, VoIP phones, and Wi-Fi installations without interrupting data flow.

Specifications

• Compatibility: Passive PoE; 802.3af/at/bt; 568A/B; Reverse PoE
• LED Indicators: Mode A/B; Passive 24V; Passive 48/56V; 802.3af/at; Reverse PoE
• Dimensions: 6.5 x 6.0 x 2.0 cm
• Weight: 0.06 kg
• Operating Temperature Range: -10°C to 60°C
• Operating Humidity: 5% to 90%
