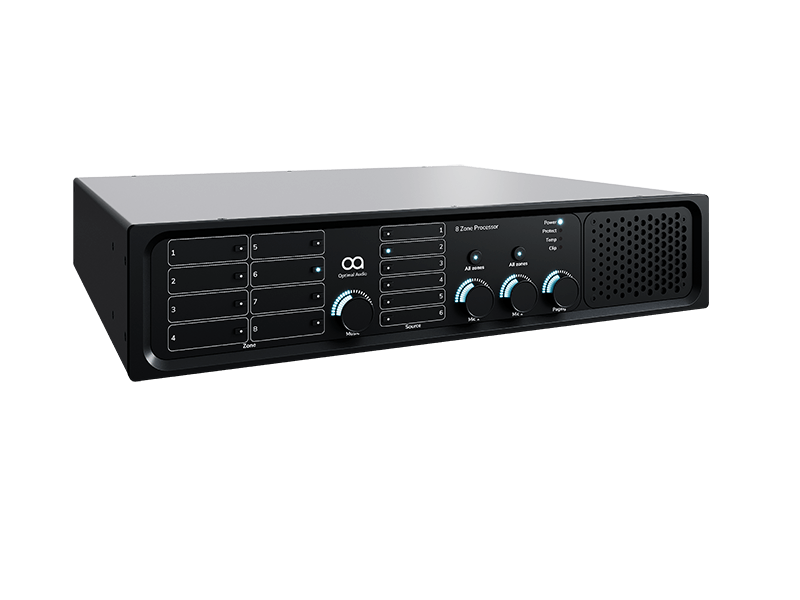

Optimal Audio Zone 8: 8-Zone Processor with DSP, Inputs & Presets

The Optimal Audio Zone 8 is a versatile 8-zone audio processor designed to manage and distribute high-quality sound across multiple areas. With advanced DSP capabilities, it allows for independent source allocation, customizable EQ settings, and built-in loudspeaker presets, making it ideal for commercial environments such as bars, restaurants, hotels, and more.

Features

• 8-Zone Control: Manage audio across eight independent zones, allowing tailored sound experiences for different areas.
• Digital Signal Processing (DSP): Built-in DSP enables speaker preset selection and custom equalization for optimal sound quality.
• WebApp Interface: User-friendly web application for easy configuration and control from any device.
• Versatile Connectivity: Includes 4 line inputs, 2 microphone inputs with phantom power, and 2 HDMI inputs for video sound.
• Programmable Presets: Fully programmable presets and timed events for automated audio management.
• Seamless Integration: Designed to work with other Optimal Audio products, enhancing overall system performance.
• Compact Design: A single compact unit that simplifies installation and reduces the need for additional equipment.

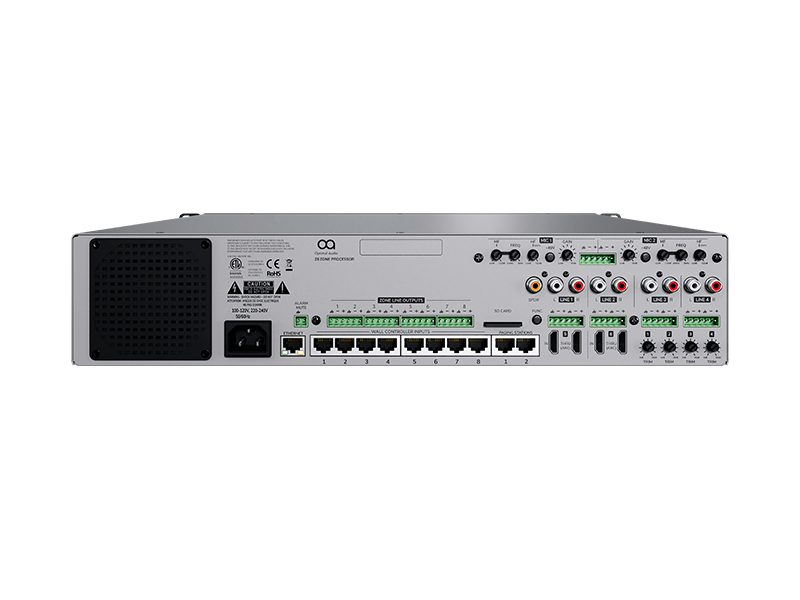

Specifications

• Type: 8 zone audio processor with DSP and loudspeaker presets
• Mic Inputs: 2 with 48V phantom power, gain range +12dB to +55dB
• Mic Input Processing: Fixed hi-pass filter @160Hz; sweepable mid-band 200Hz-5kHz, +/-12dB; HF shelf @12kHz
• Line Inputs: 4 stereo with +26dB gain trim, SPDIF option on input 1
• HDMI Inputs: 2
• Line Outputs: 8
• ZonePad Sockets: 8
• Paging Inputs (CAT 5): 2
• LAN Ethernet: 100Mbps
• Alarm Override: Yes
• Dimensions: (W) 480mm x (H) 88mm x (D) 400mm
• Weight: 9.2kg
