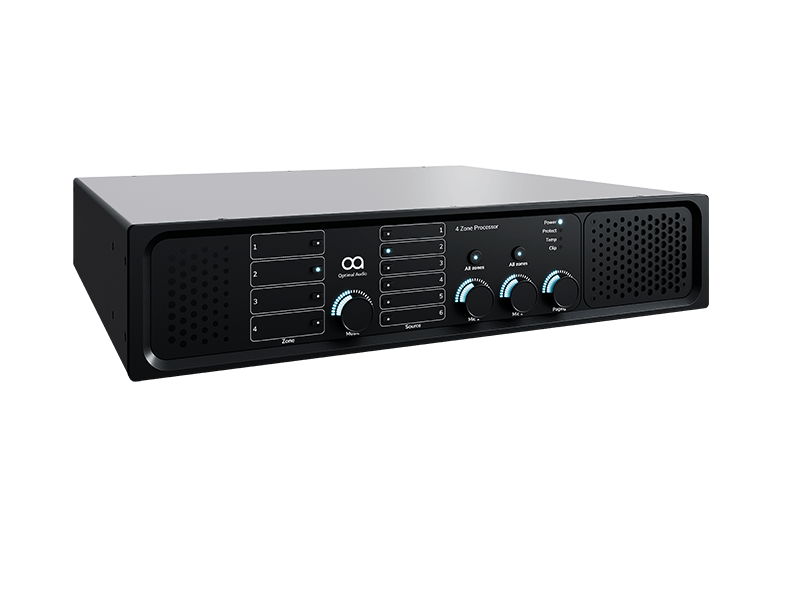

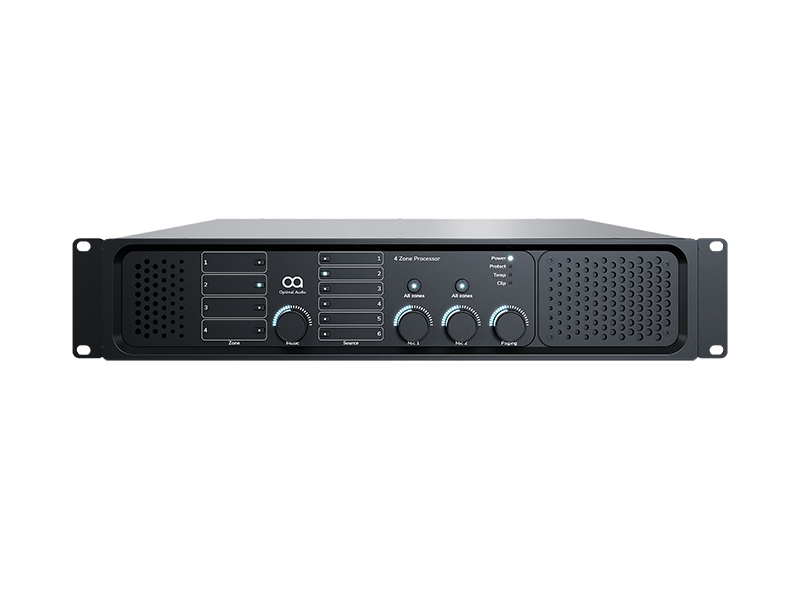

Optimal Audio Zone 4: 4-Zone DSP Processor with multiple inputs.

The Optimal Audio Zone 4 is a versatile and powerful 4-zone audio processor designed for seamless integration into commercial sound systems. With its intuitive WebApp interface, users can easily manage audio across different areas, ensuring tailored sound experiences for various environments such as bars, restaurants, hotels, and corporate offices.

Features

• 4-Zone Control: Independently manage audio in up to four zones, allowing for customized volume and source settings.
• Digital Signal Processing (DSP): Built-in DSP for advanced audio processing, including speaker presets and custom equalization.
• WebApp Interface: User-friendly web-based control for easy configuration and everyday management from any device.
• Multiple Input Options: Features 4 line inputs, 2 microphone inputs with phantom power, and 2 HDMI inputs for flexible connectivity.
• Programmable Presets: Fully programmable presets and timed events for automated audio management.
• Compact Design: All functionalities are integrated into a single unit, streamlining installation and operation.

Specifications

• Mic Inputs: 2 with 48V phantom power, +12dB to +55dB gain
• Mic Input Processing: Fixed hi-pass filter @160Hz; sweepable mid-band 200Hz-5kHz, +/-12dB; HF shelf @12kHz
• Line Inputs: 4 stereo with +26dB gain trim; SPDIF option on input 1
• HDMI Inputs: 2 for audio from TVs and video sources
• Line Outputs: 4 configurable outputs
• ZonePad Sockets: 4 for additional wall controllers
• LAN Ethernet: Yes, 100Mbps connectivity
• Alarm Override: Yes
• Dimensions: (W) 480mm x (H) 88mm x (D) 400mm
• Weight: 9.2kg
