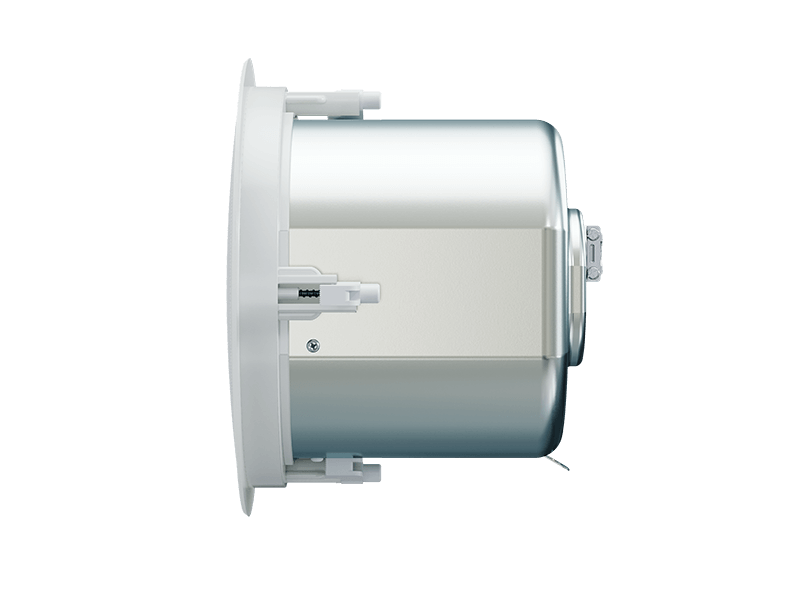

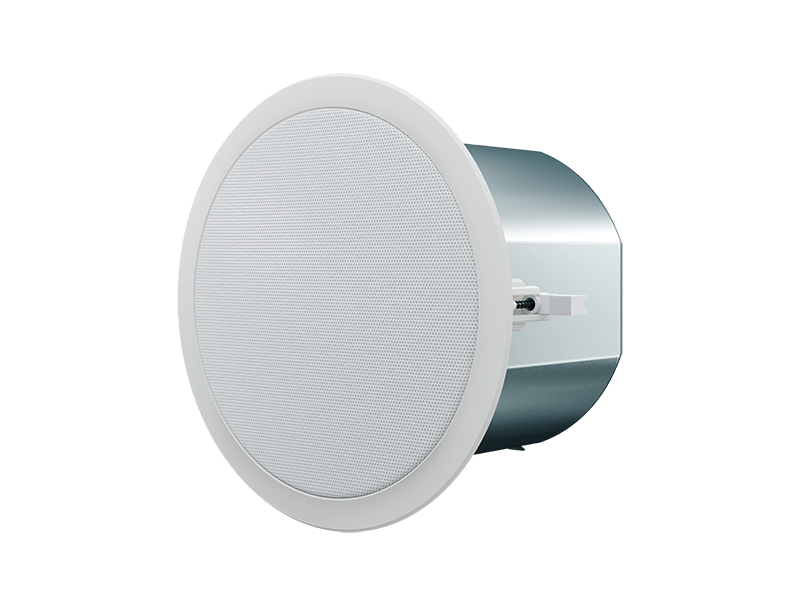

Optimal Audio Up 6: 6" Passive Ceiling Speaker, 60W, 111d

The Optimal Audio Up 6 is a high-performance two-way passive ceiling speaker designed to deliver consistent coverage and exceptional sound quality across various commercial environments. With a 6" low-frequency driver and a 0.7" metal dome tweeter, it ensures clear audio reproduction for both speech and music. Ideal for applications in hotels, restaurants, retail spaces, and more, the Up 6 offers a versatile solution for any sound installation need.

Features

• Two-Way Design: Combines a 6" low-frequency driver and a 0.7" metal dome tweeter for full-range sound.
• High Power Handling: Rated at 60W AES with a peak power of 120W, ensuring robust audio performance.
• Versatile Impedance Options: Supports 16Ω for low impedance operation and can be connected to 70V/100V systems.
• Wide Coverage Pattern: Features a conical 110° dispersion for consistent sound distribution throughout the space.
• Easy Installation: Comes with an integral fixing system for straightforward mounting and a clean finish.
• Rotary Tap Selector: Allows for simple adjustment of power taps via a rotary switch located behind the grille.
• Durable Construction: Built with a zinc-plated steel back can and a perforated steel grille, finished in neutral white.

Specifications

• Type: Two-way, full range, passive ceiling speaker
• Frequency Response: 115Hz – 18kHz ± 3dB -10dB @ 80Hz
• Drivers: LF: 6.5” (162mm), Coated paper; HF: 1” (25mm) exit/ 0.7” (20mm) Metal dome
• Rated Power: 60W (AES), 120W (Peak)
• Nominal Impedance: 16Ω
• Sensitivity: 90dB (1W/1m)
• Maximum SPL: 108dB (cont), 111dB (peak)
• Crossover: 2.7kHz passive
• Transformer Taps @ 70V: 60, 30, 15, 7.5W
• Transformer Taps @ 100V: 60, 30, 15W
• Dispersion: 110° conical
• Dimensions (inc. Grille): Ø 251mm x D 205.1mm (Ø 9.88” x D 8.08”)
• Cut-Out Diameter: 222mm (8.74”)
• Weight: 3.0kg (6.6lbs)
