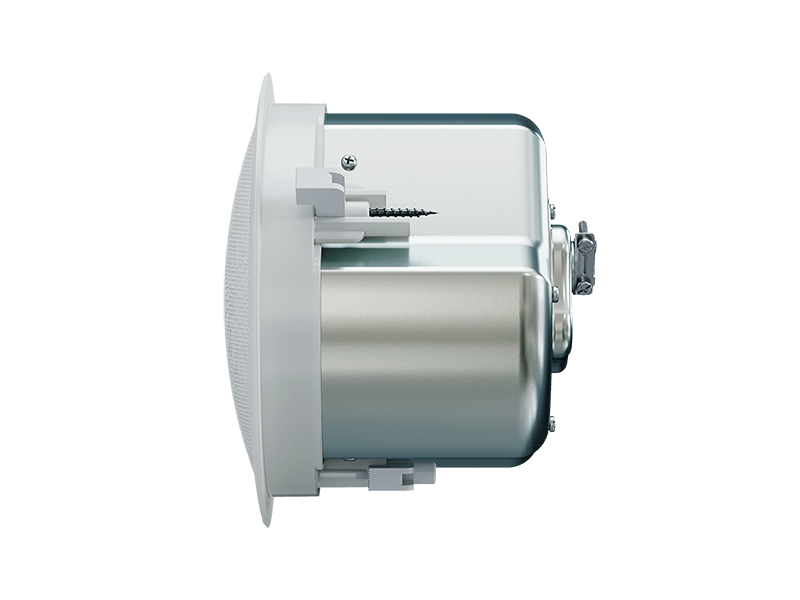

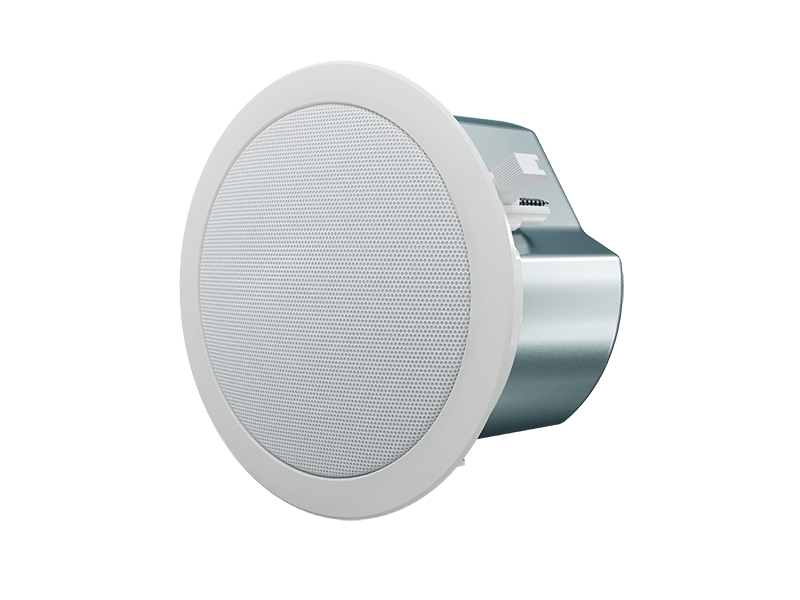

Optimal Audio Up 3: 3" Ceiling Speaker, 20W, 8Ω/

The Optimal Audio Up 3 is a discreet, passive ceiling speaker designed to deliver consistent coverage and crisp, clear sound in various commercial environments. Ideal for hotels, retail outlets, bars, and restaurants, it combines high-quality audio performance with a sleek design, ensuring minimal visual impact.

Features

• Passive Design: Requires a separate amplifier for operation, offering flexibility in system configuration.
• Integrated Mounting System: Includes an integral fixing system for easy and secure installation.
• Wide Coverage: Features a 130° conical dispersion pattern for consistent sound distribution across the listening area.
• Versatile Operation: Supports 70V, 100V, and low impedance operation, allowing for diverse installation options.

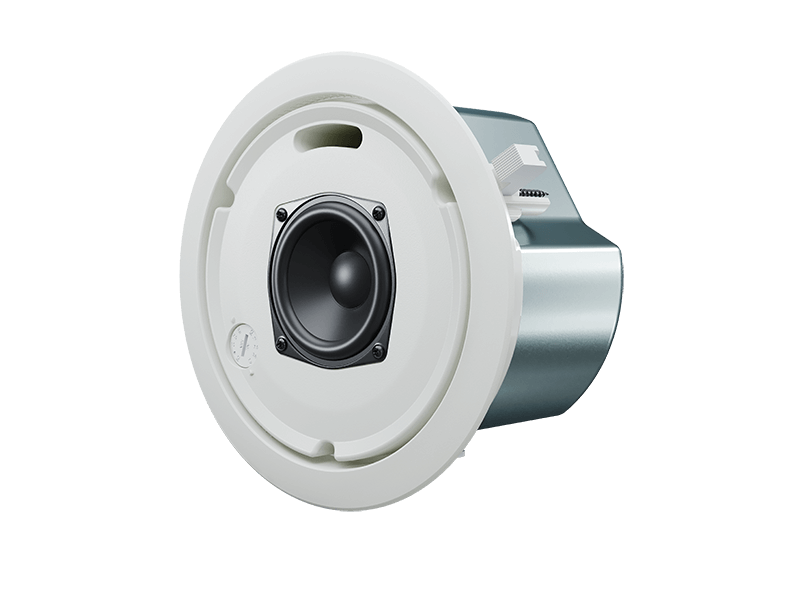

• High-Quality Audio: Equipped with a 3" (78mm) driver, ideal for background music and speech reproduction.

Specifications

• Type: Full range, passive, ceiling speaker
• Frequency Response: 95Hz – 15kHz ± 3dB-10dB @68Hz
• Drivers: 3" (78mm), Coated paper
• Rated Power: 20W (AES), 40W (Peak)
• Nominal Impedance: 8Ω
• Sensitivity (1W/1m): 84dB
• Maximum SPL: 97dB (cont), 100dB (peak)
• Recommended High-Pass Filter: 24dB/octave @ 90Hz
• Transformer Taps @ 70V: 15W, 7.5W, 3.8W, 1.9W
• Transformer Taps @ 100V: 15W, 7.5W, 3.8W
• Weight: 1.6kg (3.5lbs)
• Dimensions: Ø 202mm x D 165mm (Ø 7.95" x D 5.7")
• Cut-Out Diameter: 178mm (7.01")
