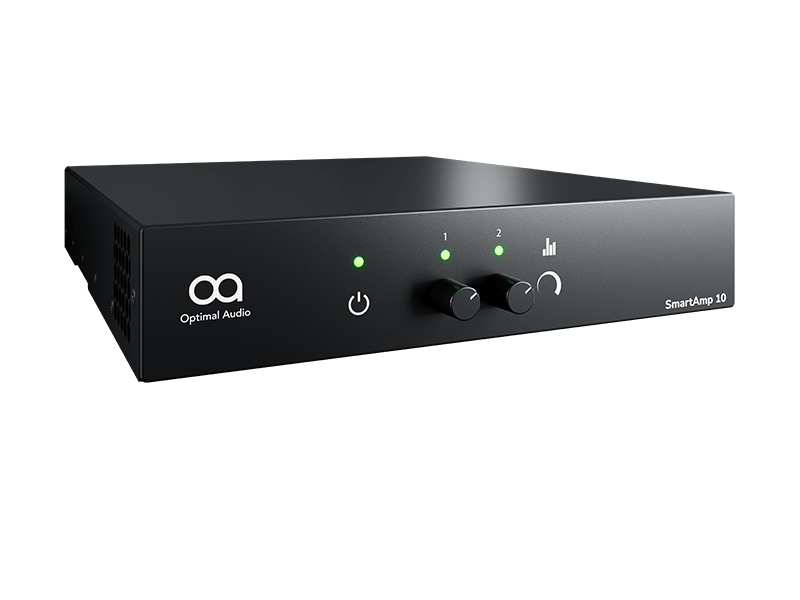

Optimal Audio SmartAmp 10: 2x125W Class D Amp with DSP & EQ.

The Optimal Audio SmartAmp 10 is a powerful and versatile 2-channel Class D amplifier designed for optimal performance with the Optimal Audio loudspeaker range. Featuring built-in Digital Signal Processing (DSP) and a compact half-width 1U design, it is ideal for various commercial audio applications, including retail, hospitality, education, and corporate environments.

Features

• 2-Channel Power Amplifier: Delivers up to 125 watts per channel at 4Ω-16Ω and 70V-100V, allowing for flexible audio distribution.
• Built-in DSP: Integrated Digital Signal Processing with EQ and limiter presets specifically tailored for Optimal Audio loudspeakers, simplifying setup and enhancing sound quality.
• Power Sharing Technology: Capable of sharing a total output of 250 watts between channels, dynamically allocating power as needed based on system requirements.
• Compact Design: Half-width 1U rackmount housing enables efficient use of space, allowing two units to be mounted side by side for up to 6 channels in a single rack space.
• Universal Mains Compatibility: Power factor correction technology ensures reliable operation worldwide with ultra-low standby power consumption.

Specifications

• Type: Class D power amplifier with DSP
• Power Output (4Ω-16Ω): 2 x 125W
• 70V-100V Output: 2 x 125W
• Cooling: Forced air cooling with fan

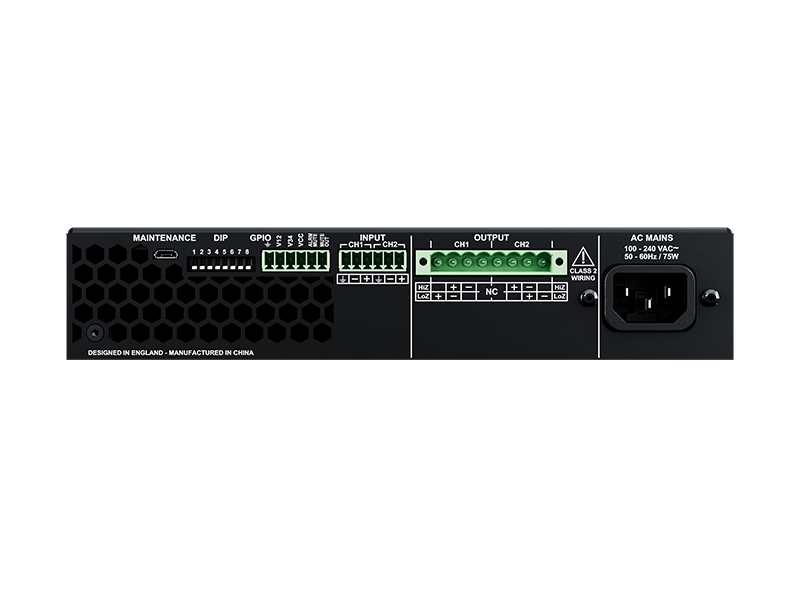

• Analogue In/Link: 2 balanced line inputs on Euroblock connectors
• Maximum Analogue Input Level: +24dBu
• Signal to Noise Ratio: > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load)
• Frequency Response: 20 Hz – 20 kHz, +0/-0.25 dB (8 Ω load, 3 dB below rated power)
• Total Harmonic Distortion: < 0.05% (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power)
• Dimensions: 220mm (W) x 44mm (H) x 277mm (D)
• Weight: 1.9kg
