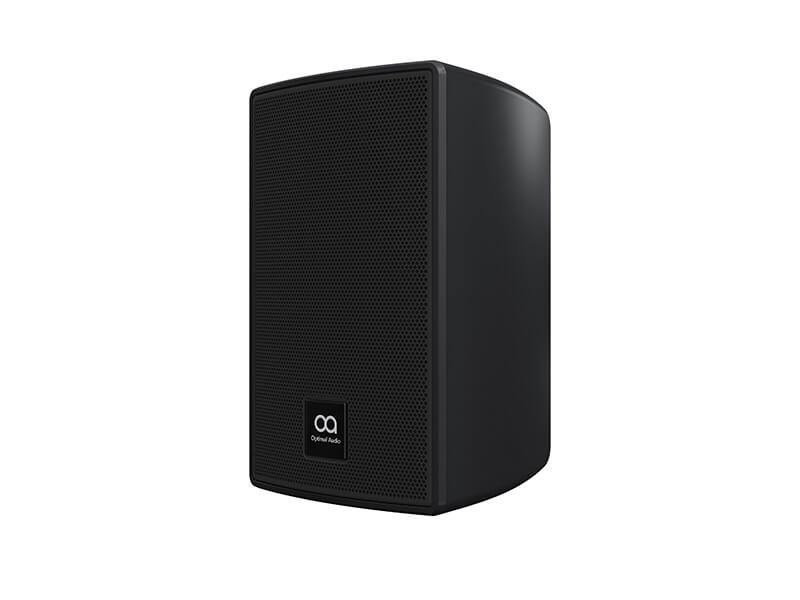

Optimal Audio Cuboid 5 TX: 5" Passive Loudspeaker, 50W, Transformer

The Optimal Audio Cuboid 5 TX is a compact and powerful two-way passive loudspeaker designed to deliver exceptional sound quality for distributed audio applications. With its integrated transformer, it is perfect for high-quality background music and speech reproduction in various environments.

Features

• Compact Design: The Cuboid 5 TX features a discreet 5-inch size that integrates seamlessly into any space without being visually imposing.
• High Performance: Delivers clear and rich audio with a maximum SPL of 105dB (continuous) and 111dB (peak), ensuring excellent sound reproduction.
• Flexible Mounting Options: Can be installed in either portrait or landscape orientation, providing versatility for different installation scenarios.
• Wide Sound Dispersion: Offers a coverage angle of 130° horizontal and 120° vertical, ensuring even sound distribution throughout the listening area.
• Weatherproof Option: An optional weatherproof terminal cover (sold separately) grants an IP54 rating, making it suitable for outdoor use.
• Transformer Integration: Compatible with 70V and 100V constant voltage systems, eliminating the need for individual amplifiers at each speaker location.
• Easy Setup: When used with the Zone series and WebApp, system setup and user control are straightforward and intuitive.

Specifications

• Type: Two-way, full range, passive 5" loudspeaker with transformer
• Frequency Response: 97Hz – 20kHz +/-3dB, -10dB @ 80Hz
• Drivers: LF: 5.25" (133mm) coated paper, ferrite motor system; HF: 0.75" (19mm) Silk Dome, neodymium motor system
• IP Rating: IP54 when used with accessory terminal cover
• Rated Power: 50 W (AES), 200W (peak)
• Nominal Impedance: 8 Ohms
• Sensitivity (1W/1m): 88dB
• Maximum SPL: 105dB (continuous), 111dB (peak) @ 8Ω
• Crossover Frequency: 2.5kHz
• Recommended High Pass Filter: 24dB Per Octave @ 70 Hz
• Transformer Taps @ 70V: 2.5, 3.75, 5, 7.5W
• Transformer Taps @ 100V: 5, 7.5, 10, 15W
• Dispersion: 130°H x 120°V
• Enclosure: ABS
• Finish: Paint
• Protective Grille: Painted Aluminium
• Connectors: 4 pin Euroblock
• Pin Connections (Input): Positive and negative in with link out terminals

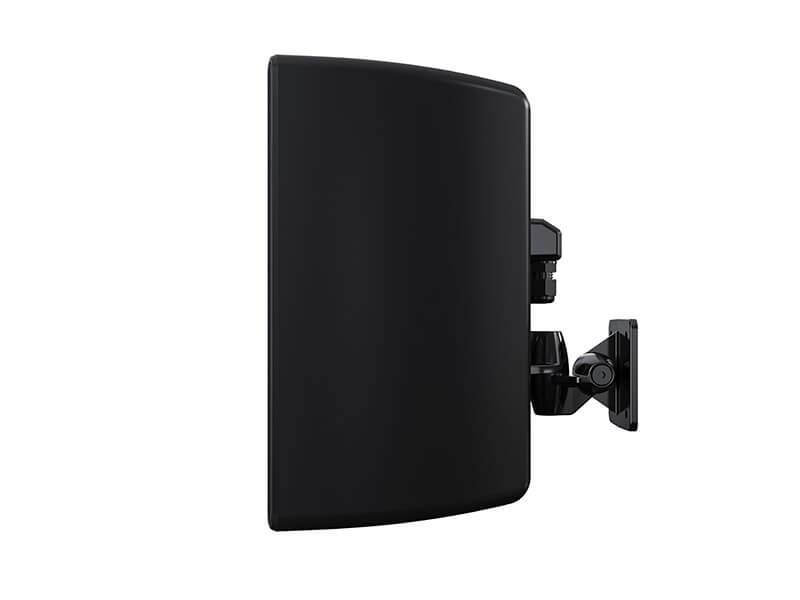

• Fittings: M4 mounting points for wall bracket
• Dimensions: (W)155mm x (H)255mm x (D)150mm
• Weight: 2.15kg (4.7lb)
