Optimal Audio Cuboid 12: 12" Passive Loudspeaker, 300W, 129

The Optimal Audio Cuboid 12 is a professional-grade, full-range, two-way passive loudspeaker, engineered to deliver exceptional sound performance for larger venues. With a robust 12" low-frequency driver and a user-rotatable high-frequency horn, the Cuboid 12 provides rich bass, clear vocals, and wide sound dispersion, making it ideal for various applications including bars, restaurants, wedding venues, and more.

Features

• Two-Way Design: Combines a 12" low-frequency driver for powerful bass and mid-range with a 1" high-frequency compression driver for vocal clarity.
• Rotatable Horn: Allows for flexible sound direction, ensuring consistent coverage in both portrait and landscape orientations.
• High SPL Output: Achieves a maximum sound pressure level of 129dB peak, making it suitable for large-scale events.
• Wide Frequency Response: Delivers audio across a frequency range of 62Hz to 20kHz, with a -10dB point at 47Hz for enhanced bass performance.
• Durable Construction: Features a trapezoid wooden cabinet with a black textured paint finish and a protective steel grille for longevity.
• Flexible Installation: Can be mounted in either portrait or landscape mode with optional mounting hardware available.

Specifications

• Type: Two-way, full range, passive loudspeaker
• Frequency Response: 62Hz – 20kHz ± 3dB, -10dB @ 47Hz
• Drivers: LF: 12” (300mm), ferrite motor system; HF: 1” (25mm) exit/1.4” (36mm) voice coil, polyimide dome compression driver
• Rated Power: 300W (AES), 1200W (Peak)
• Nominal Impedance: 8Ω
• Sensitivity (1W/1m): 98dB
• Maximum SPL: 123dB (continuous), 129dB (peak)
• Crossover: 2.5kHz passive
• Dispersion: 80˚ H x 50˚ V (user-rotatable)
• Enclosure: Trapezoid wooden cabinet
• Finish: Black textured paint
• Protective Grille: Black perforated steel with scrim cloth backing

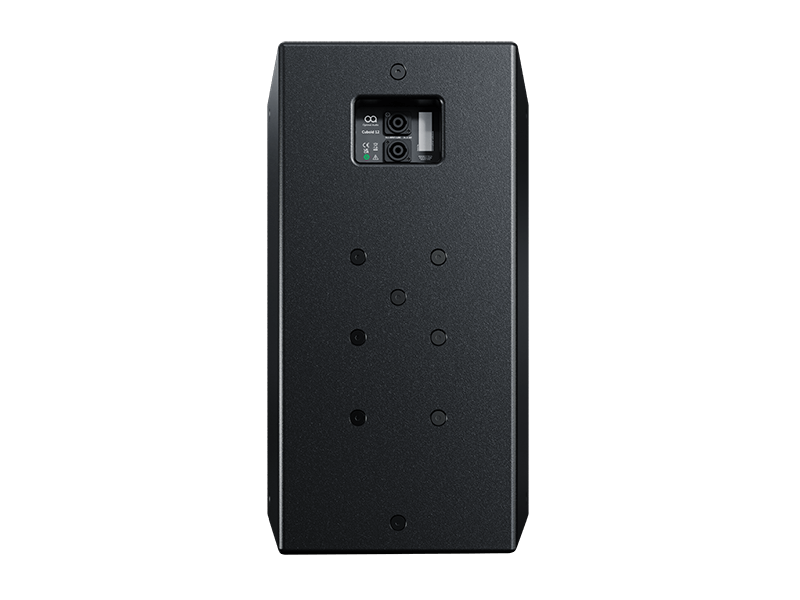

• Connectors: 2x NL4 type
• Dimensions: (W) 360mm x (H) 575mm x (D) 392mm
• Weight: 20kg (44.09lbs)
