Optimal Audio Cuboid 10: 10" Passive Loudspeaker, 250W, 126

The Optimal Audio Cuboid 10 is a compact yet powerful two-way passive loudspeaker designed for short to medium throw distances. It delivers rich, detailed sound with impressive bass and clarity, making it ideal for various indoor applications such as cafes, bars, restaurants, and more.

Features

• Compact Design: Despite its size, the Cuboid 10 offers exceptional sound quality and a maximum SPL of 126dB (peak).
• Flexible Mounting Options: The loudspeaker can be mounted in either portrait or landscape orientation for versatile installation.
• User-Rotatable Horn: The high-frequency horn can be rotated to achieve consistent coverage in both horizontal and vertical planes.
• Rich Sound Quality: Equipped with a 10" low-frequency driver for deep bass and a 1" high-frequency compression driver for clear vocal and high-frequency projection.
• Compatible with Subwoofers: For enhanced bass performance, it can be paired with Optimal Audio's Sub 10 or Sub 15.
• SmartAmp Integration: Works seamlessly with SmartAmp for optimal sound settings and driver protection at high volumes.

Specifications

• Type: Two-way, full range, passive loudspeaker
• Frequency Response: 65Hz – 20kHz ± 3dB, -10dB @ 49Hz
• Drivers: LF: 10” (254mm), ferrite motor system; HF: 1” (25mm) exit/1.4” (36mm) voice coil, polymide dome compression driver
• Rated Power: 250W (AES), 1000W (Peak)
• Nominal Impedance: 8Ω
• Sensitivity (1W/1m): 96dB
• Maximum SPL: 120dB (cont), 126dB (peak)
• Crossover: 2.8kHz passive
• Dispersion: 90˚ H x 50˚ V (user-rotatable)

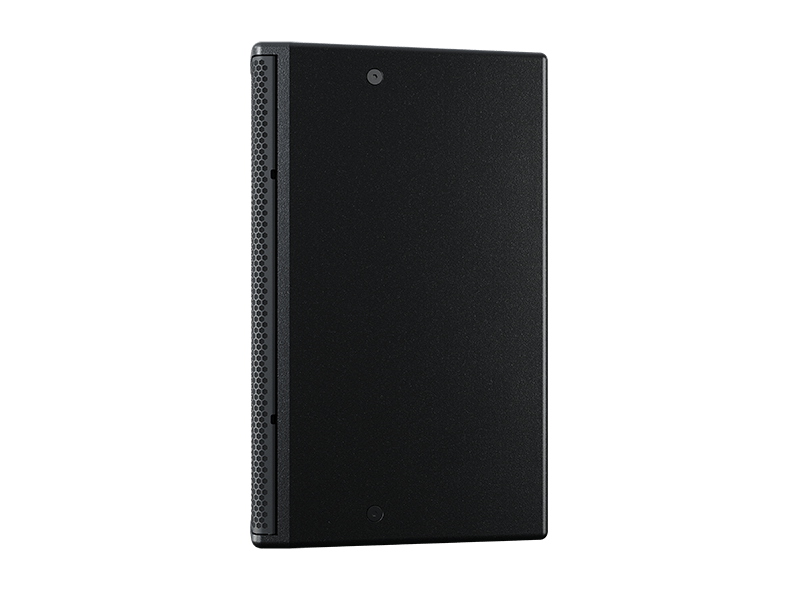

• Enclosure: Trapezoid wooden cabinet with black textured paint finish
• Protective Grille: Black perforated steel with scrim cloth backing

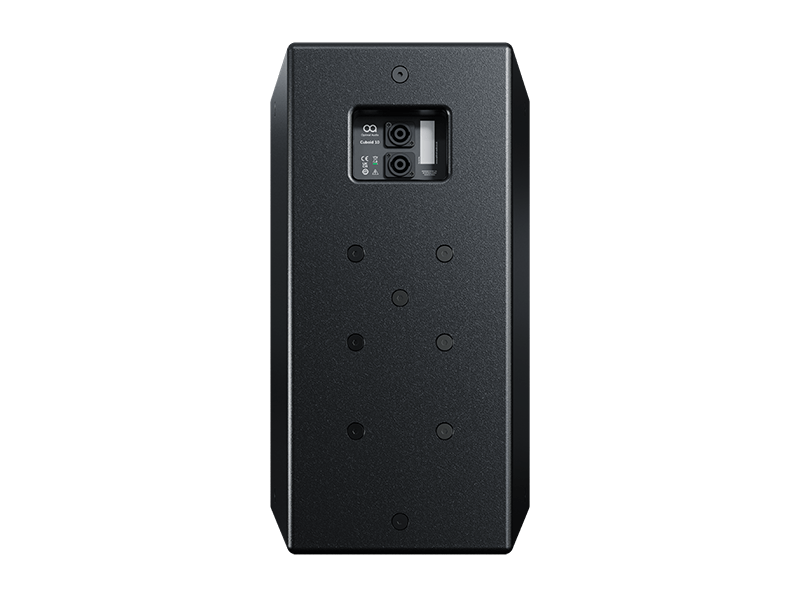

• Connectors: 2x NL4 type
• Dimensions: (W) 322mm x (H) 524mm x (D) 326mm
• Weight: 16kg (35.27lbs)
