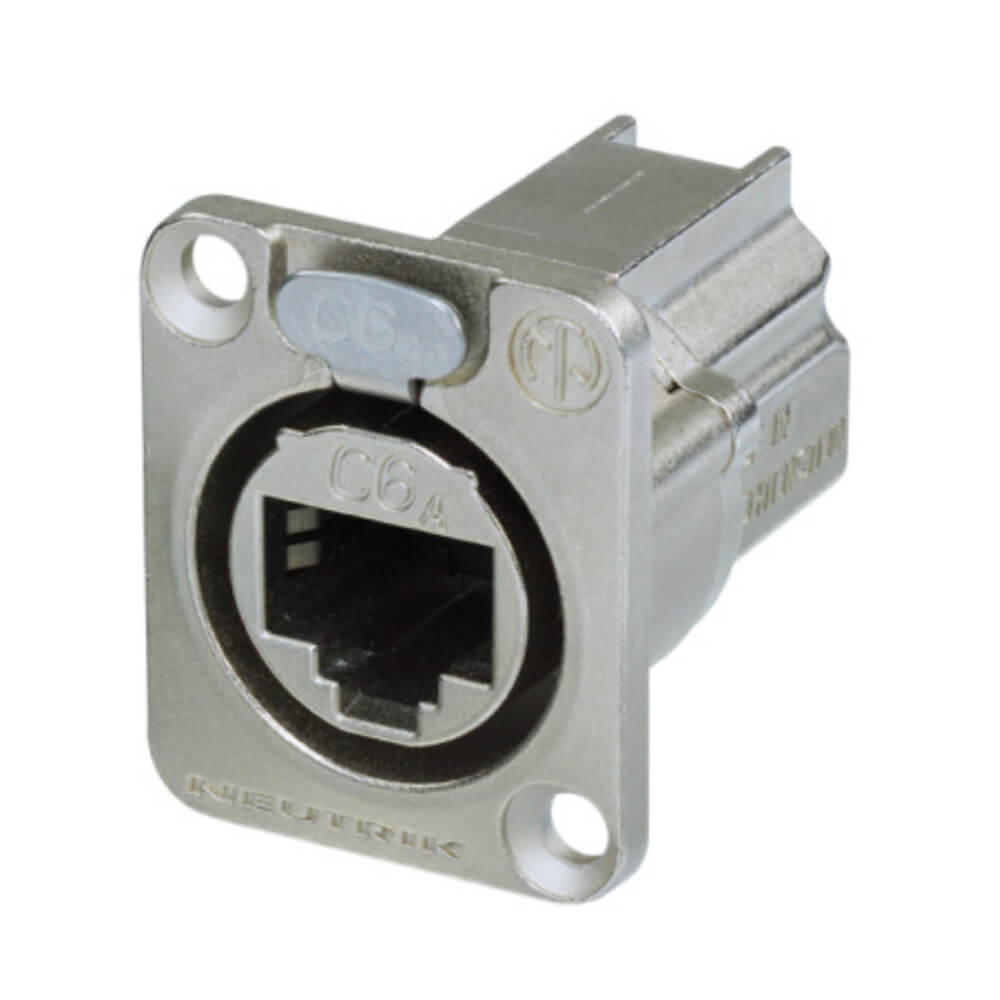

Neutrik RJ45 CAT.6A Metal Female Connector Type D Nickel - NE8FDX

The NEUTRIK RJ45 CAT.6A 8-Pole Metal Patch Female Connector Type D in Nickel is designed for high-performance data transmission. This robust connector features a shielded design for enhanced noise immunity and EMI protection, ensuring reliable connectivity in demanding environments. Its rugged latch lock system guarantees secure connections, making it ideal for professional audio, video, and data applications.

Features

• D-Shape Design: Tailored for easy integration into panel setups.
• Shielded Construction: Offers high noise immunity and EMI protection.
• Rugged Latch Lock: Proven reliability with over a million mating cycles.
• Feedthrough Wiring: Simplifies installation and maintenance.
• PoE Type 4 Class 8 Compatibility: Supports power over Ethernet up to 100W according to IEEE 802.3bt.

Specifications

• Article Number: NE8FDX-P6
• Material: Metal with Nickel plating
• Rated Current per Contact: 1.5 A
• Rated Voltage: ≤ 57 V
• Transmission Performance: CAT6A according to TIA/EIA 568C channel specifications
• Temperature Range: -40 °C to +70 °C
• Flammability: UL 94 V-0
• Lifetime: > 1000 mating cycles
• Mounting: Front mounting
