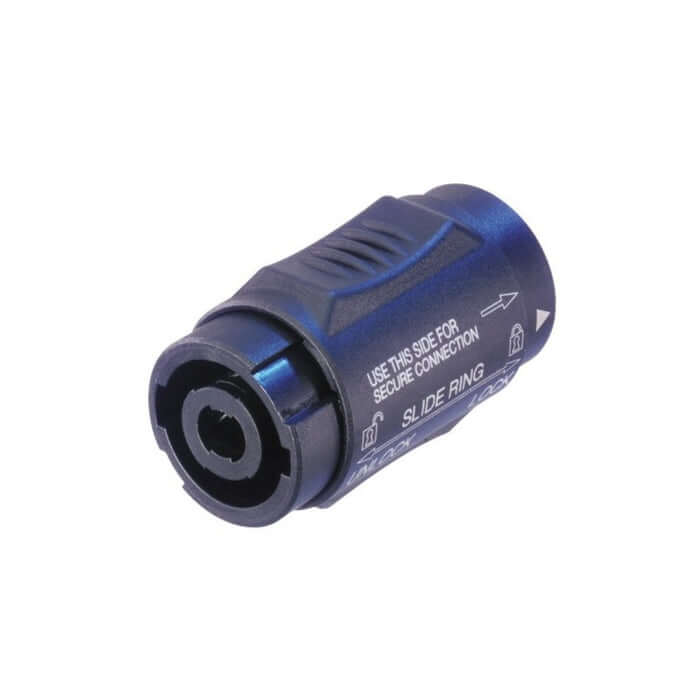

Neutrik NL-4MMX Lockable 4-Pole SpeakON Coupler Adapter

The Neutrik NL-4MMX is a robust and reliable lockable 4-pole SpeakON coupler adapter designed to connect two NL2F or NL4F SpeakON cables, extending their reach while providing a secure and durable connection. Ideal for audio professionals, this adapter is built to withstand over 5000 mating cycles and features a quick-lock mechanism for ease of use.

Features

• Lockable Design: Ensures a permanent and secure connection on SpeakON cables.
• Gender Changing: Converts a female SpeakON connector to a male connector when locked onto the cable.
• Durable Construction: Designed for over 5000 mating cycles, ensuring long-lasting performance.
• High Current Rating: Supports a rated current of 15 A RMS continuously and up to 30 A for audio signals with a 50% duty cycle.

Specifications

• Contact Resistance: ≤ 3 mΩ (after lifetime)
• Dielectric Strength: 4 kVdc (peak)
• Insulation Resistance: > 1 GΩ (after damp heat)
• Rated Voltage: 250 V (insulation)
• Temperature Range: -30 °C to +80 °C
• Contact Plating: 4 µm Ag
• Contacts Material: Bronze (CuSn6)
• Insert Material: Polyamide (PA 6 30% GR)
• Shell Material: Polyamide (PA 6 30% GR)
