NEUTRIK® NAC3CFCB 20A PowerCON Lockable 3-P

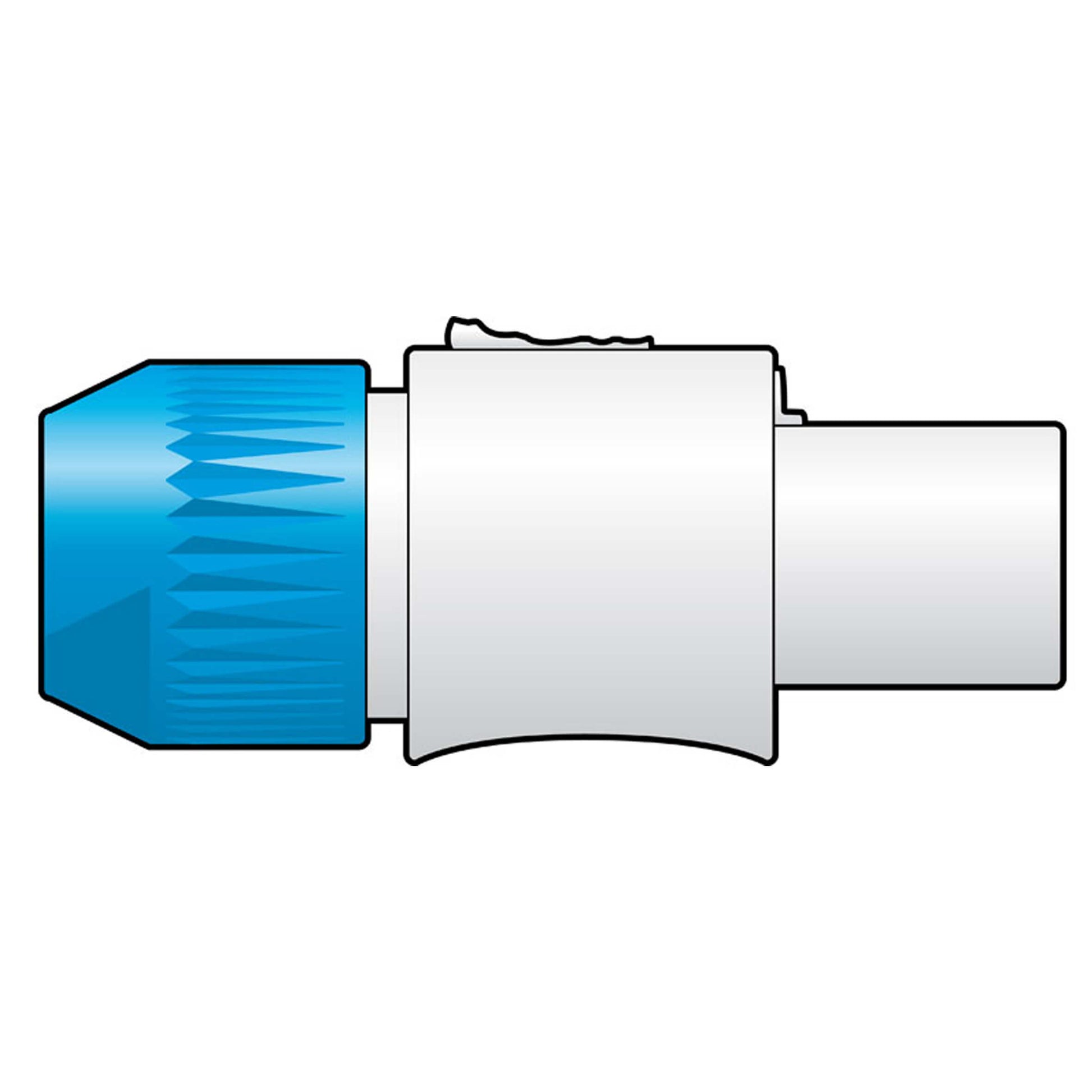

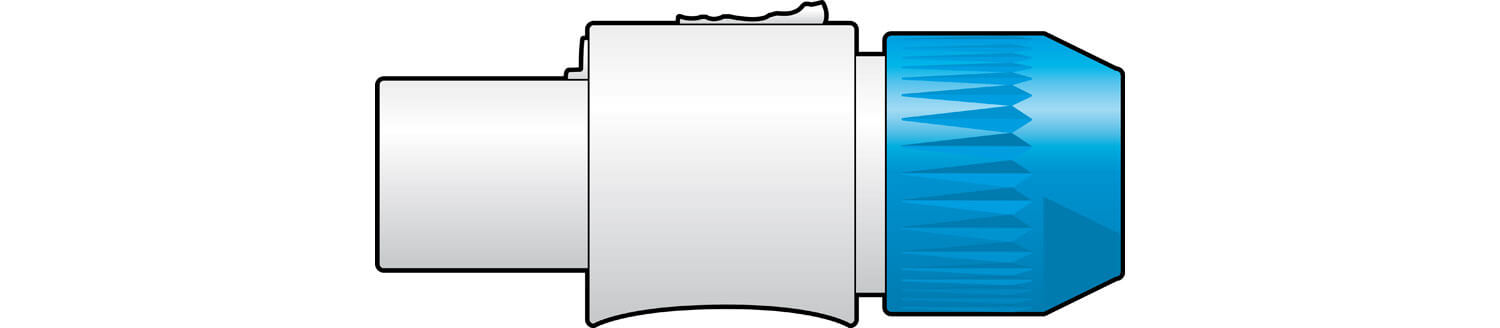

The NEUTRIK® NAC3CFCB PowerCON Output Connector is a robust and reliable locking 3-pole connector designed for mains power output applications. Rated at 20A/250Vac, this connector features a unique twist-lock mechanism that ensures a secure connection, making it ideal for professional audio, lighting, and other demanding environments. With its ergonomic design and durable materials, the NAC3CFCB offers excellent performance and longevity, ensuring a safe and efficient power connection.

Features

• Lockable Design: Prevents accidental disconnections, ensuring a secure power connection.
• Rated for 20A/250Vac: Suitable for high-power applications, providing reliable performance.
• Quick Lock Mechanism: Fast and easy twist-lock latching system for convenient use.
• Ergonomic Design: Allows for easy handling and connection in various setups.
• Unique Chuck Type Strain Relief: Provides improved kink protection and enhances durability.
• UL and cUL Recognized Components: Ensures compliance with safety standards for reliable operation.

Specifications

• Contact Resistance: ≤ 3 mΩ
• Dielectric Strength: 4 kVdc / 2.8 kVac
• Insulation Resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
• Number of Electrical Contacts: 2 + PE
• Cable O.D. Range: 6 - 15 mm
• Lifetime: > 1000 mating cycles
• Wiresize: 2.5 mm² (12 AWG)
• Temperature Range: -30 °C to +80 °C
• Protection Class: IP20
• Flammability Rating: UL 94 HB
