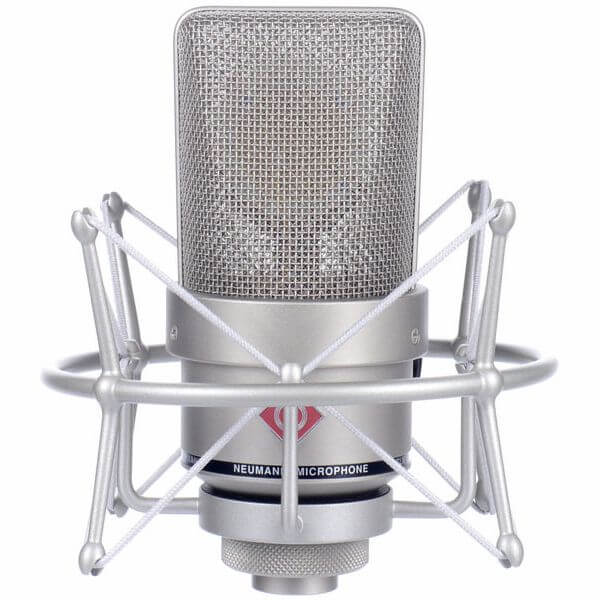

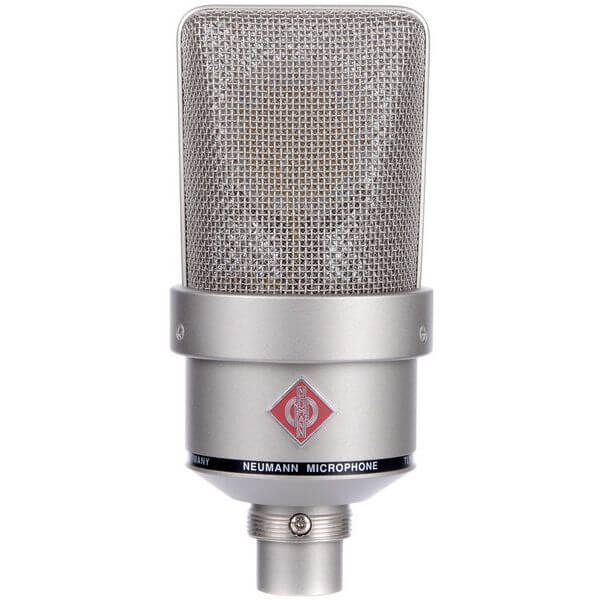

The Neumann TLM 103 Studio Set is a premium large diaphragm condenser microphone that embodies the sonic excellence of the legendary U 87 Ai. Featuring a fixed cardioid polar pattern and an exceptionally low self-noise level of only 7 dB-A, it captures vocals and instruments with stunning clarity and precision. This set includes an EA 1 elastic suspension mount to minimize handling noise, making it ideal for studio recordings, live performances, and broadcast applications. With a frequency response of 20 Hz to 20 kHz and a maximum SPL of 138 dB, the TLM 103 is versatile enough to handle everything from delicate whispers to loud instruments without distortion.

Features

• Capsule Design: Modeled on the legendary U 87 Ai, offering a classic sound profile.
• Acoustic Principle: Pressure gradient receiver for accurate sound reproduction.
• Low Self-Noise: Only 7 dB-A, perfect for capturing quiet sources without background noise.
• High Sensitivity: 23 mV/Pa, ensuring excellent performance even with budget preamps.
• Max SPL: Handles sound pressure levels up to 138 dB without distortion.
• Cardioid Polar Pattern: Focuses on sound from the front while rejecting noise from the sides and rear.
• Included Accessories: Comes with an EA 1 elastic suspension mount to reduce vibrations and handling noise.

Specifications

• Frequency Response: 20 Hz - 20 kHz
• Equivalent Noise Level (A-weighted): 7 dB-A
• Max SPL for THD 0.5%: 138 dB
• Sensitivity: 23 mV/Pa
• Rated Impedance: 50 ohms
• Supply Voltage: 48 V ± 4 V (phantom power required)
• Dimensions: 60 mm (diameter) x 132 mm (length)
• Weight: Approx. 450 g
• Color: Nickel
