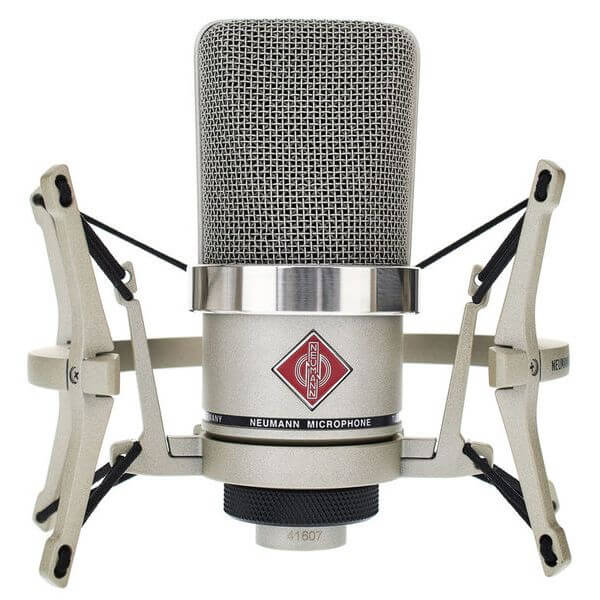

Neumann TLM 102 Studio Set Large Diaphragm Microphone, Cardioid, Nickel, Elastic Suspension

The Neumann TLM 102 Studio Set is a compact yet powerful large diaphragm condenser microphone designed for both studio and live applications. With its cardioid polar pattern and integrated pop screen, it delivers exceptional sound quality, making it an ideal choice for vocals, guitars, drums, and a wide range of instruments. This microphone embodies Neumann's renowned craftsmanship and engineering excellence, ensuring that even the smallest studios can achieve professional results.

Features

• Compact Design: Despite its small size, the TLM 102 offers a big sound, making it Neumann's most affordable large diaphragm microphone.
• Superior Sound Quality: Features a newly developed large diaphragm condenser capsule that provides clear and focused sound with superb definition.
• Cardioid Polar Pattern: Effectively captures sound from the front while minimizing background noise, making it ideal for studio and live settings.
• Integrated Pop Screen: Reduces plosive sounds, enhancing vocal recordings without the need for additional accessories.
• Transformerless Output Stage: Ensures powerful bass response and a direct sound without transmission losses.
• High Maximum SPL: Capable of handling sound pressure levels up to 144 dB without distortion, perfect for loud sources.
• Low Self-Noise: With an equivalent noise level of only 12 dB-A, it operates quietly, making it suitable for capturing delicate sounds.
• Wide Frequency Range: Covers a frequency response of 20 Hz to 20 kHz, accommodating a variety of instruments and vocal types.

Specifications

• Acoustical Operating Principle: Pressure gradient transducer
• Directional Pattern: Cardioid
• Frequency Range: 20 Hz to 20 kHz
• Sensitivity at 1 kHz: 11 mV/Pa
• Rated Impedance: 50 ohms
• Equivalent Noise Level (A-weighted): 12 dB-A
• Maximum SPL for THD 0.5%: 144 dB
• Signal-to-Noise Ratio (A-weighted): 82 dB
• Maximum Output Voltage: 13 dBu
• Supply Voltage: 48 V ± 4 V
• Current Consumption: 3.5 mA
• Matching Connector: XLR 3 F
• Weight: Approx. 210 g
• Diameter: 52 mm
• Length: 116 mm
