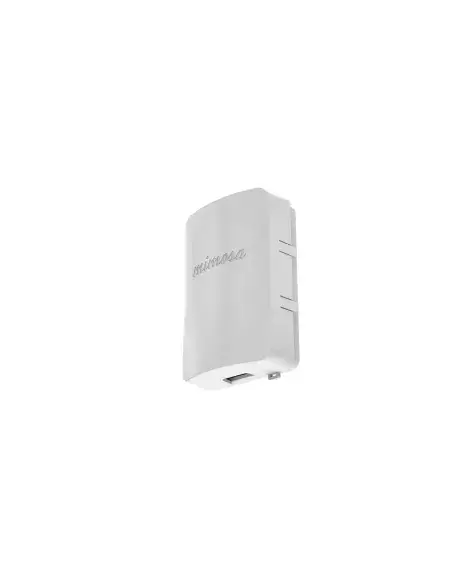

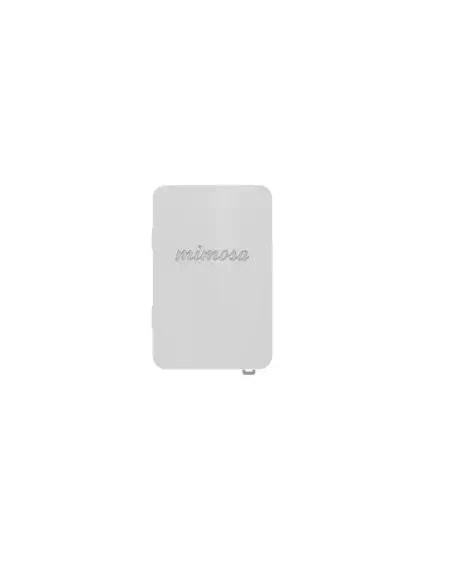

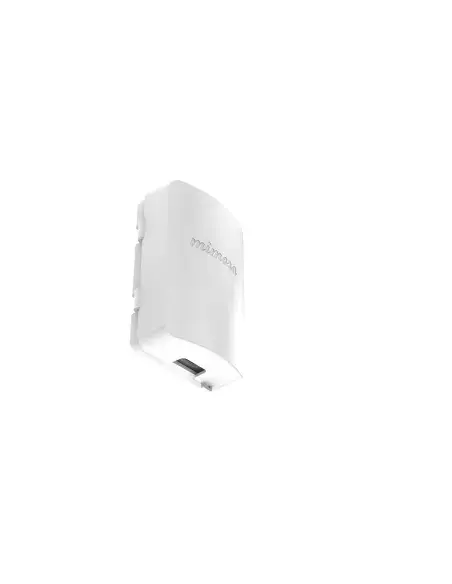

Mimosa Surge Arrestor - Network Interface Device

The Mimosa Surge Arrestor is a cost-effective gigabit Network Interface Device (NID) designed to protect electrical systems from electrostatic discharge (ESD) surges. This device is engineered for outdoor use, providing essential ESD protection, outdoor technician access, and a reliable grounding point for all radio installations.

Features

• Cost-effective Protection: Safeguards electrical systems from ESD surges.
• Outdoor Mounting: Designed specifically for exterior wall mounting, facilitating easy access for technicians.
• Grounding Point: Serves as a grounding point for all radio installations, ensuring enhanced safety.
• Rugged Construction: Built to withstand outdoor conditions with an IP54 rating for dust and water resistance.
• Easy Installation: Features a foam cable entry seal and security fastener tie point for secure and tidy installations.

Specifications

• Dimensions: 42 x 131 x 84 mm
• Weight: 0.13 kg
• Data Transfer Rate: Gigabit rated
• Connectors: Two (2) RJ-45
• DC Sparkover: 90 V @ 100 V/s
• Impulse Sparkover: 550 V @ 1000V/μs
• Impulse Discharge Current: 10 kA
• Capacitance: < 1.0 pF @ 1 MHz
• Mounting: Wall mount
• Operating Temperature: -40 to +55 C
• Humidity: 5 to 100% condensing
• Environmental Protection: IP54
