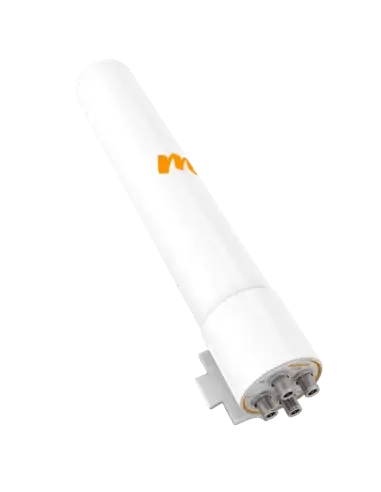

Mimosa N5-360 4x4 MIMO Antenna - 15 dBi, 360°

The Mimosa N5-360 is a revolutionary 4-port beamforming antenna designed exclusively for Mimosa’s A5c access point. It operates across a wide frequency range of 4.9 to 6.4 GHz, providing exceptional coverage and performance for MicroPoP deployments, enhancing throughput with balanced dual-stream coverage over a full 360 degrees.

Features

• 4-Port Beamforming: The industry's first 4-port antenna designed for comprehensive coverage and enhanced performance.
• Quad-180º Overlapping Antenna Polarizations: This unique design doubles coverage for MicroPoP deployments, resulting in a 3 dB beamforming gain.
• Wide Frequency Range: Operates from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies.
• High Gain: Delivers a gain of 15 dBi, ensuring strong signal strength and reliability.
• Compact Design: Measures 492 mm in height and 80 mm in width, making it suitable for various installations.
• Durable Construction: RoHS compliant and IP67 rated, ensuring longevity and reliability in outdoor environments.

Specifications

• Frequency Range: 4.9 to 6.4 GHz
• Gain: 15 dBi
• Vertical Beamwidth: 8 Degrees
• Horizontal Beamwidth: 360 Degrees
• Isolation: 25 to 40 dB
• Dimensions: 492 x 80 mm (H x W)
• Weight: 1.11 kg
• Connector Type: N-Type Female
• Operating Temperature: -40 to 55 Degrees Celsius
• Ingress Protection: IP67
