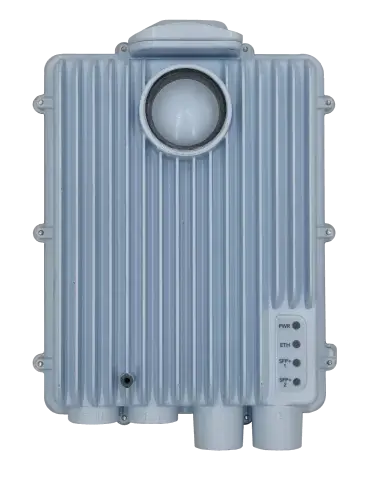

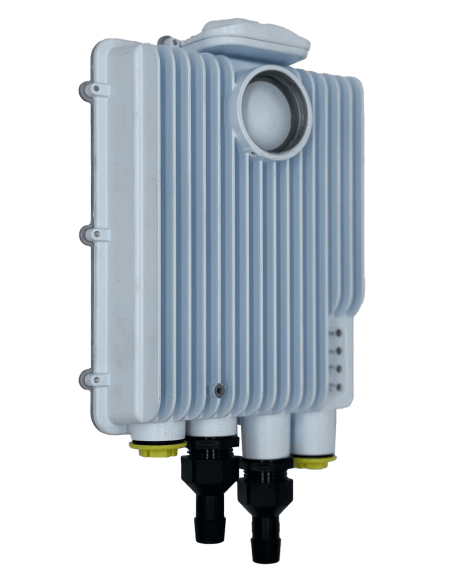

Mimosa B6X - 5.15-6.425GHz PTP Backhaul Radio

The Mimosa B6X is a cutting-edge, high-speed point-to-point backhaul radio designed for unlicensed spectrum, delivering exceptional performance for short to medium-range links. With modular capabilities and advanced features, it achieves speeds up to 3.0 Gbps, making it an ideal choice for service providers looking to bridge connectivity gaps efficiently.

Features

• Ultra-Reliable Connectivity: Achieves speeds of up to 3.0 Gbps with low latency under 1 ms, ensuring seamless data transmission.
• Modular Design: Compatible with N5-X twist-on antennas, allowing for flexible deployment options tailored to specific needs.
• Extended Frequency Range: Operates across 5.15 to 6.425 GHz, providing robust performance in various environments.
• IP67 Rated: Designed to withstand harsh weather conditions, ensuring durability and longevity.
• GPS Synchronization: Enables rapid network expansion by collocating with other GPS-enabled radios.
• Mimosa Management Platform: Simplifies monitoring and management of link health, facilitating proactive maintenance.
• Advanced Noise Mitigation: Features OFDMA modulation to reduce unlicensed spectrum interference.

Specifications

• Max Throughput: Up to 3.0 Gbps IP aggregate (3.4 Gbps PHY)
• Frequency Range: 5150–6425 MHz
• Max Output Power: 28 dBm
• Power Consumption: 30 W Max
• Operating Temperature: -40°C to +55°C
• Dimensions: 290 mm (H) x 167 mm (W) x 89 mm (D)
• Weight: 1.7 kg
• IP Rating: IP67
• Modulation: 4x4 MU-MIMO; OFDMA 1024QAM
• Antenna Compatibility: N5-X antennas (not included)
