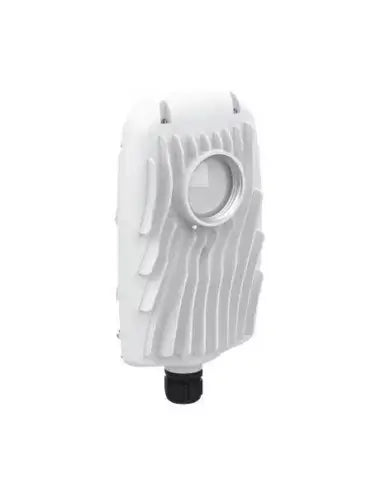

The Mimosa B5X is a high-performance point-to-point (PTP) radio designed for short to medium range relay and tower links, offering exceptional speed and reliability in unlicensed spectrum. It operates within the 4.9 to 6.4 GHz frequency range and is equipped with advanced features for optimal connectivity.

Features

• Ultra-Reliable Connectivity: Achieve speeds up to 1.5 Gbps with less than 1ms latency, ensuring consistent performance.
• Extended Frequency Range: Operates within 4.9–6.4 GHz, allowing for flexibility and adaptability to various network conditions.
• Modular Design: Compatible with X-series twist-on antennas (12 dBi to 30 dBi), enabling customization based on specific deployment needs.
• GPS Sync Technology: Unique GPS synchronization allows for channel reuse and efficient spectrum management, making it ideal for collocation.
• IP67 Rating: Built to withstand harsh environmental conditions, ensuring durability and reliability in outdoor applications.
• Easy Monitoring: Instant link monitoring capabilities simplify network management and help maintain optimal performance.

Specifications

• Max Throughput: Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
• Low Latency: <1 ms in auto mode
• Frequency Range: 4.90–6.40 GHz; Restricted by country of operation
• Max Output Power: 30 dBm (single frequency), 27 dBm (dual frequency)
• Dimensions: Height: 241 mm, Width: 139 mm, Depth: 76 mm
• Weight: 1.4 kg
• Power Consumption: 20 W Max
• Operating Temperature: -40°C to +55°C
• Ingress Protection: IP67
