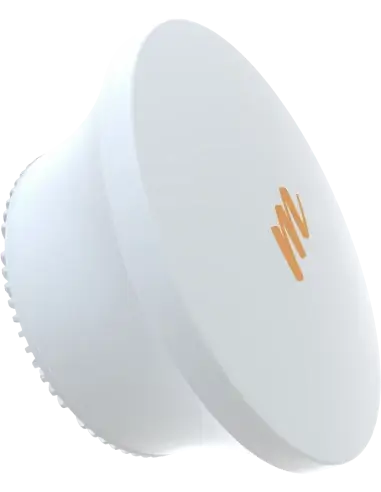

Mimosa B24 - 24GHz PTP Radio

The Mimosa B24 is a cutting-edge point-to-point (PTP) radio that delivers exceptional performance with up to 1.5 Gbps of aggregate speed in the unlicensed 24 GHz frequency band. Designed to meet modern internet traffic demands, it dynamically adjusts bandwidth based on usage, providing low latency and high reliability for various applications.

Features

• High-Speed Connectivity: Achieves up to 1.5 Gbps of aggregate speed, ideal for high-demand environments.
• Dynamic Bandwidth Adjustment: Automatically adjusts bandwidth based on upstream and downstream demand, optimizing performance.
• Low Latency: Delivers low latency of only 1 ms, ensuring quick data transmission.
• Compact Design: Lightweight and compact, making it easy to install in various locations.
• Solar-Friendly: Consumes only 19.5W of power, suitable for low-cost backup solutions.
• IP67 Rated: Weatherproof and durable, designed to withstand harsh outdoor conditions.
• Multi-Link Capability: Supports up to eight collocated links operating at 1.5 Gbps each, maximizing spectrum utilization.

Specifications

• Frequency Range: 24.05 - 24.25 GHz
• Max Power Consumption: 19.5 W
• Dimensions: 260 mm (H) x 260 mm (W) x 134 mm (D)
• Weight: 2.76 kg
• Antenna Gain: 33 dBi
• Operating Temperature: -40°C to +55°C
• IP Rating: IP67
• MIMO: 4x4:4 MIMO OFDM up to 256 QAM
• Max PHY Rate: 1.7 Gbps PHY
• Low Latency: Less than 1 ms
• Supported MAC: TDMA, TDMA-FD
