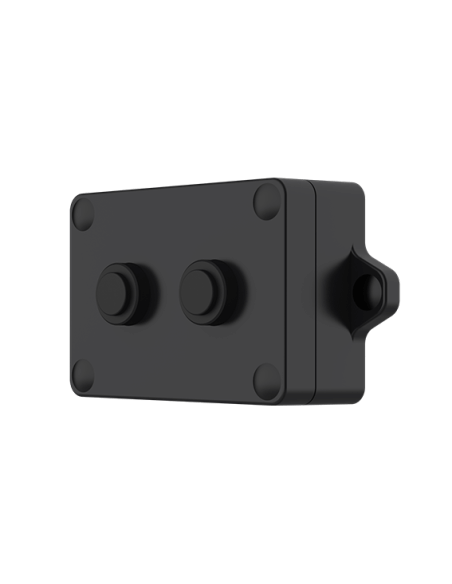

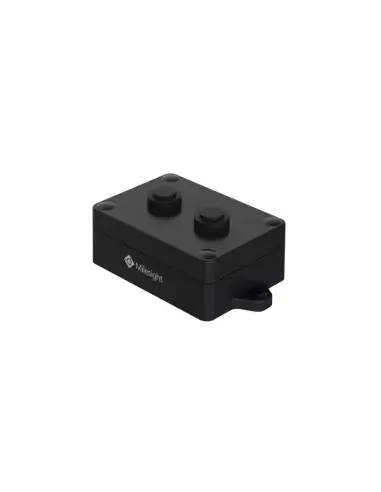

Milesight Ultrasonic Distance/Level Sensor - SFF Model

The Milesight Ultrasonic Distance/Level Sensor EM310-UDL is designed for precise and efficient distance and level detection in various applications, including smart waste management and parking solutions. With its robust features and long-range capabilities, this sensor is ideal for remote monitoring and data collection.

Features

• Non-contact Measurement: Accurately measures distance and levels without physical contact with the medium.
• Ultra-wide Distance Transmission: Capable of transmitting data up to 10 km in line of sight.
• IP67 Waterproof Enclosure: Designed to withstand harsh environmental conditions, ensuring durability and reliability.
• Long Battery Life: Built-in battery designed to last for over 10 years with regular use.
• NFC Configuration: Simplifies setup and configuration via NFC technology.
• LoRaWAN® Compatibility: Fully compliant with standard LoRaWAN® gateways and network servers for seamless integration.
• Real-time Monitoring: Enables immediate alerts and data collection for efficient waste management and parking solutions.

Specifications

• Detection Range: 3 cm to 450 cm
• Accuracy: ± (1 + 0.3% * S) cm, where S = distance
• Resolution: 1 mm
• Operating Temperature: -15°C to +60°C
• Relative Humidity: ≤ 90% (non-condensing)
• Ingress Protection Rating: IP67
• Dimensions: 111 x 62 x 40 mm
• Weight: 168 g
• Material: ABS, Black
