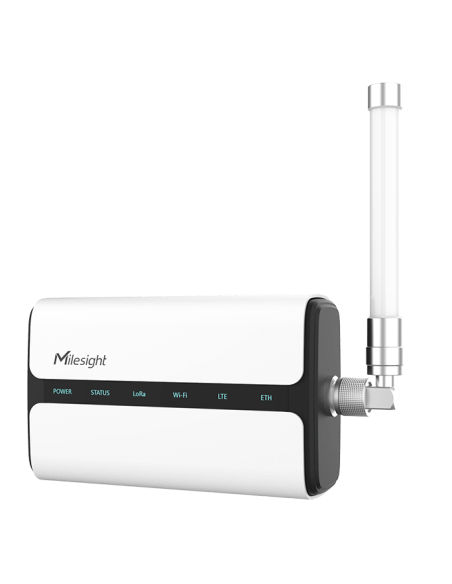

Milesight UG65 LoRaWAN Gateway - Helium Compatible

The Milesight UG65 is a robust 8-channel indoor LoRaWAN gateway designed for high-efficiency connectivity, compatible with Helium LongFi technology. It offers reliable connections with a line of sight of up to 15 km and can cover approximately 2 km in urban environments, supporting over 2000 nodes. Ideal for smart offices and various indoor applications, the UG65 also features a built-in network server and supports multiple mainstream network servers, making deployment seamless.

Features

• Helium LongFi Compatibility: Seamlessly integrates with Helium network for enhanced connectivity.
• High-Gain Antenna: Equipped with internal antennas and an optional external antenna for improved signal coverage.
• Ultra-low Power Consumption: Efficiently manages power while maintaining high performance.
• Advanced Security: Features an ATECC608 Crypto Chip for secure communications.
• Multi-Backhaul Connectivity: Supports Ethernet, Wi-Fi, and cellular connections for versatile deployment options.
• Built-in Network Server: Facilitates easy deployment with an integrated network server and compatibility with popular platforms like The Things Stack and ChirpStack.
• Remote Management: Simplifies device management through the Milesight IoT Cloud and DeviceHub.

Specifications

• CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
• Memory: 512 MB DDR4 RAM
• Flash: 8 GB eMMC
• LoRaWAN Channels: 8 (Half/Full-duplex)
• Frequency Bands: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
• Sensitivity: -140 dBm @ 292 bps
• Output Power: 27 dBm Max
• Ethernet Port: 1 × RJ45 (PoE PD supported)
• Wi-Fi Standards: IEEE 802.11 b/g/n, 2.4 GHz
• Operating Temperature: -40°C to +70°C
• Ingress Protection: IP65
• Dimensions: 180 x 110 x 56.5 mm
• Weight: 0.5 kg
