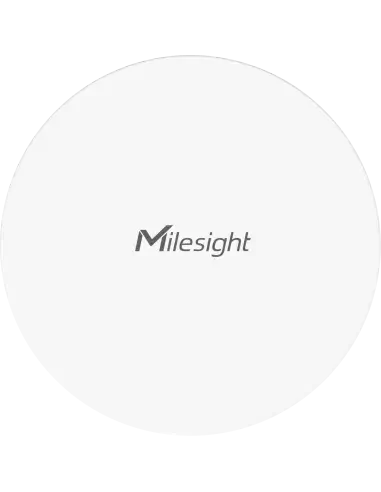

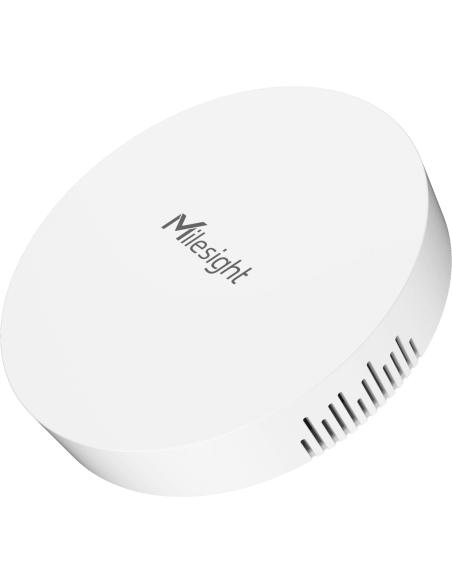

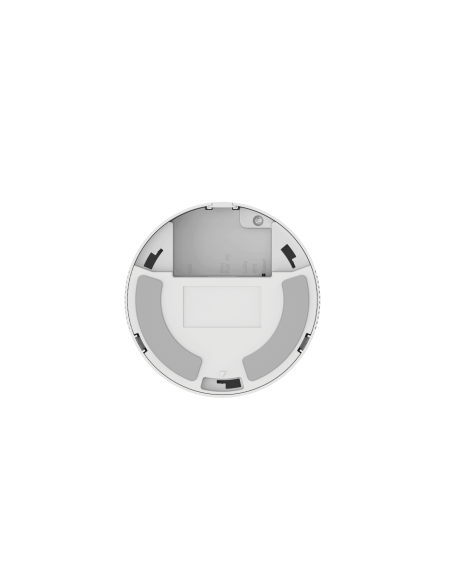

Milesight UG63 LoRaWAN Gateway

The Milesight UG63 LoRaWAN Gateway is a compact and powerful solution designed for indoor applications. It provides robust connectivity with support for up to 2000 end nodes and a communication range of up to 2 km in urban areas, making it ideal for smart offices, parking lots, hotels, and other indoor environments. With its user-friendly configuration and compatibility with major network servers, the UG63 simplifies the deployment of IoT applications.

Features

• High Performance: Equipped with a dual-core 240MHz CPU and 8MB PSRAM, ensuring efficient processing and connectivity.
• Wide Coverage: Supports up to 2000 end nodes with a communication range of up to 2 km in urban settings.
• Multiple Connectivity Options: Offers Ethernet and optional 4G LTE connectivity for versatile deployment.
• Easy Configuration: Wi-Fi configuration capability simplifies setup without requiring physical proximity.
• Remote Management: Integrates with Milesight DeviceHub for centralized management and monitoring of devices.
• Robust Security: Supports various VPN protocols including IPsec and OpenVPN for secure communications.
• Compact Design: Small footprint allows for desktop, wall, or ceiling mounting.

Specifications

• Model: UG63-868M
• Frequency Bands: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
• Sensitivity: -140dBm @ 292bps
• Output Power: 27dBm Max
• Ethernet Port: 1 × RJ-45 (PoE supported)
• Power Supply: 5V by Type-C Port or PoE
• Power Consumption: Max 3.1 W
• Ingress Protection: IP30
• Operating Temperature: -20°C to +50°C
• Dimensions: Ф115 x 21 mm
• Weight: 0.3 kg
