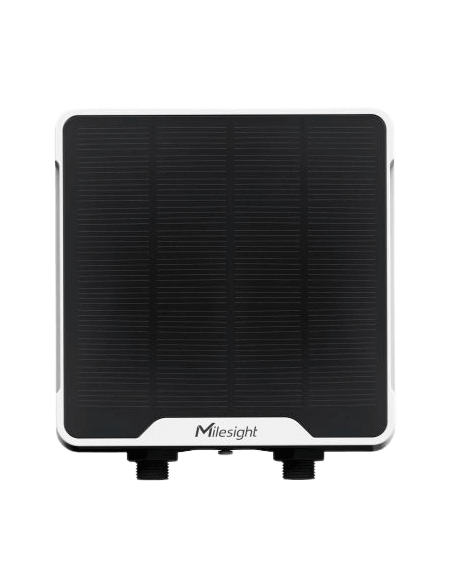

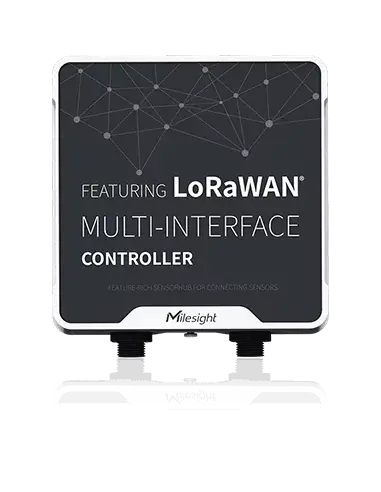

Milesight UC502 Controller - Non-LTE

The Milesight UC502 Controller is a versatile and robust solution designed for IoT applications. It features multiple interfaces, including GPIO, RS232/RS485, and SDI-12, making it ideal for environmental monitoring and data acquisition. This controller ensures reliable communication and data integrity in various applications, including agriculture and smart building environments.

Features

• Multi-Interface Connectivity: Equipped with 2x GPIO interfaces, 1 RS232/RS485 (switchable) interface, and 2x analog inputs for versatile connectivity.
• Internal Antenna: Comes with a built-in antenna for enhanced signal reception.
• Robust Design: IP67 rated enclosure provides protection against dust and water ingress, suitable for harsh environments.
• Data Threshold Reporting: Enables timely alerts and notifications when sensor readings exceed set thresholds.
• Flexible Power Options: Supports multiple power supply options, ensuring adaptability to different installation scenarios.
• Easy Configuration: Configuration can be done via NFC for quick and user-friendly setup.
• Data Storage: Capable of storing up to 10,000 sets of historical data records for reliable data management.
• Compatible with LoRaWAN®: Supports LoRaWAN® technology for long-range communication, making it ideal for remote monitoring.

Specifications

• Frequency: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
• Tx Power: 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz)
• Sensitivity: -137dBm @300bps
• Operating Temperature: -20°C to 60°C
• Dimensions: 116 × 116 × 45.5 mm
• Ingress Protection: IP67
• Power Output: 2x 3.3V, 2x 5/9/12V (switchable)
• Weight: 0.5 kg
