Milesight UC100 Controller - Non-LTE

The Milesight UC100 Controller is an advanced IoT controller designed for remote control and data acquisition from Modbus RS485 devices via LoRaWAN® networks. It bridges the gap between traditional Modbus devices and the modern IoT ecosystem, enabling efficient data management and automation.

Features

• Modbus to LoRaWAN® Conversion: Connects up to 32 Modbus RTU devices and supports Modbus transparent transmission.
• Intelligent Trigger System: Allows users to set up to 16 commands based on custom trigger conditions (If-Then Statements) for automated operations.
• Autonomous Operation: Executes commands even when the network is unavailable, ensuring continuous functionality.
• Easy Configuration: Local configuration via USB Type-C and remote configuration through LoRa downlink.
• Milesight D2D Communication: Enables communication among different Milesight LoRaWAN node devices without requiring a LoRaWAN® gateway.

Specifications

• Power Supply: 5-24 VDC by Terminal Block or 5 VDC by Type-C Port
• Power Consumption: < 0.5 W
• Operating Temperature: -20°C to 60°C
• Ingress Protection: IP30

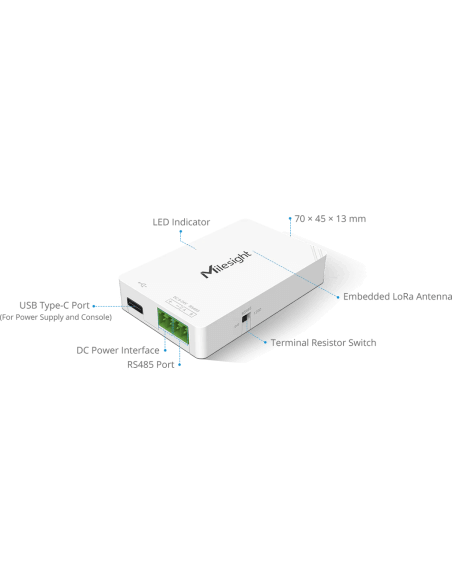

• Dimensions: 70 × 45 × 13 mm
• Weight: 0.1 kg
• RS485 Baud Rate: 1200-115200 bps
• LoRaWAN Frequency: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
