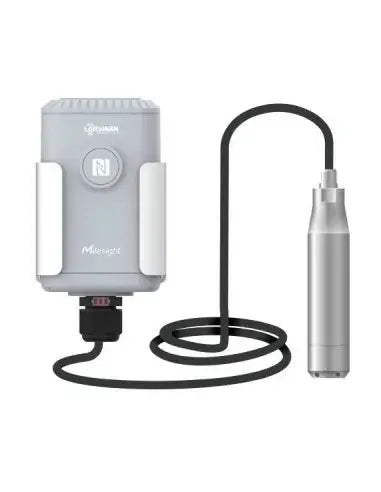

Milesight Submersible Water Level Sensor

The Milesight EM500-SWL is a highly accurate submersible water level sensor designed for measuring liquid levels in harsh environments. With its robust construction and advanced technology, it ensures reliable performance for various applications including tank monitoring and water resource management.

Features

• Customizable Measurement Range: Capable of measuring up to 200m for various non-corrosive liquids.
• Impressive IP67 Rated Waterproof Performance: Designed to function effectively in harsh environments and withstand extreme weather conditions.
• LoRaWAN® Wireless Deployment: Facilitates easy wireless installation and data transmission over long distances.
• Long Battery Life: Operates efficiently for up to 10 years with a 19000 mAh power supply.
• Easy Configuration: Supports NFC technology for straightforward setup via mobile devices.
• Versatile Installation Options: Can be mounted on poles, walls, or DIN rails to suit various installation needs.

Specifications

• Wireless Transmission Technology: LoRaWAN®
• Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
• Tx Power: 16dBm (868)/20dBm (915)/19dBm (470)
• Sensitivity: -137dBm @ 300bps
• Measurement Pressure Type: Gauge Pressure
• Measurement Range: 0 ~ 3m/5m/10m (H2O), customizable up to 200m
• Accuracy: ±0.5% FS
• Resolution: 0.01m
• Operating Temperature: -30°C to +70°C (Transceiver)/-10°C to +70°C (Level Sensor)
• Ingress Protection: IP67 (Transceiver)/IP68 (Level Sensor)
• Dimensions: Transceiver: 105.4 × 71 × 69.5 mm, Level Sensor: 140 × ф28 mm
